Test 5: Positive Crankcase Ventilation (PCV) System

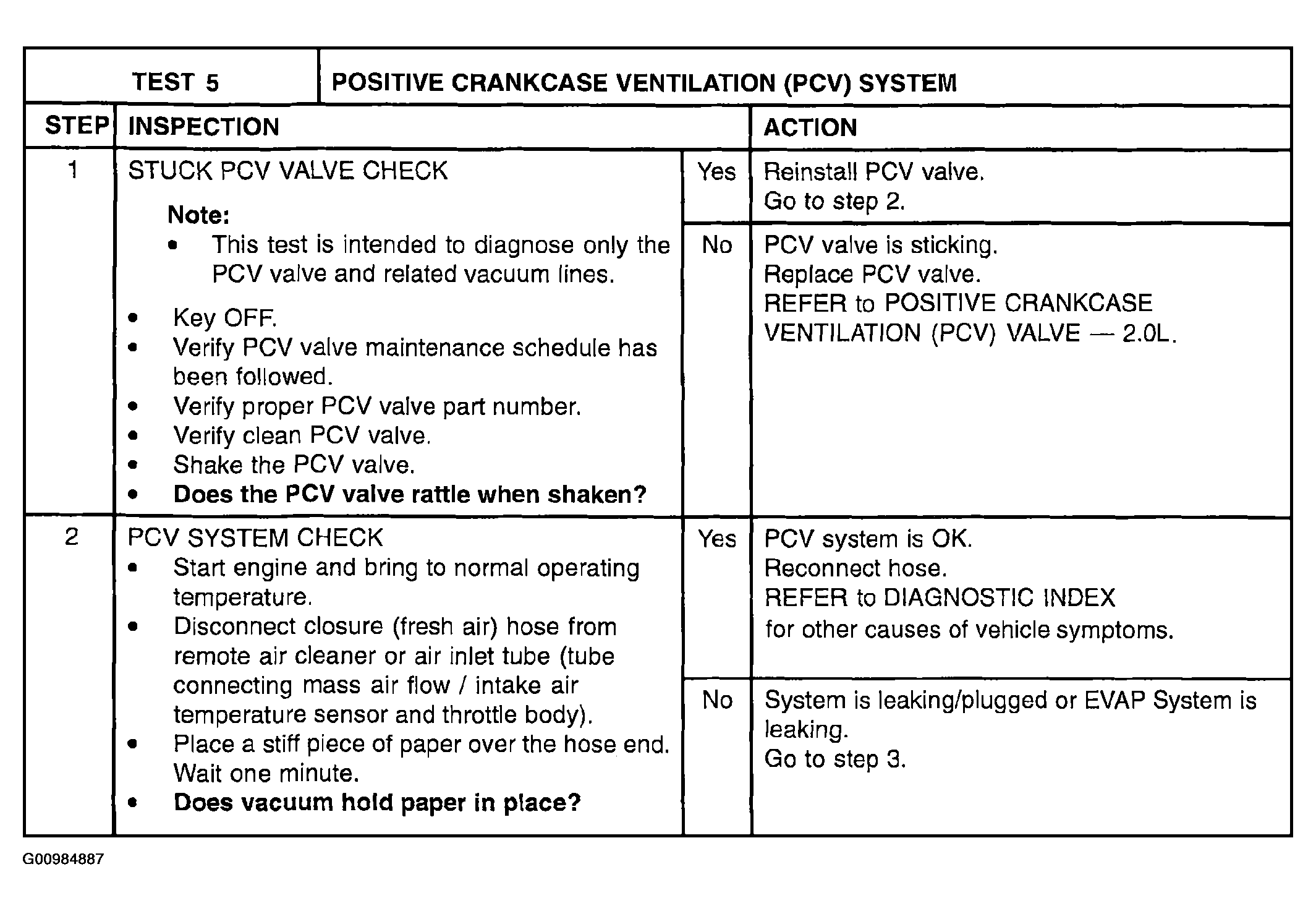

Fig 1: Test 5: Positive Crankcase Ventilation (PCV) System: Inspection (Steps 1-2)
G00984887Courtesy of MAZDA MOTORS CORP.

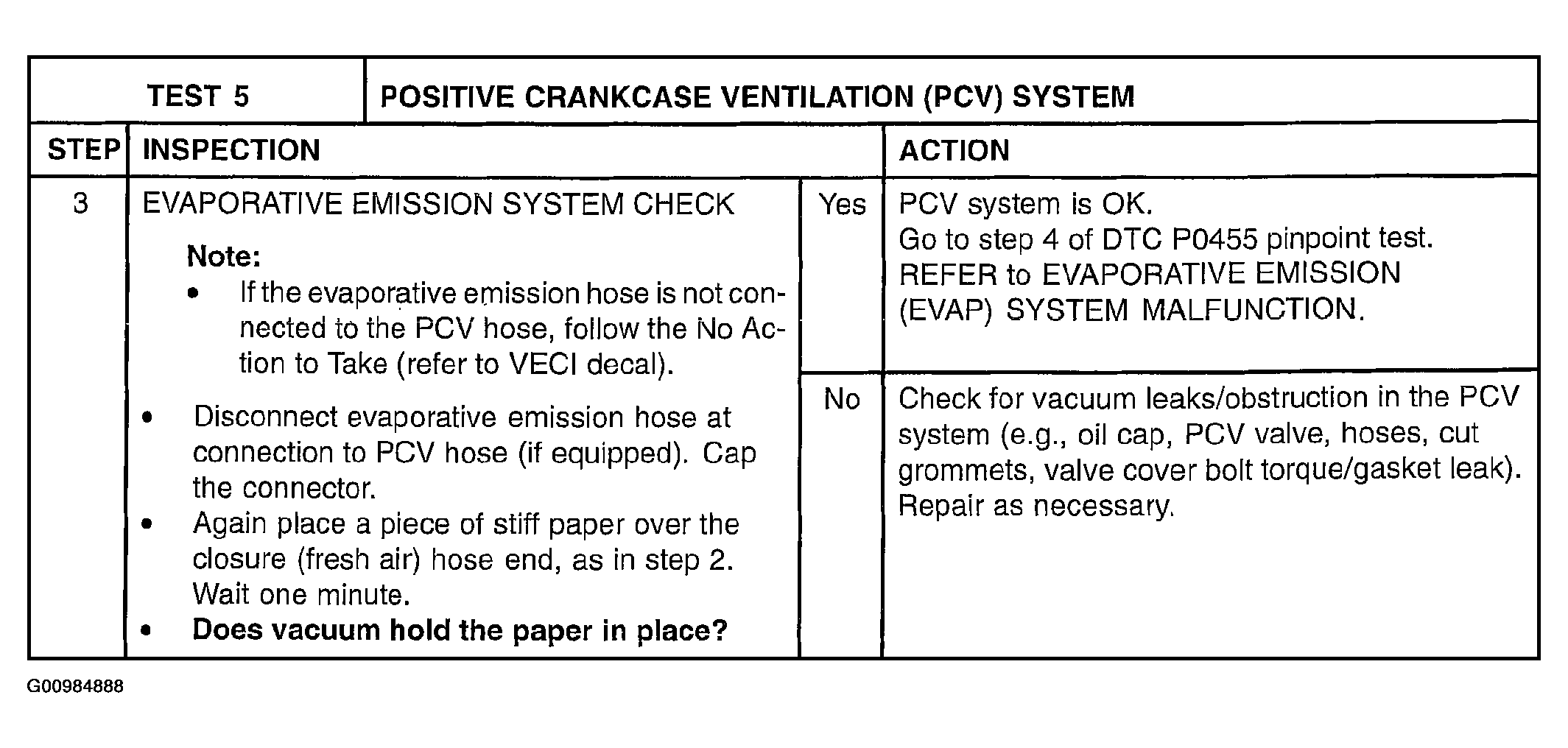

Fig 2: Test 5: Positive Crankcase Ventilation (PCV) System: Inspection (Step 3)
G00984888Courtesy of MAZDA MOTORS CORP.
