Removal and Installation

  1. Remove the air cleaner outlet tube. Refer to AIR CLEANER INTAKE PIPE -- 2.0L ZETEC .
  2. Disconnect the idle air control (IAC) valve electrical connector.

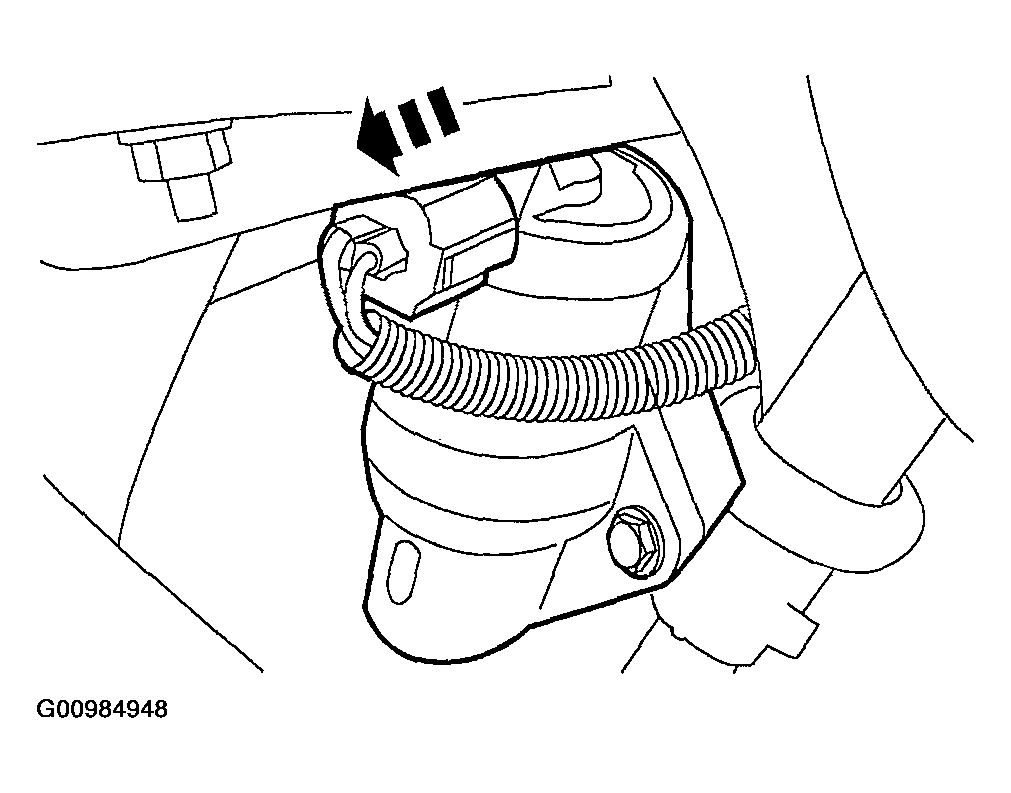

    Fig 1: Disconnecting IAC Valve Electrical Connector
    G00984948Courtesy of MAZDA MOTORS CORP.
  3. Remove the two bolts and the IAC valve.
    1. Discard the gasket.

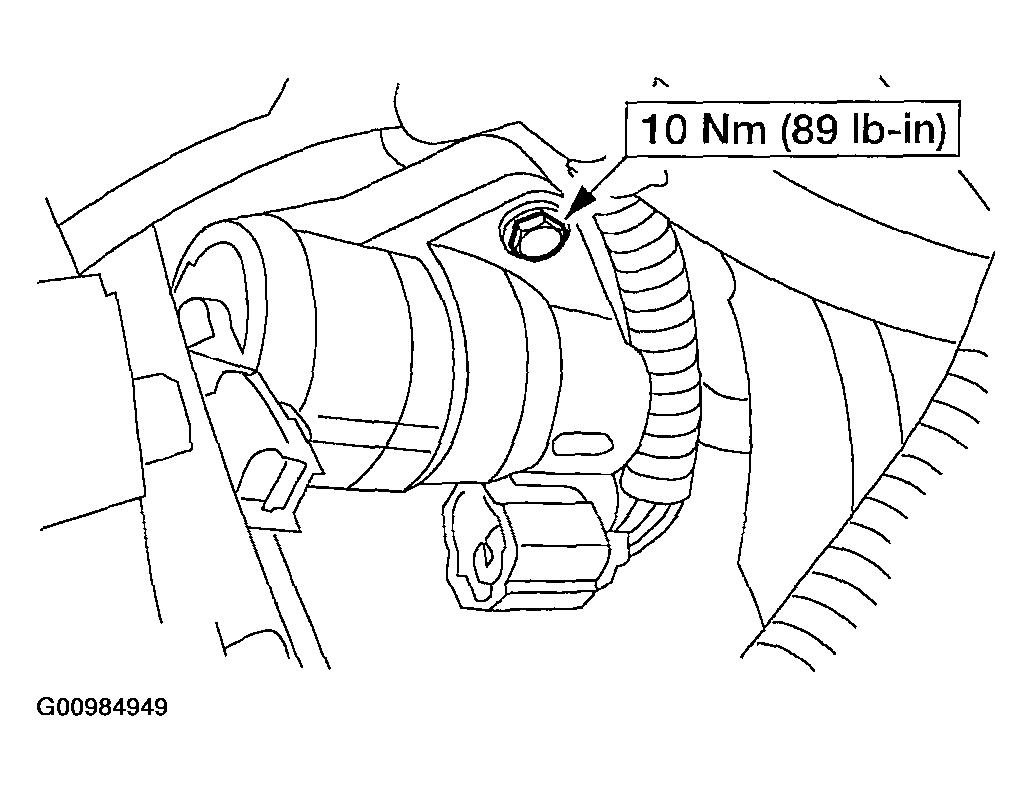

    Fig 2: Identifying IAC Valve Bolts
    G00984949Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
    1. Install a new gasket.
