Reference: Clutch/Band Application Chart No. 601

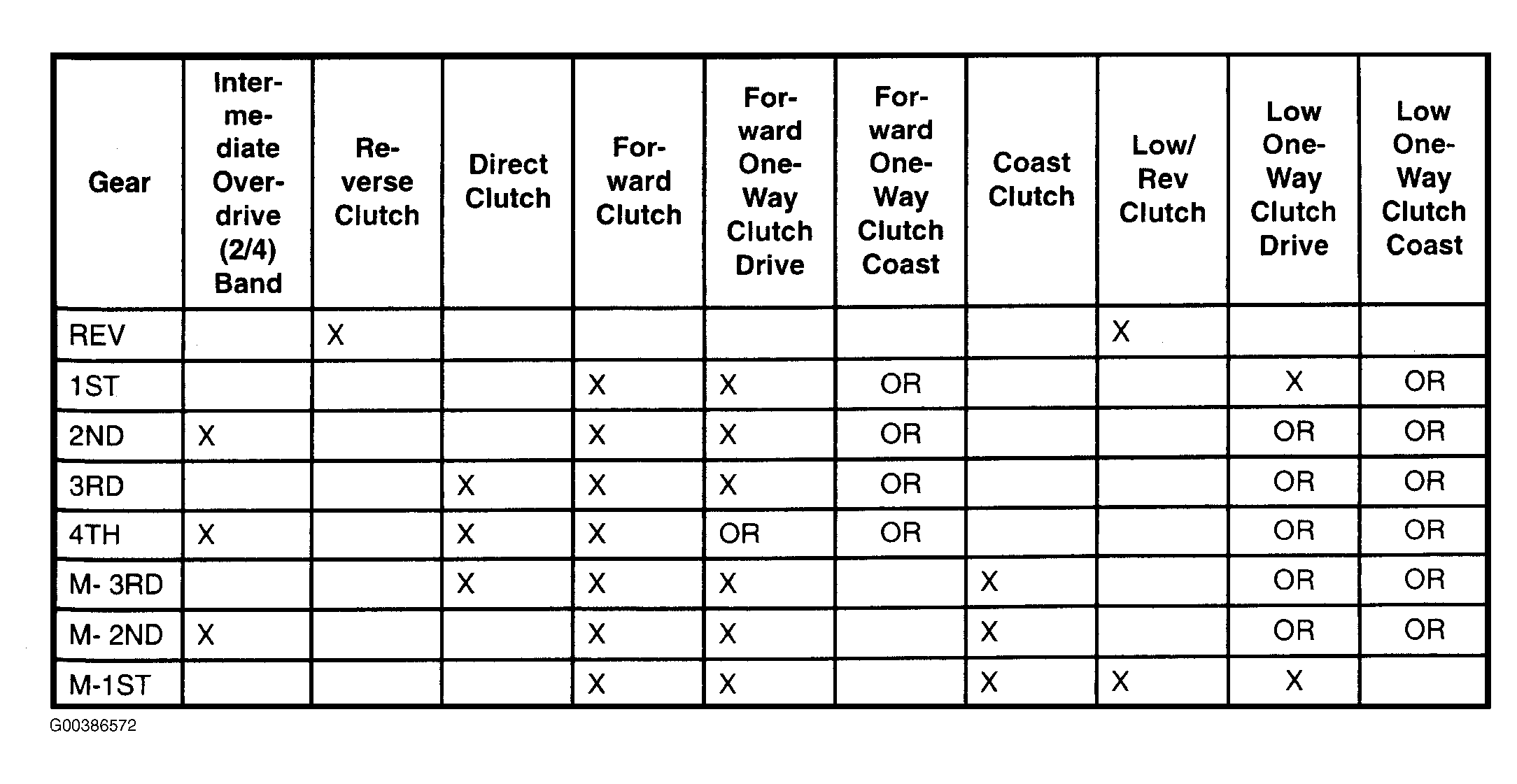

Fig 1: Clutch/Band Application Chart No. 601
G00386572Courtesy of MAZDA MOTORS CORP.
