Removal and Installation

Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL .

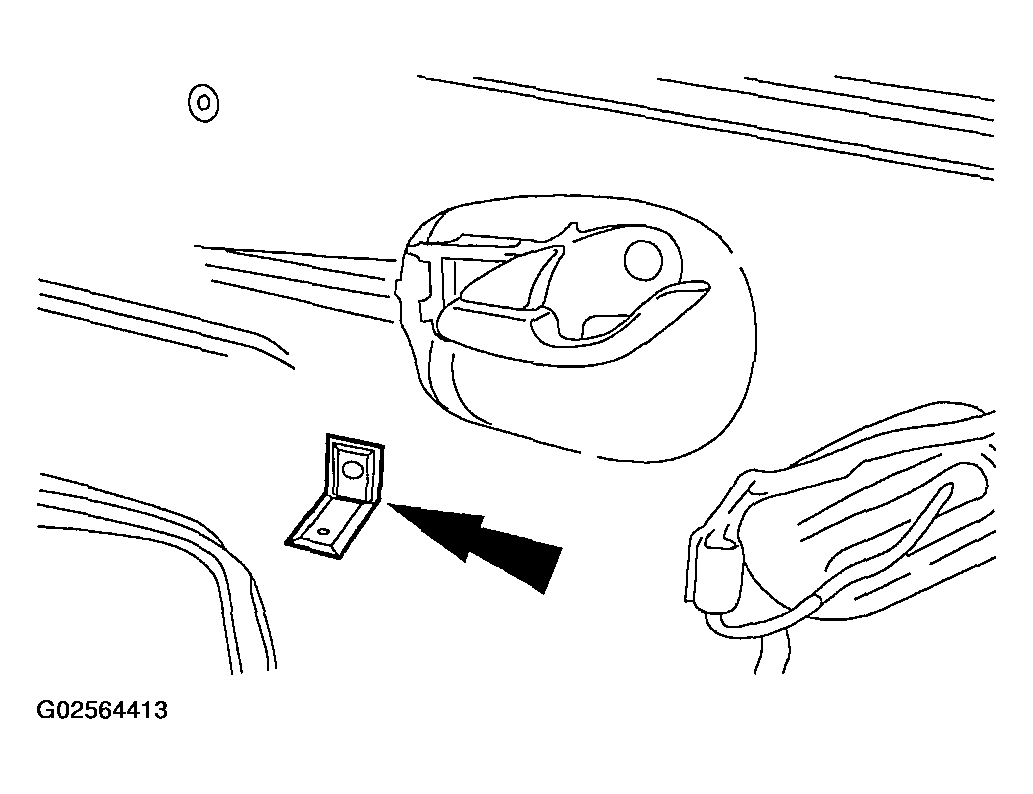

Fig 1: Removing Door Trim Panel Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the screw and the door trim panel bracket.
Position the water shield aside.

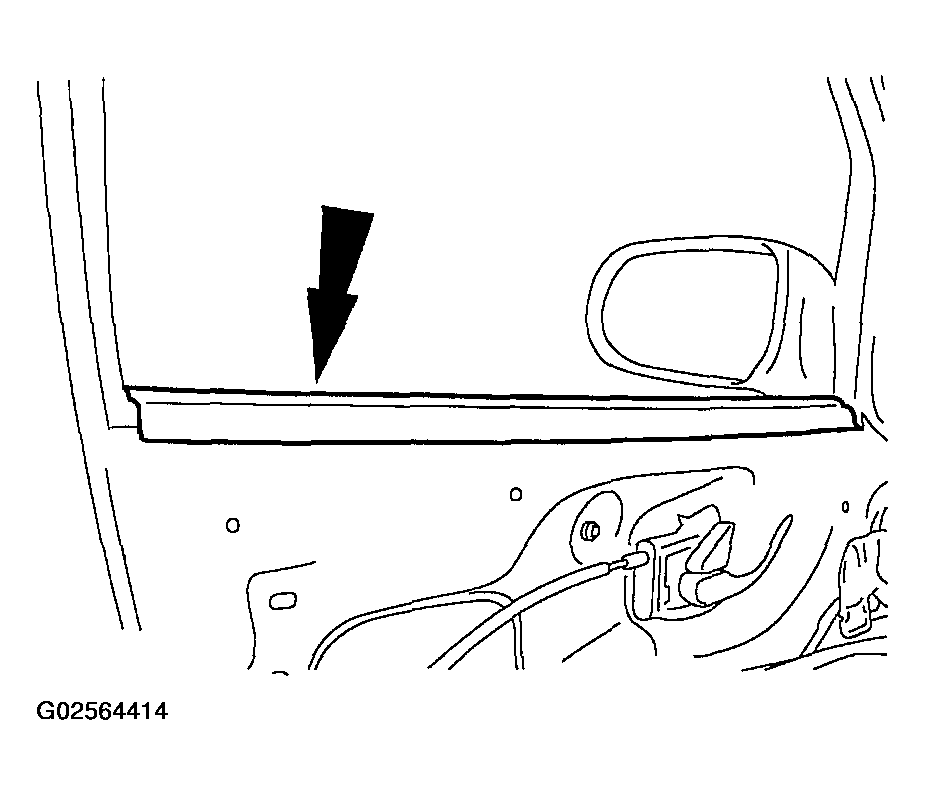

Fig 2: Removing Front Door Interior Glass Weatherstrip
Courtesy of MAZDA MOTORS CORP.
Remove the front door interior glass weatherstrip.
Vehicles with power windows
Connect the window control switch to the door harness.
Connect the battery. Refer to BATTERY DISCONNECT .
Lower the front door window glass to gain access to the screws.

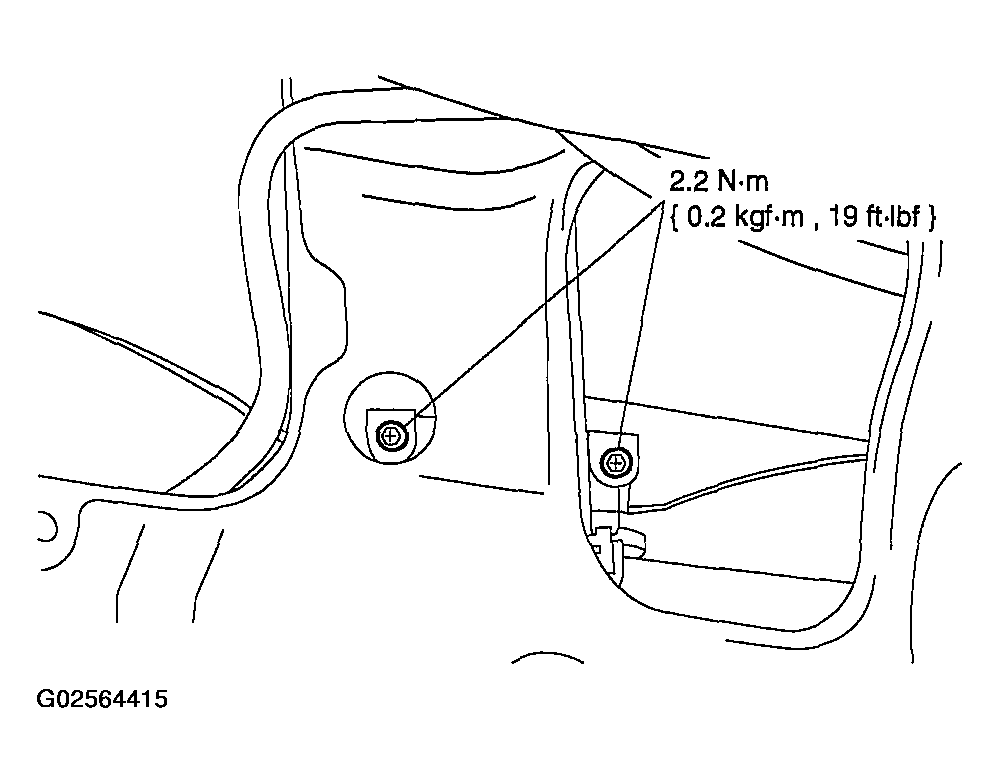

Fig 3: Removing Front Door Window Glass Screws
Courtesy of MAZDA MOTORS CORP.
Remove the front door window glass screws.

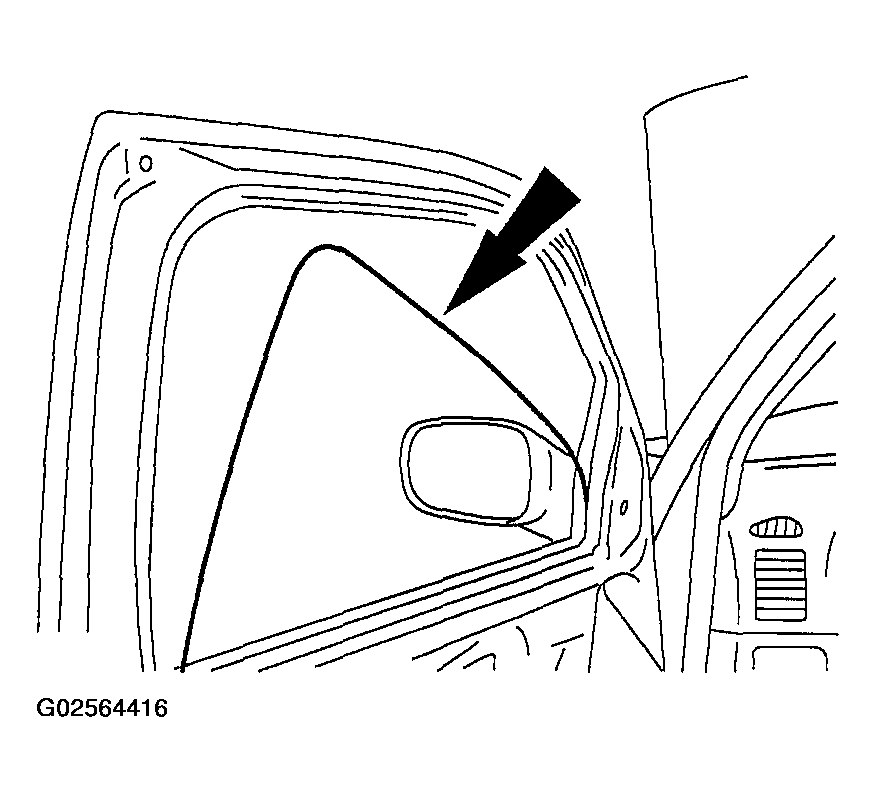

Fig 4: Removing Front Door Window Glass
Courtesy of MAZDA MOTORS CORP.
Remove the front door window glass.
To install, reverse the removal procedure.
