Special Tools

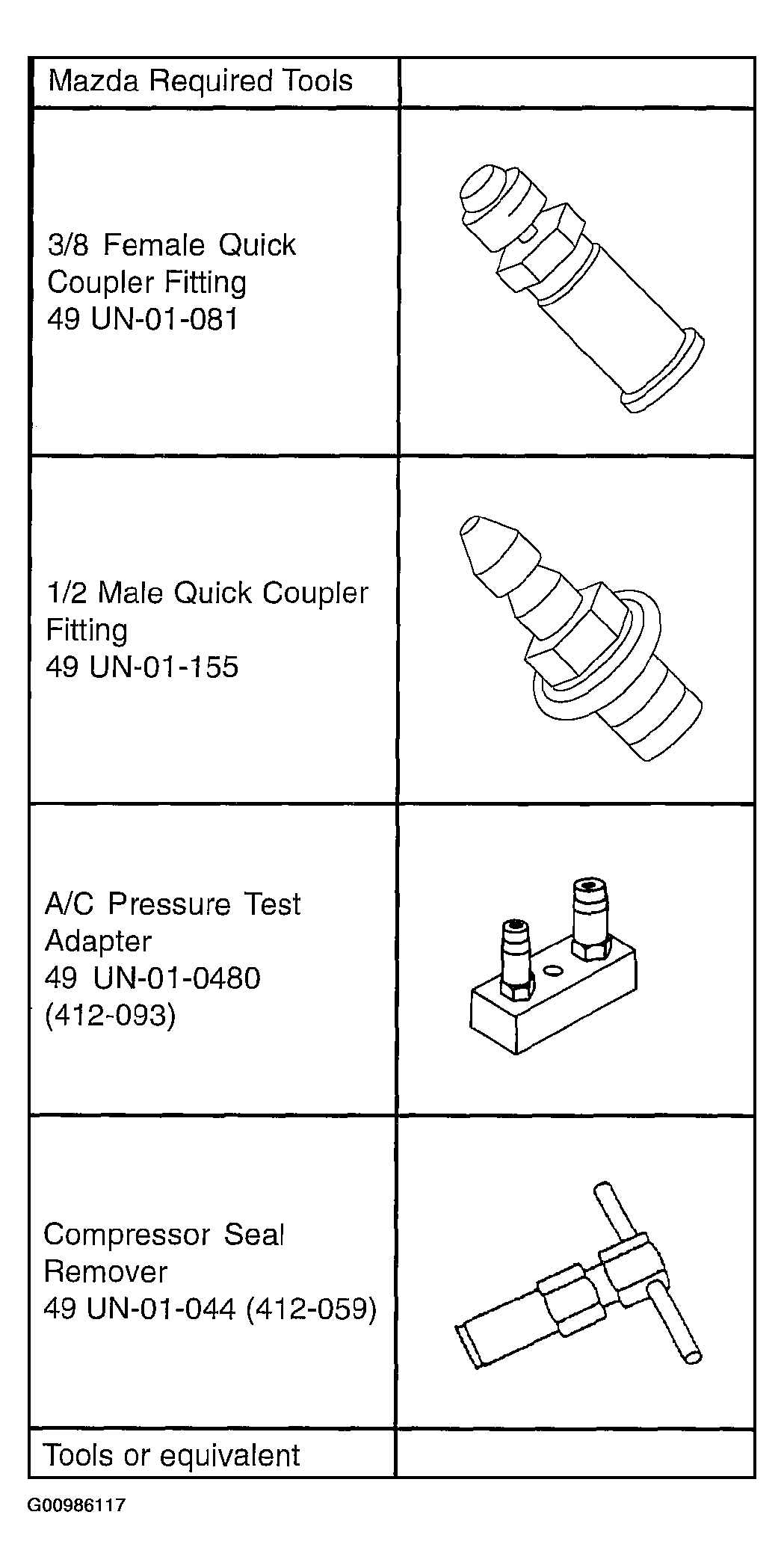

Fig 1: Identifying Special Tools (1 Of 7)

G00986117

Courtesy of MAZDA MOTORS CORP.

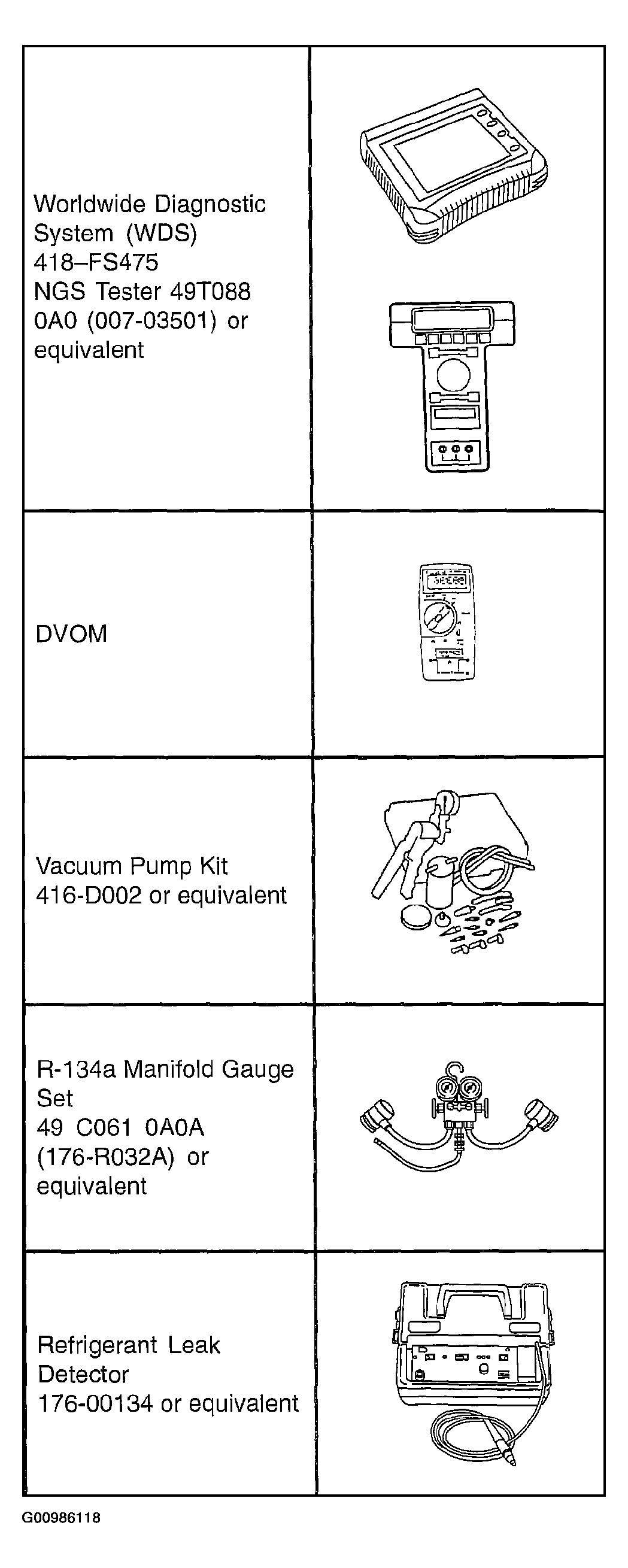

Fig 2: Identifying Special Tools (2 Of 7)

G00986118

Courtesy of MAZDA MOTORS CORP.

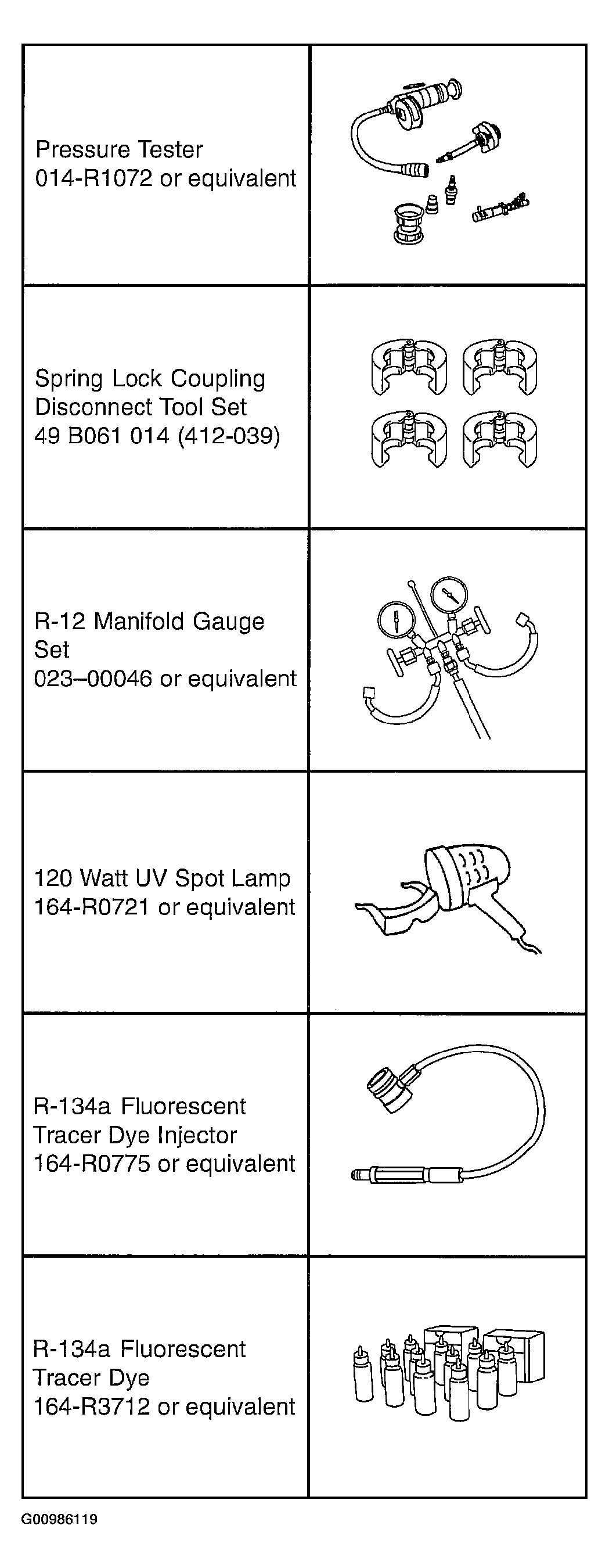

Fig 3: Identifying Special Tools (3 Of 7)

G00986119

Courtesy of MAZDA MOTORS CORP.

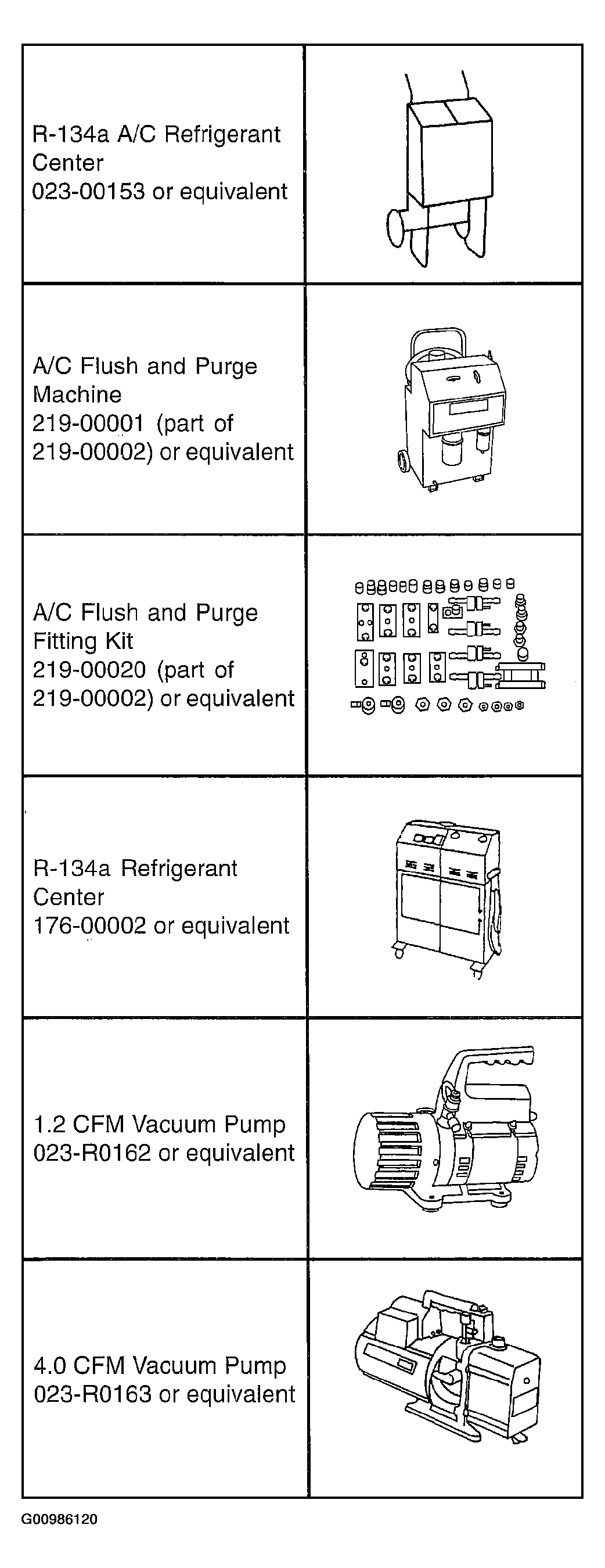

Fig 4: Identifying Special Tools (4 Of 7)

G00986120

Courtesy of MAZDA MOTORS CORP.

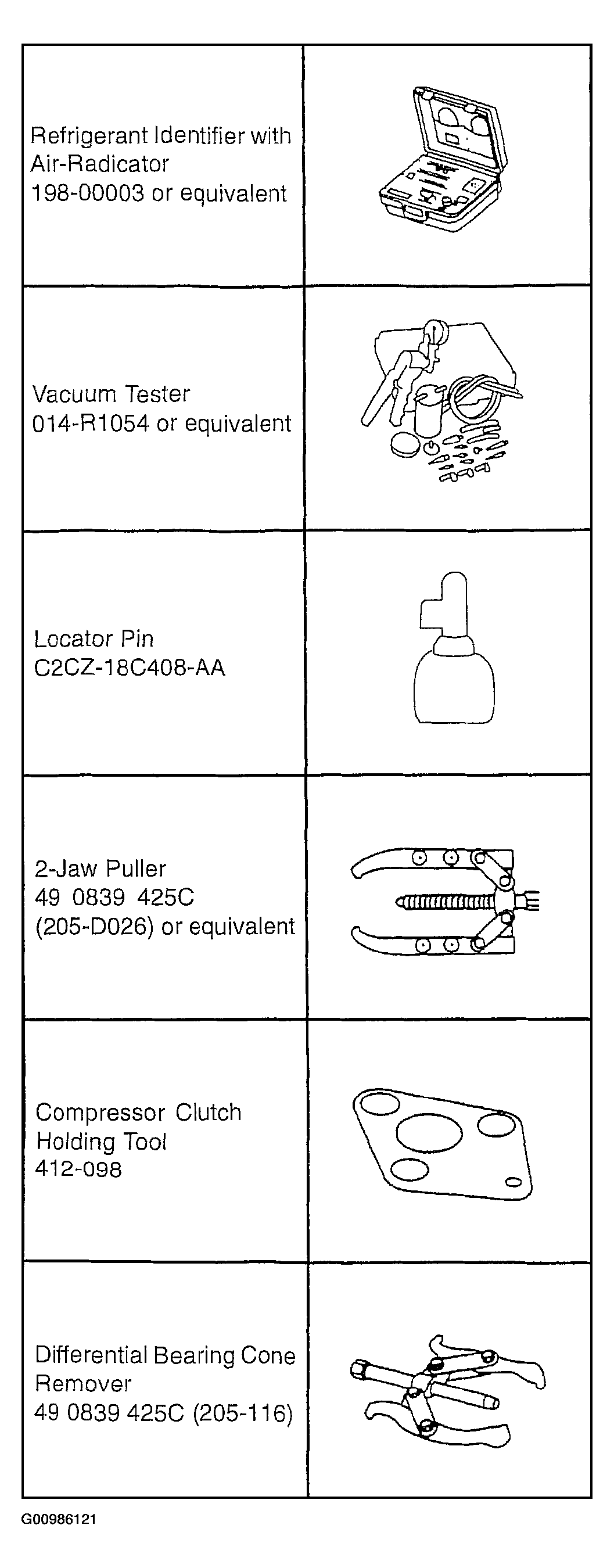

Fig 5: Identifying Special Tools (5 Of 7)

G00986121

Courtesy of MAZDA MOTORS CORP.

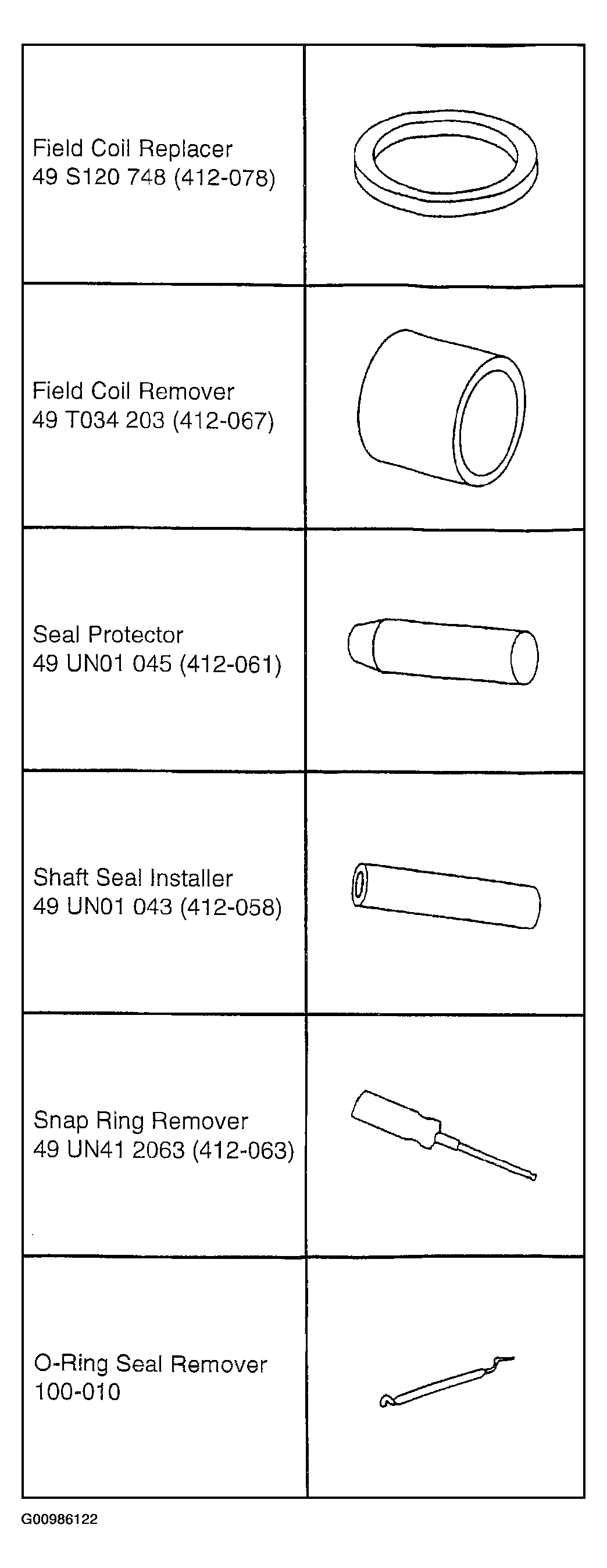

Fig 6: Identifying Special Tools (6 Of 7)

G00986122

Courtesy of MAZDA MOTORS CORP.

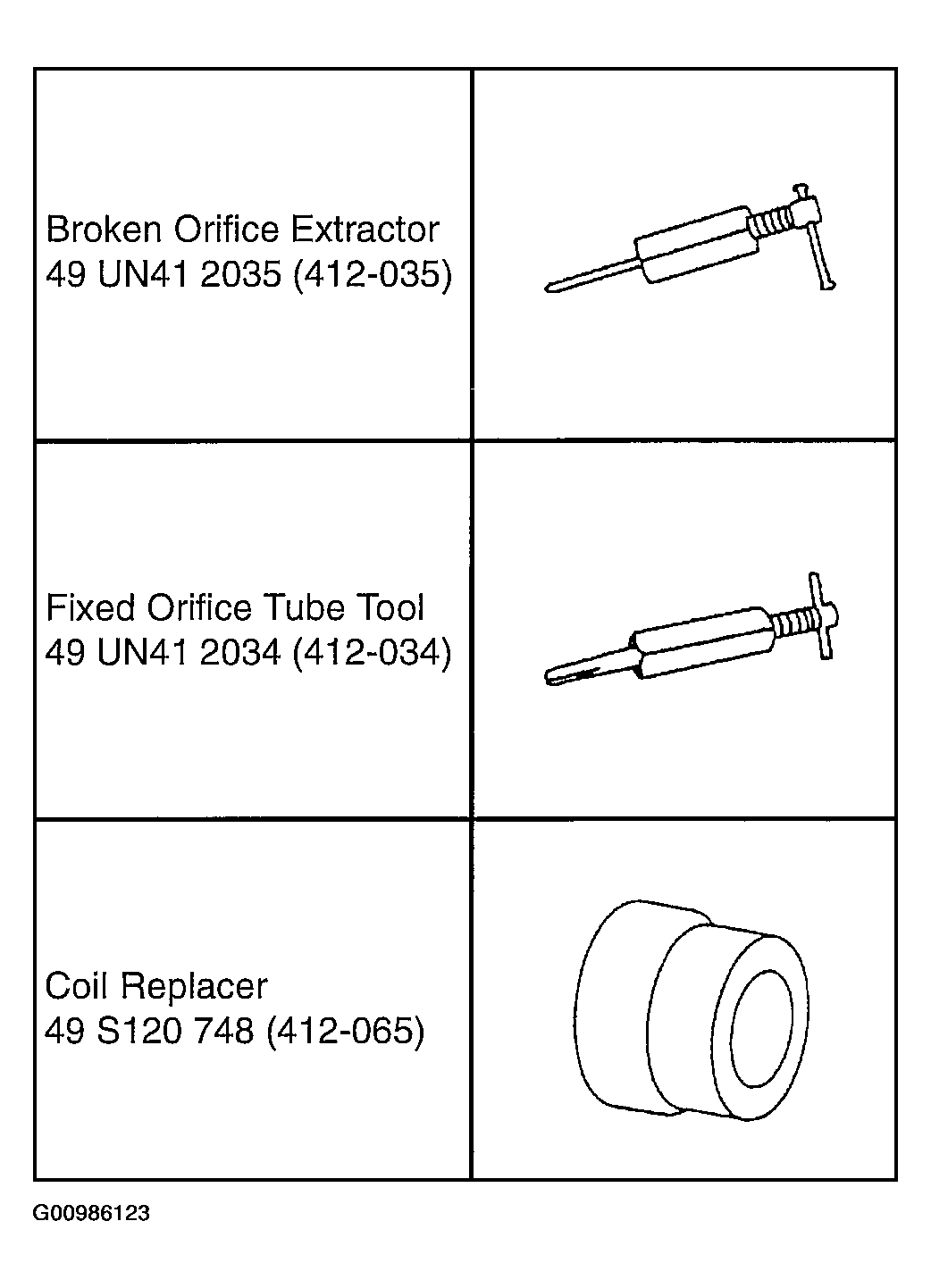

Fig 7: Identifying Special Tools (7 Of 7)

G00986123

Courtesy of MAZDA MOTORS CORP.
