Removal & Installation

  1. Remove the vacuum control motor.
    1. Disconnect the vacuum line.
    2. Remove the two screws.
    3. Disconnect the vacuum control motor from the door lever.

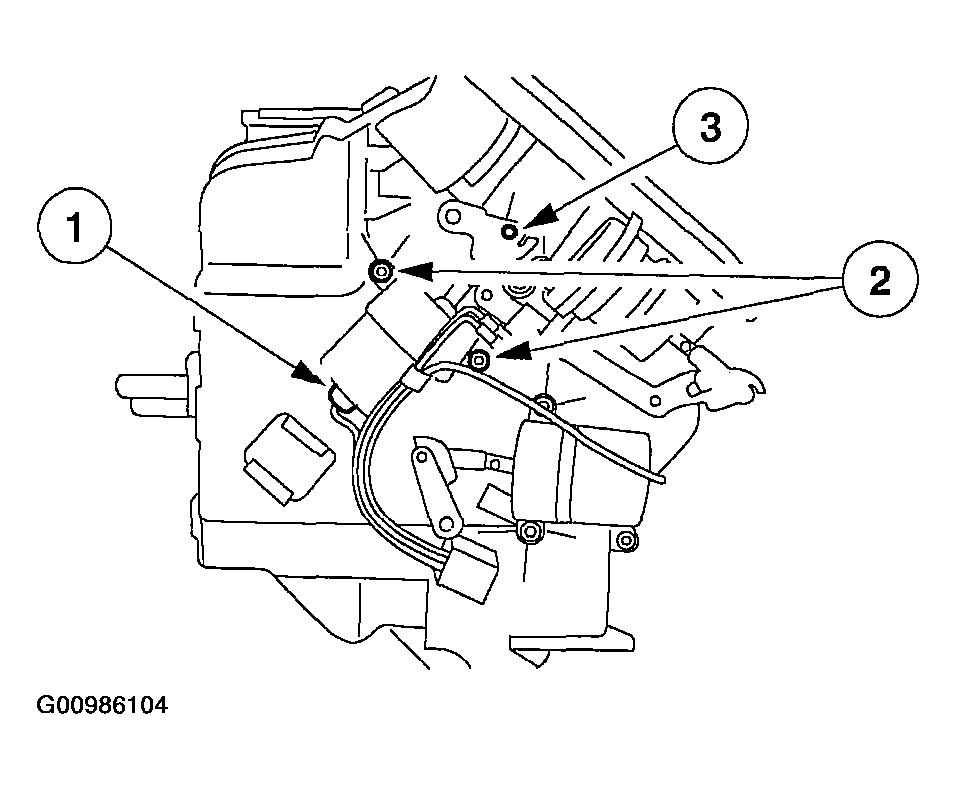

      4. Fig 1: Identifying Vacuum Line, Screws & Defrost Vacuum Control Motor
      G00986104Courtesy of MAZDA MOTORS CORP.
  2. To install, reverse the removal procedure.
