Emission Compliance

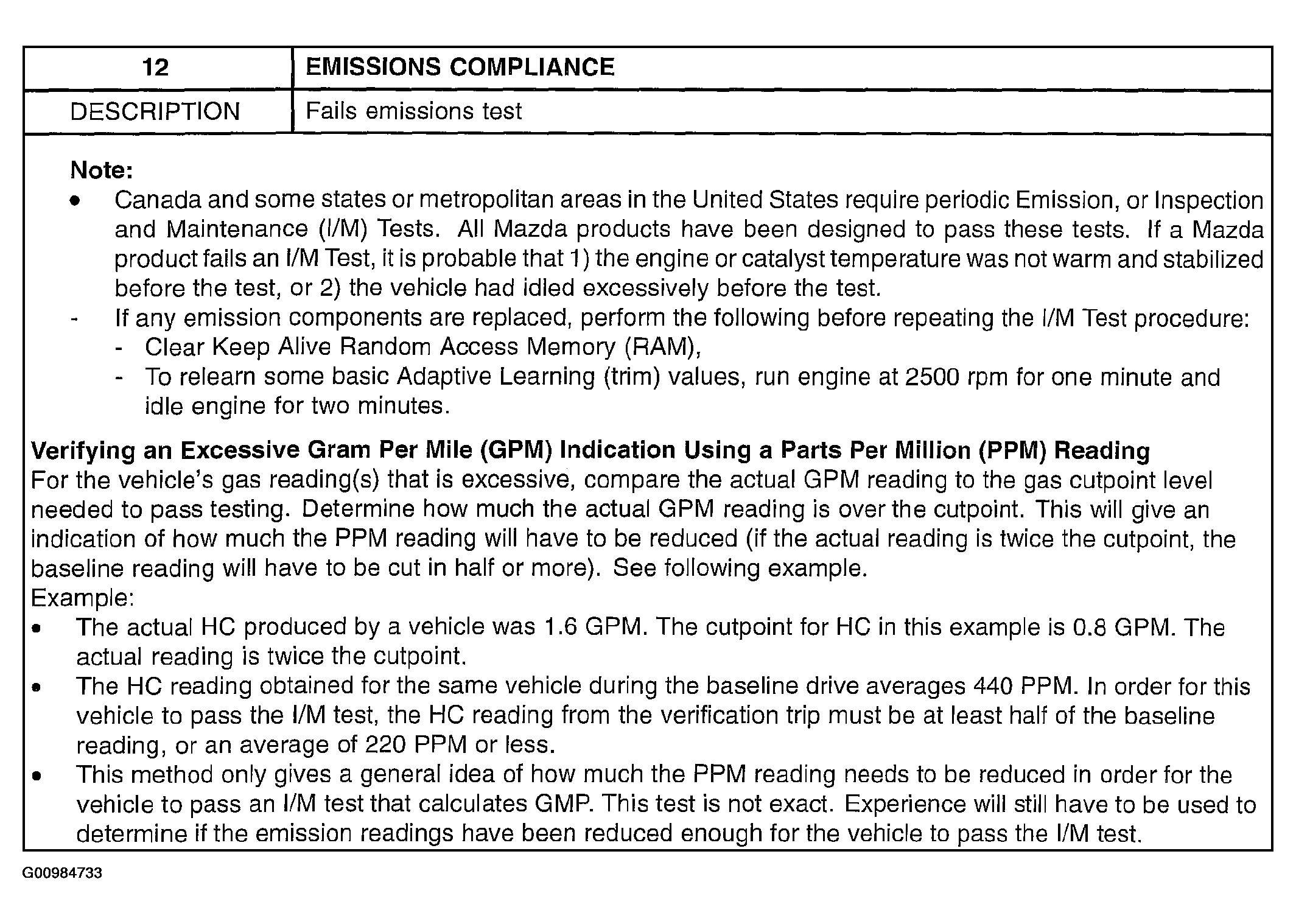

Fig 1: Chart 12 Emission Compliance: Description

Courtesy of MAZDA MOTORS CORP.

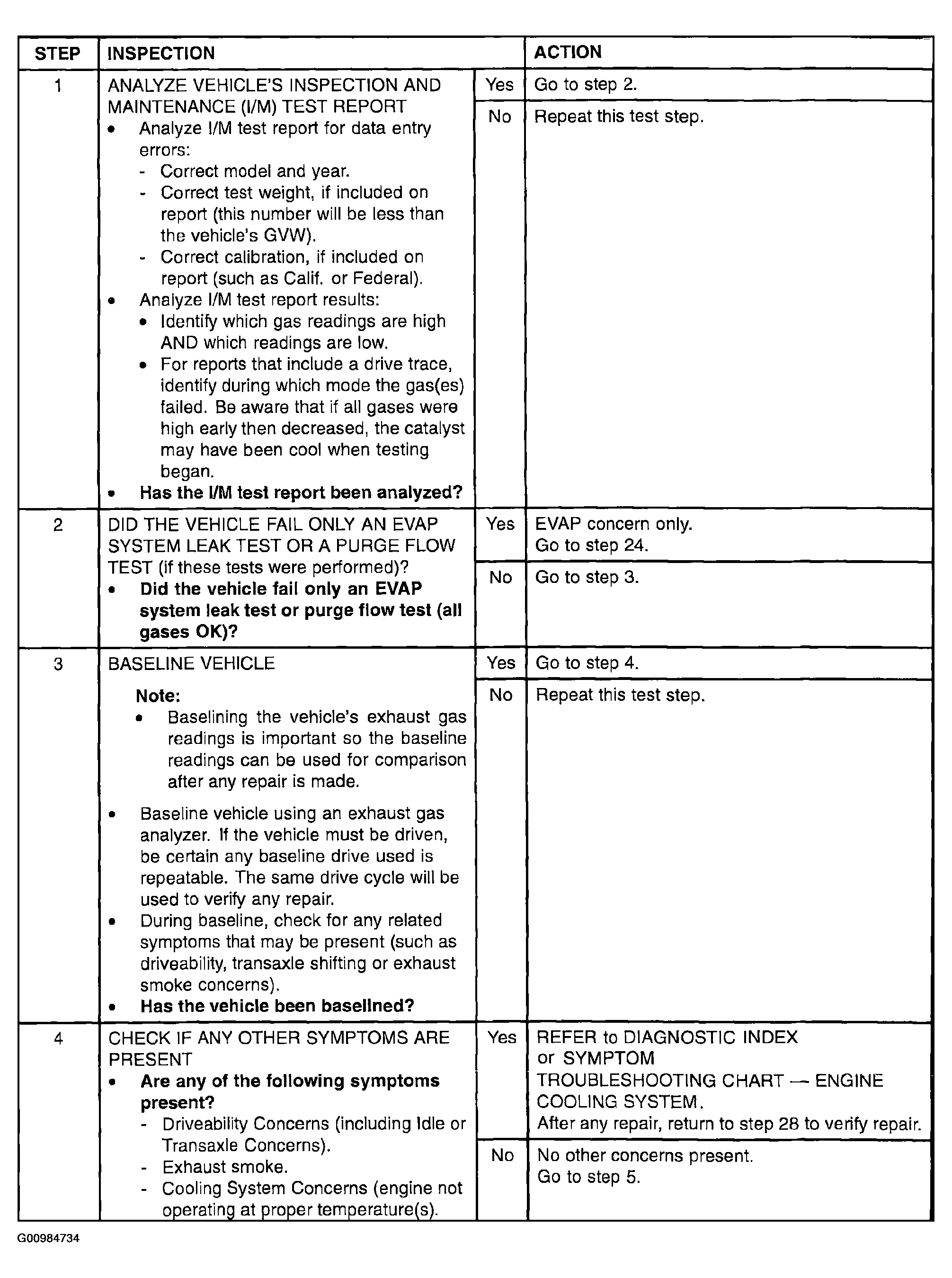

Fig 2: Chart 12 Emission Compliance: Inspection (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

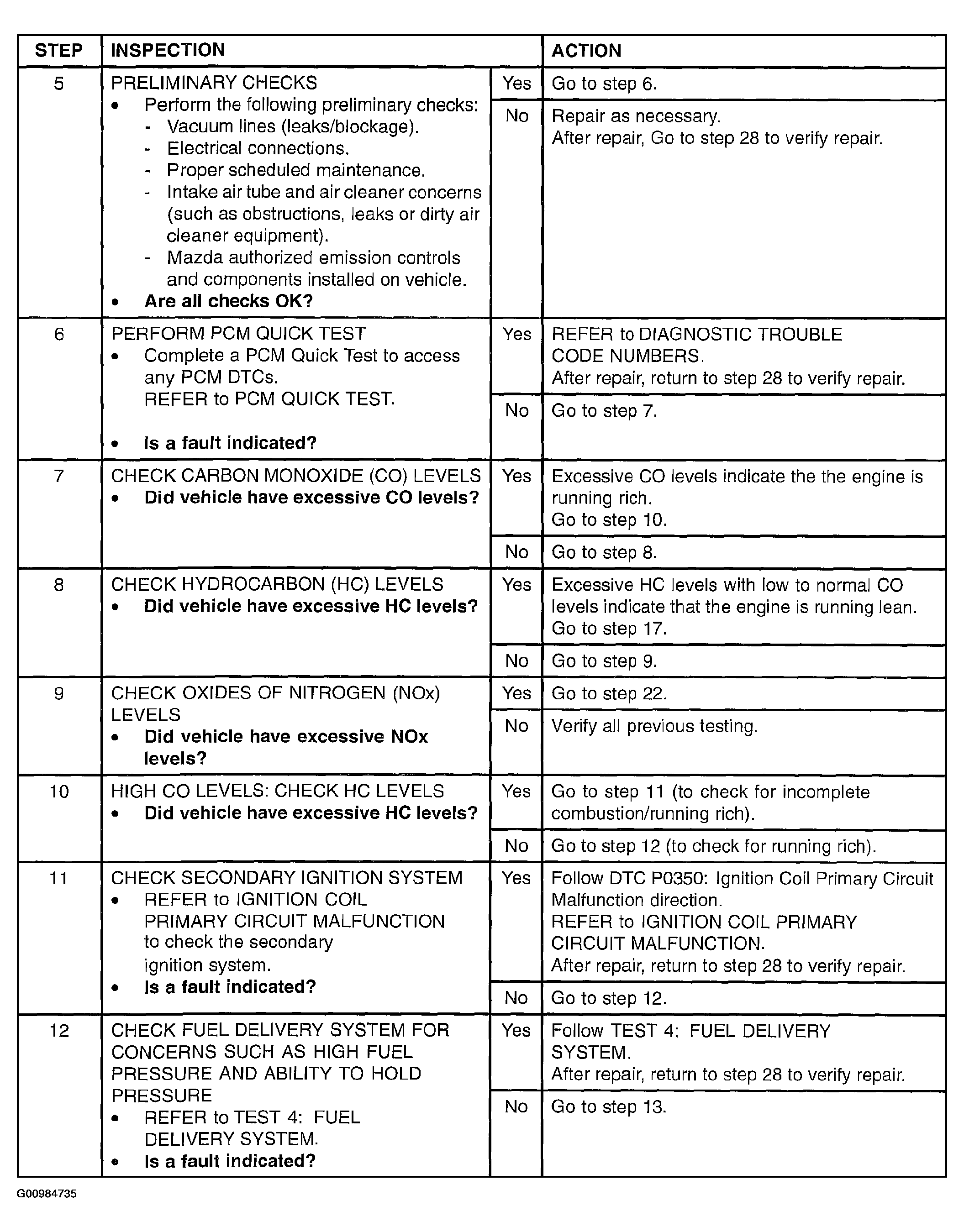

Fig 3: Chart 12 Emission Compliance: Inspection (Steps 5-12)

Courtesy of MAZDA MOTORS CORP.

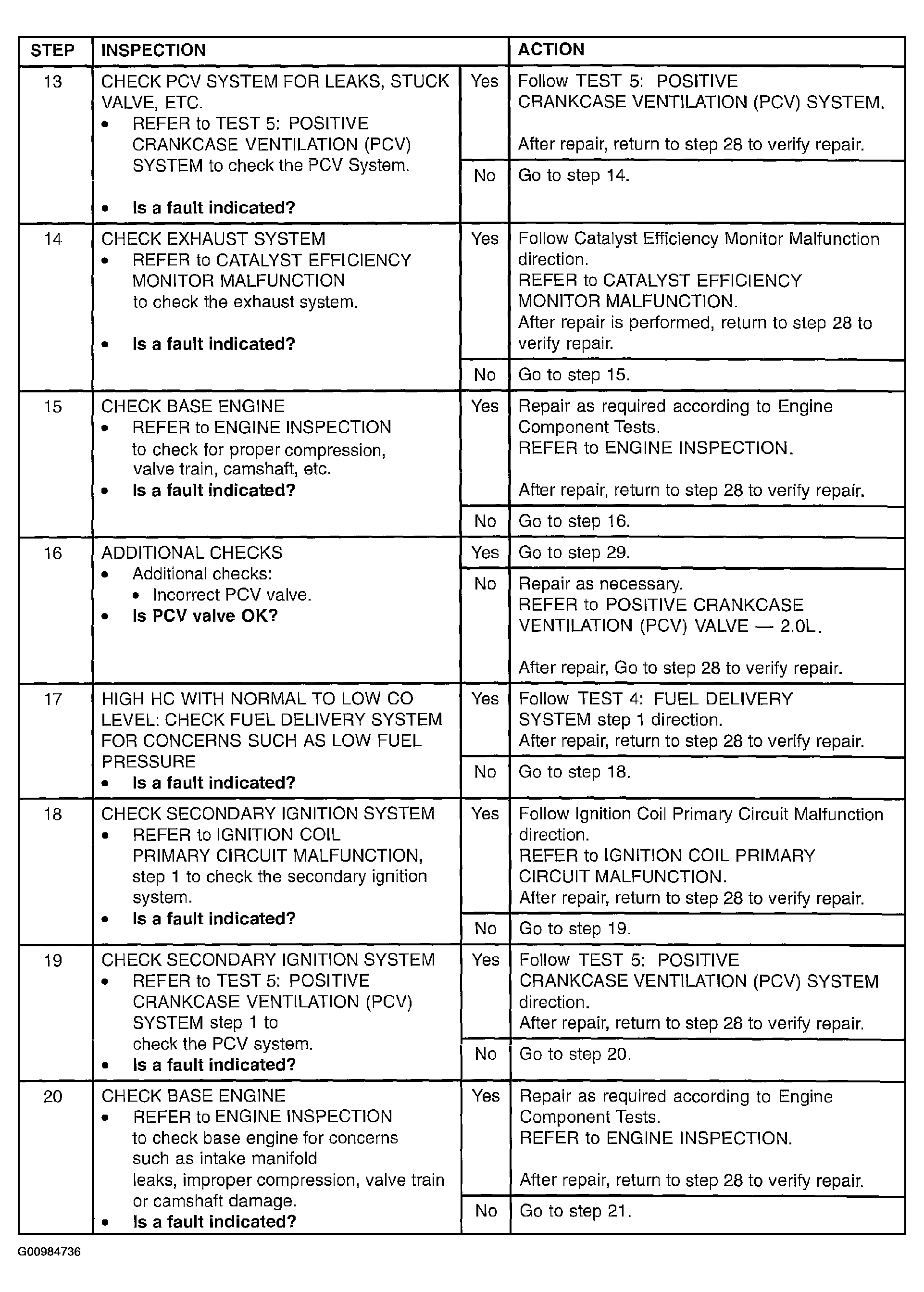

Fig 4: Chart 12 Emission Compliance: Inspection (Steps 13-20

Courtesy of MAZDA MOTORS CORP.

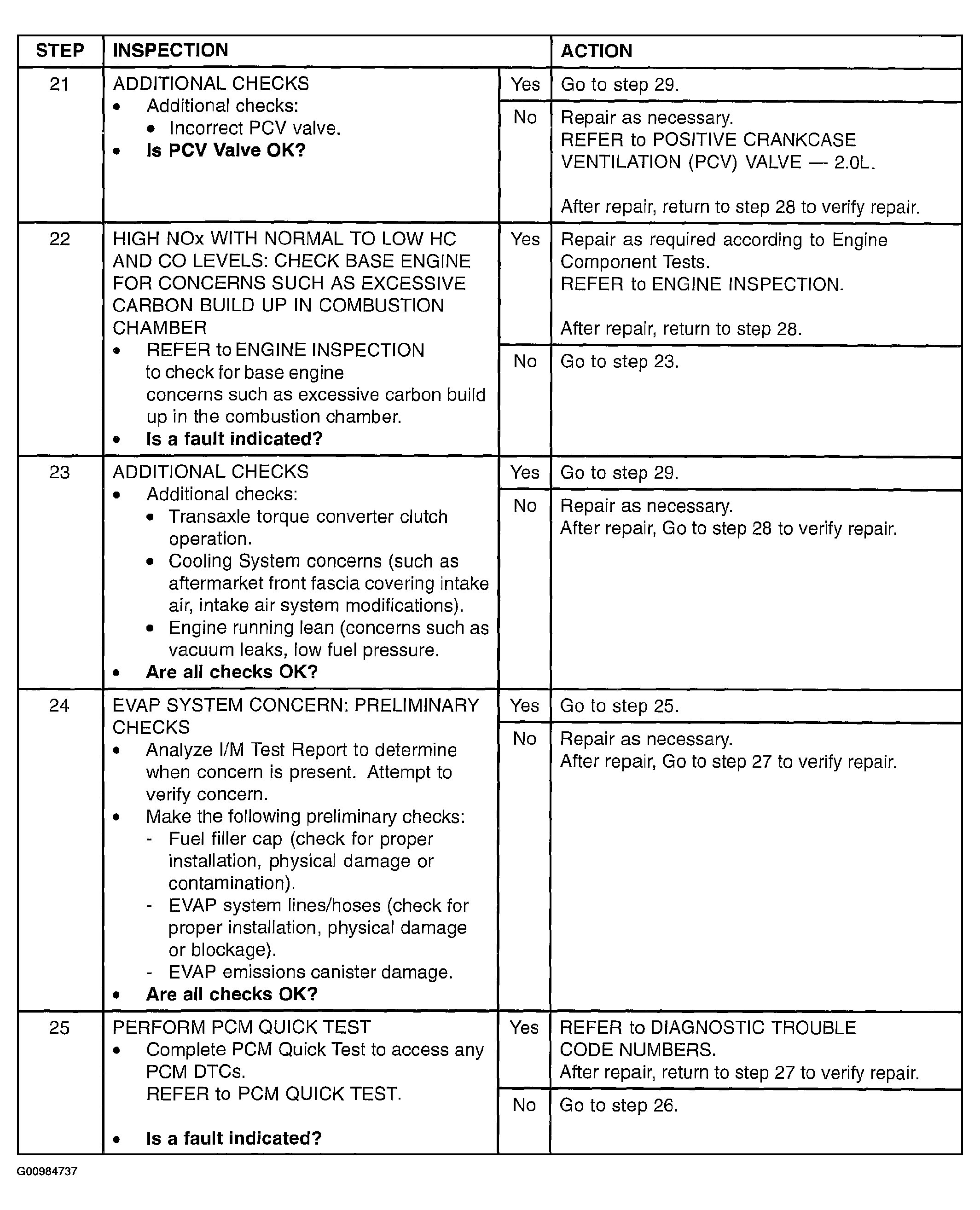

Fig 5: Chart 12 Emission Compliance: Inspection (Steps 21-25)

Courtesy of MAZDA MOTORS CORP.

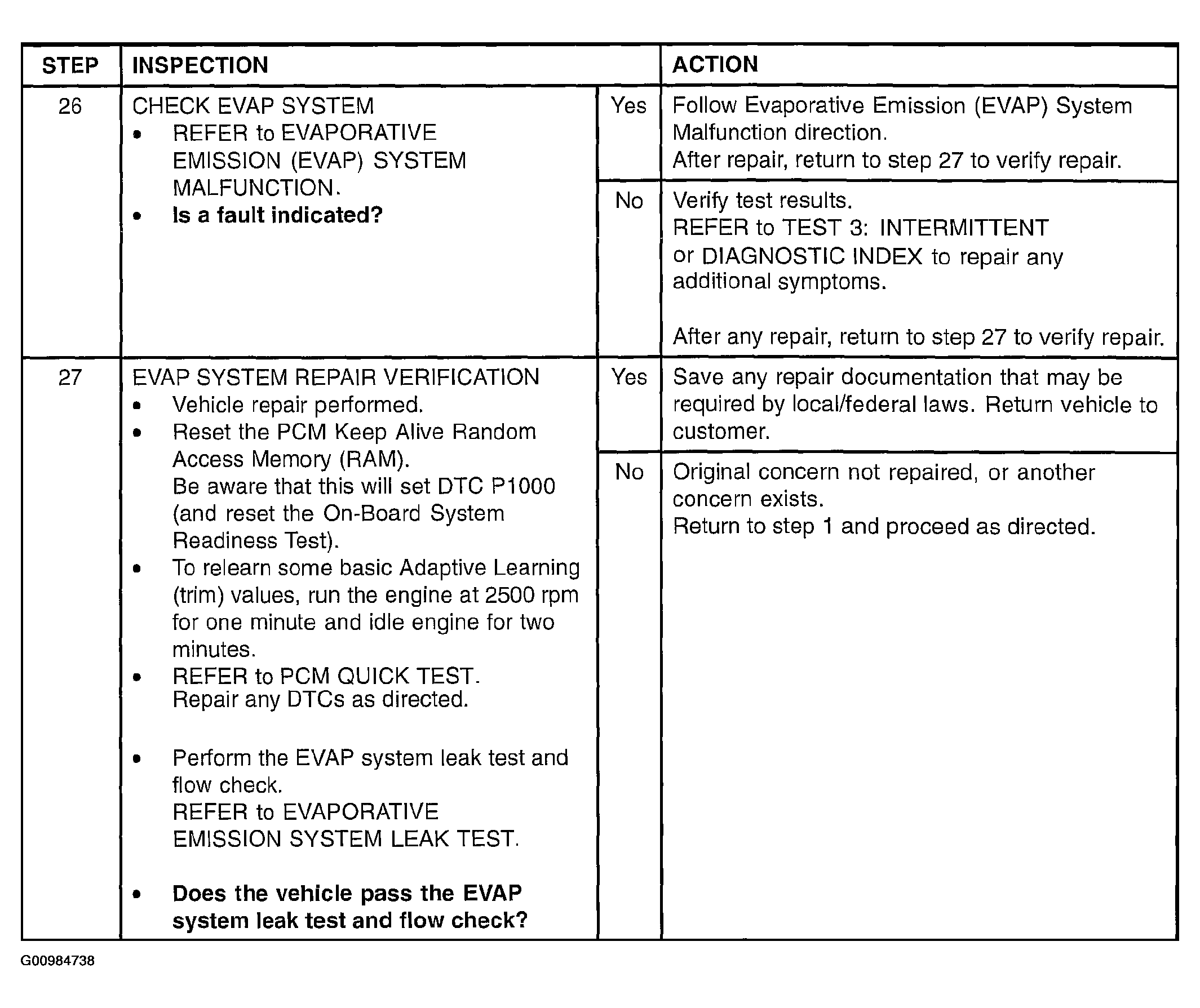

Fig 6: Chart 12 Emission Compliance: Inspection (Steps 26-27)

Courtesy of MAZDA MOTORS CORP.

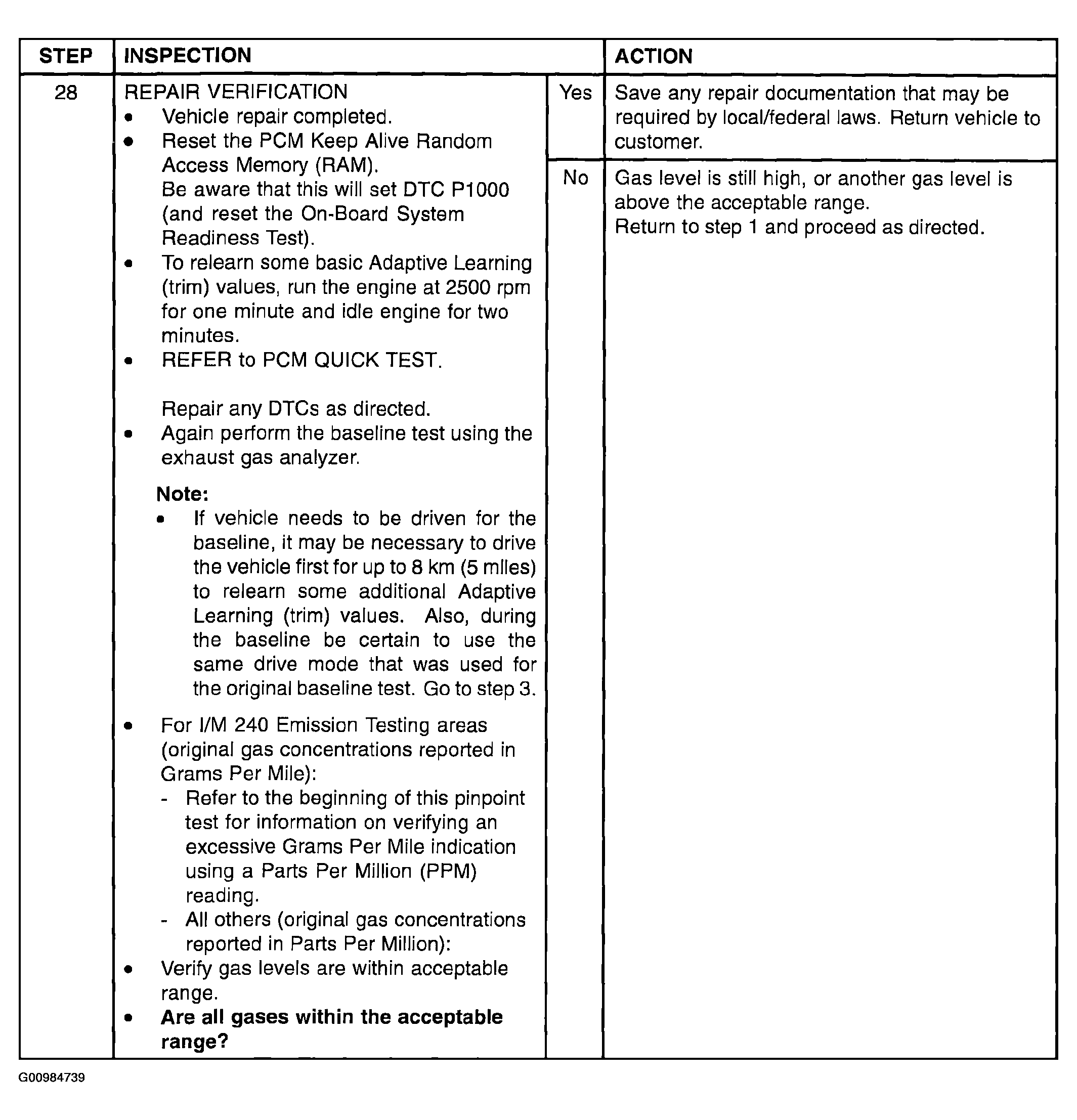

Fig 7: Chart 12 Emission Compliance: Inspection (Step 28)

Courtesy of MAZDA MOTORS CORP.

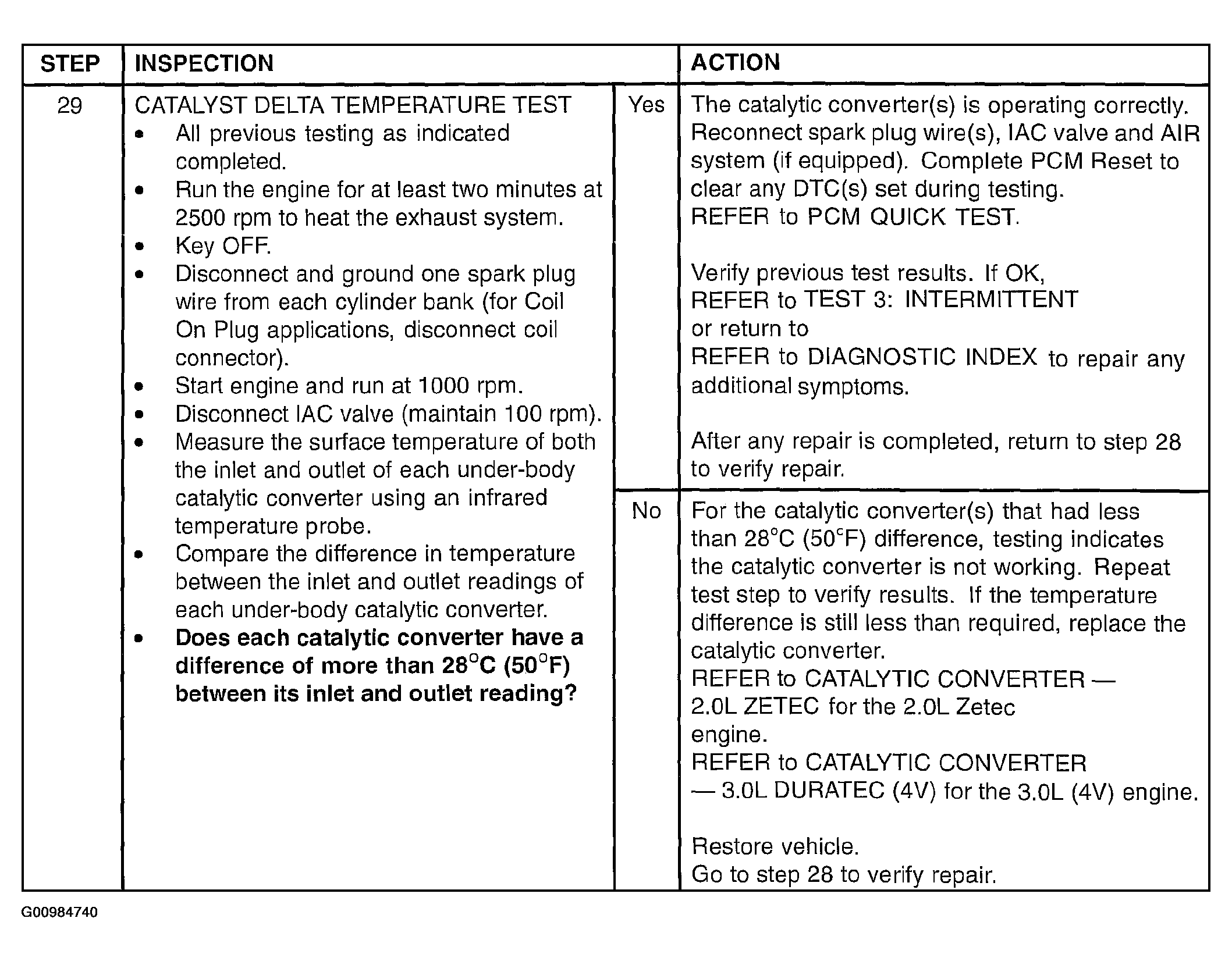

Fig 8: Chart 12 Emission Compliance: Inspection (Step 29)

Courtesy of MAZDA MOTORS CORP.
