Test 9: Fuel Line/Fuel Pressure Hold Inspection

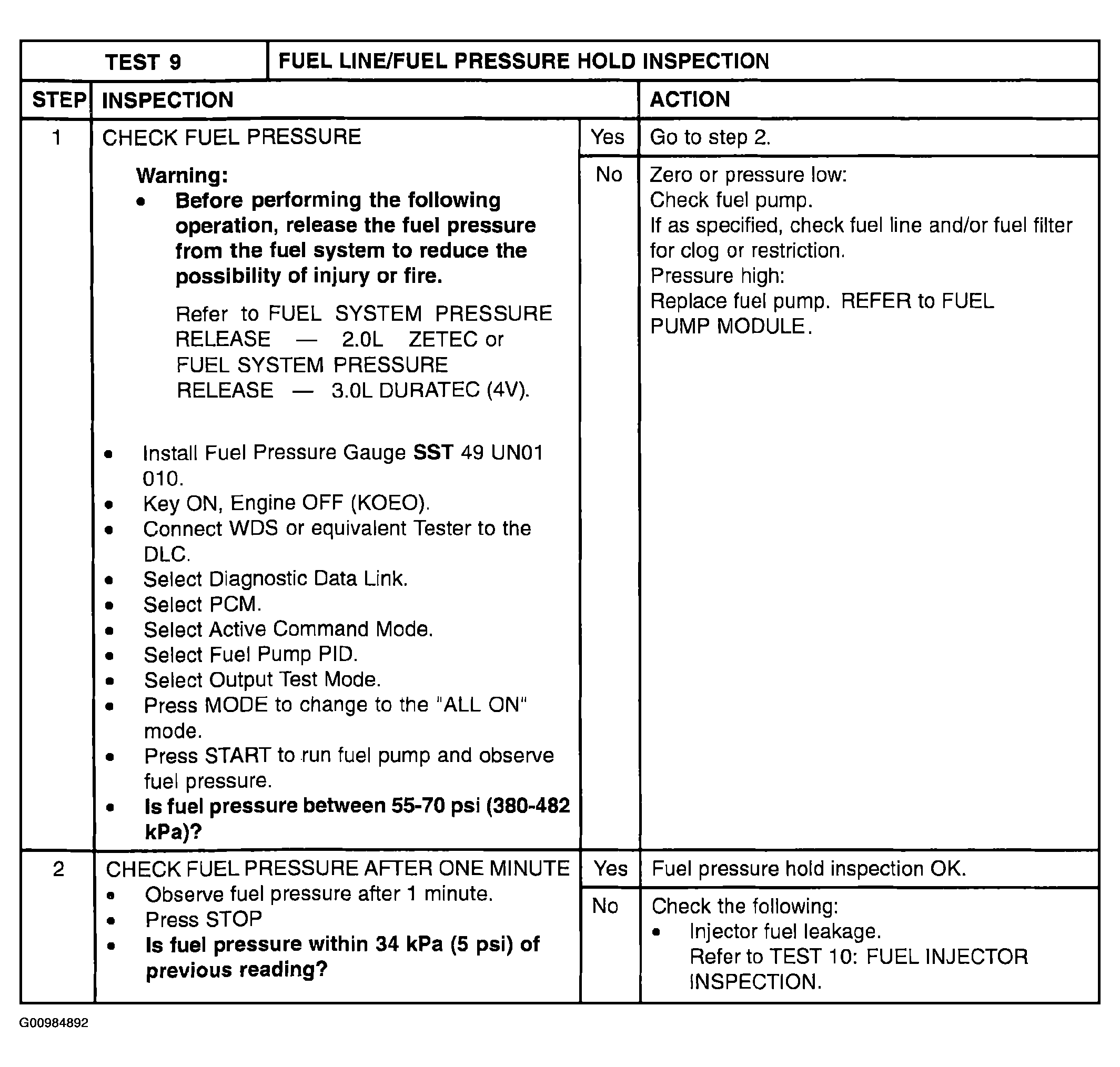

Fig 1: Test 9: Fuel Line/Fuel Pressure Hold Inspection
G00984892Courtesy of MAZDA MOTORS CORP.
