Generic OBD II PID Values

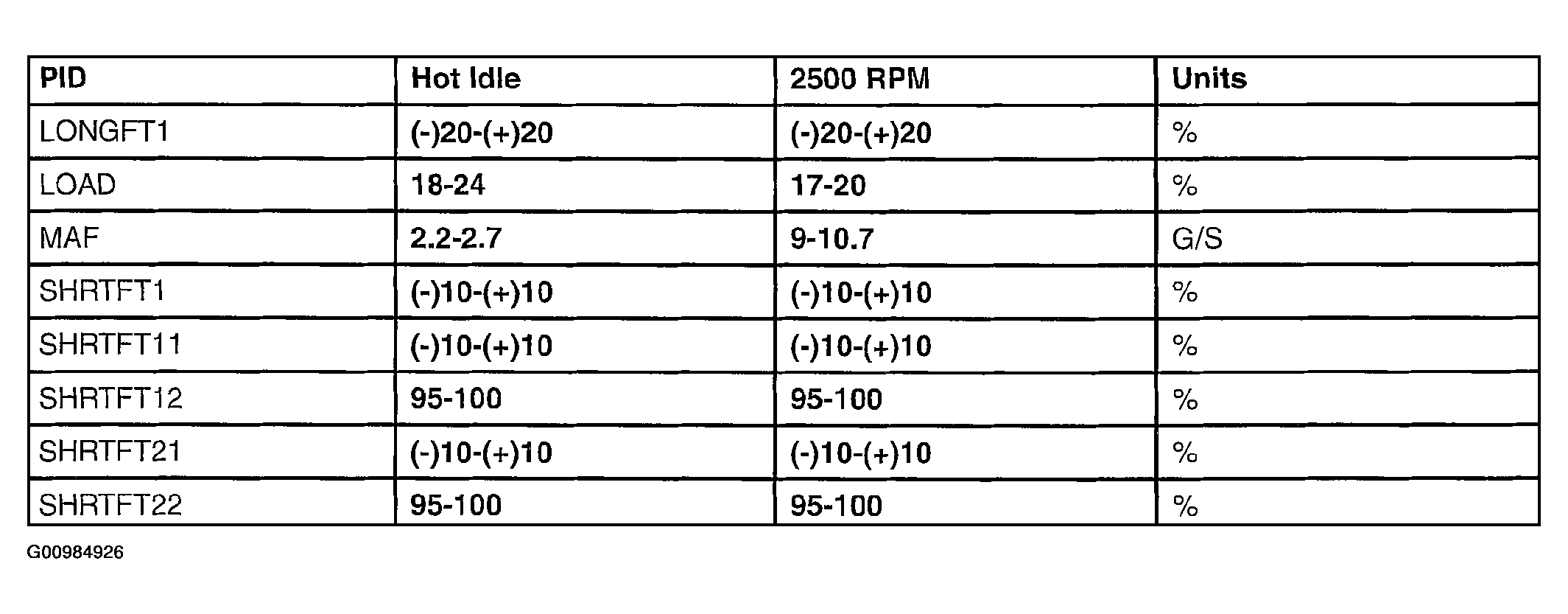

Fig 1: Identifying Generic OBD II PID Values
G00984926Courtesy of MAZDA MOTORS CORP.
