Symptom Diagnostic Index

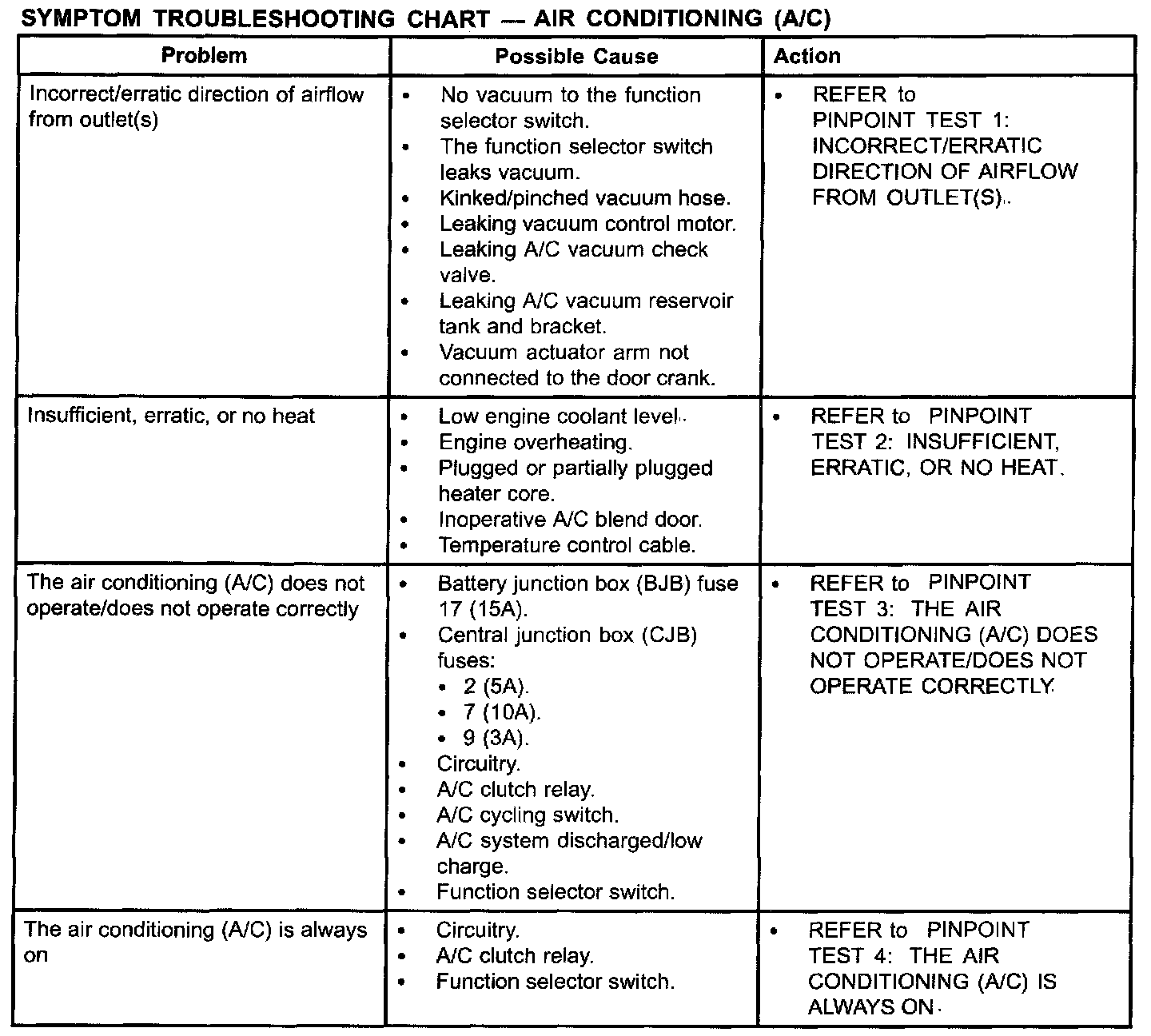

Symptom Troubleshooting Chart - Air Conditioning (A/C) - Part 1:

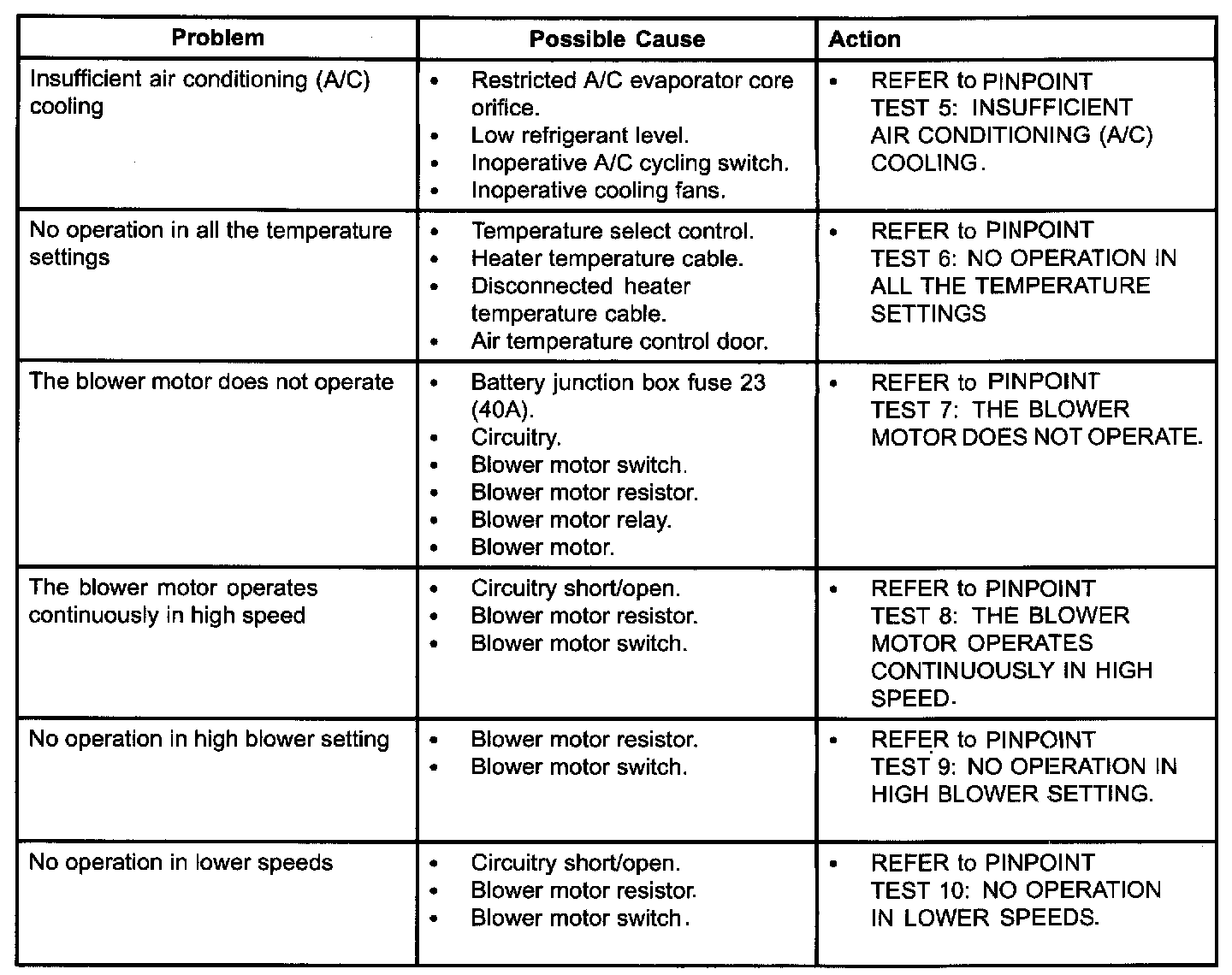

Symptom Troubleshooting Chart - Air Conditioning (A/C) Part 2:
