Power Distribution

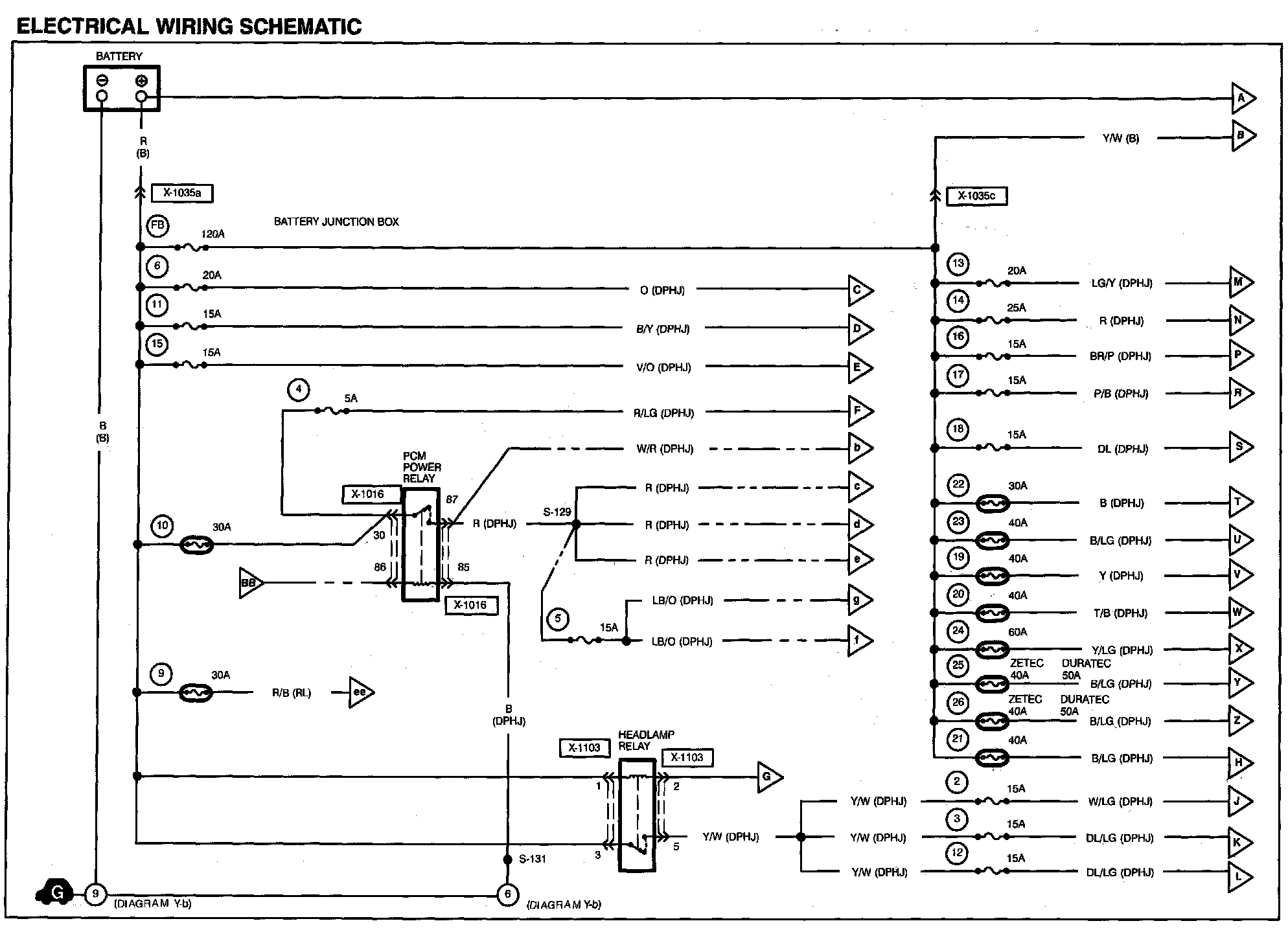

Diagram W-a:

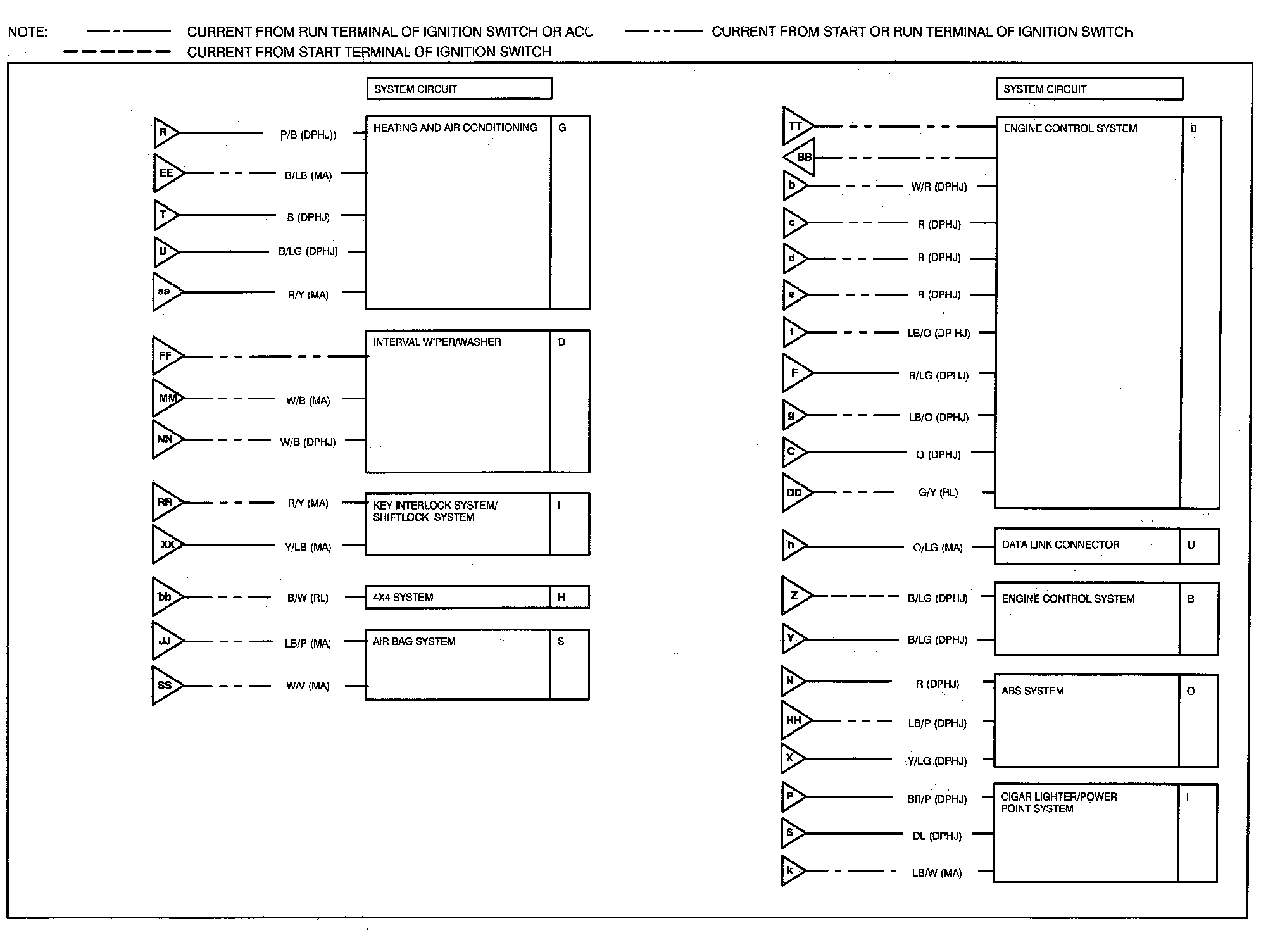

Diagram W-b:

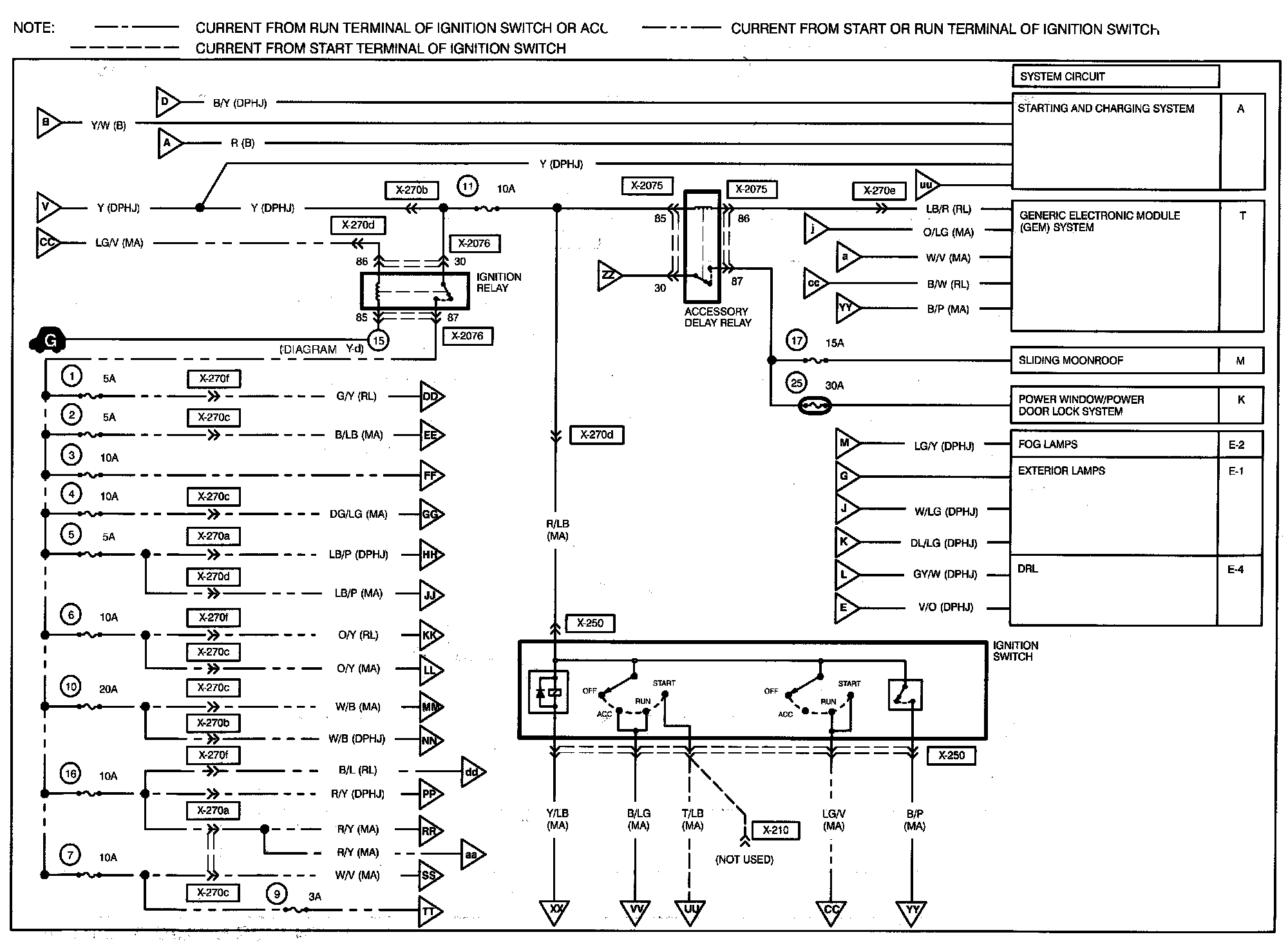

Diagram W-c:

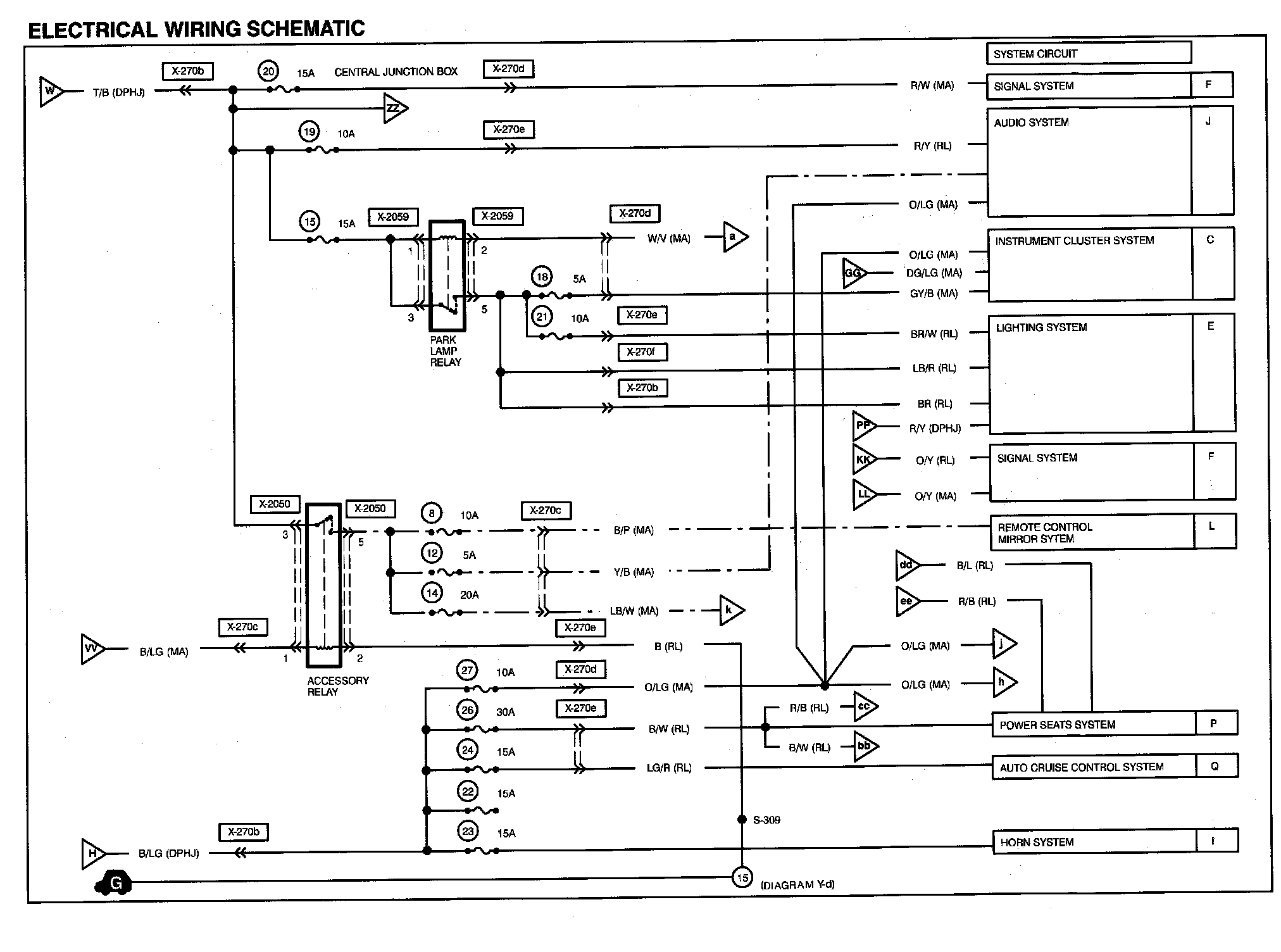

Diagram W-d:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
