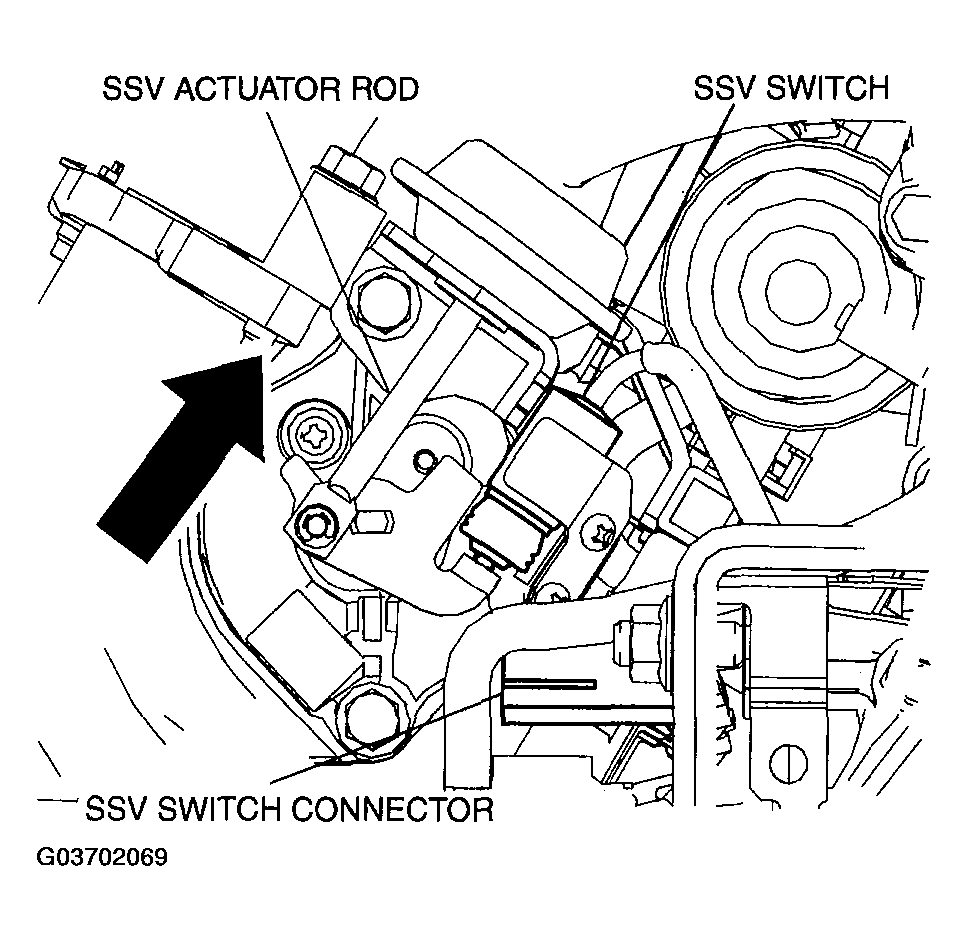

Continuity Inspection
- Verify that the continuity between SSV switch terminals A and B is as indicated in the table.
- If there is no malfunction, perform the "CIRCUIT OPEN/SHORT INSPECTION ".
- If there is any malfunction, replace the SSV switch. (See SECONDARY SHUTTER VALVE (SSV) SWITCH REMOVAL/INSTALLATION .)
SECONDARY SHUTTER VALVE SPECIFICATIONMeasurement condition Continuity Push the rod. No continuity Except above Continuity detected
