Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Removal/Installation: Notes

  1. Remove the MAF/IAT sensor connector.
  2. Remove in the order indicated in the table.

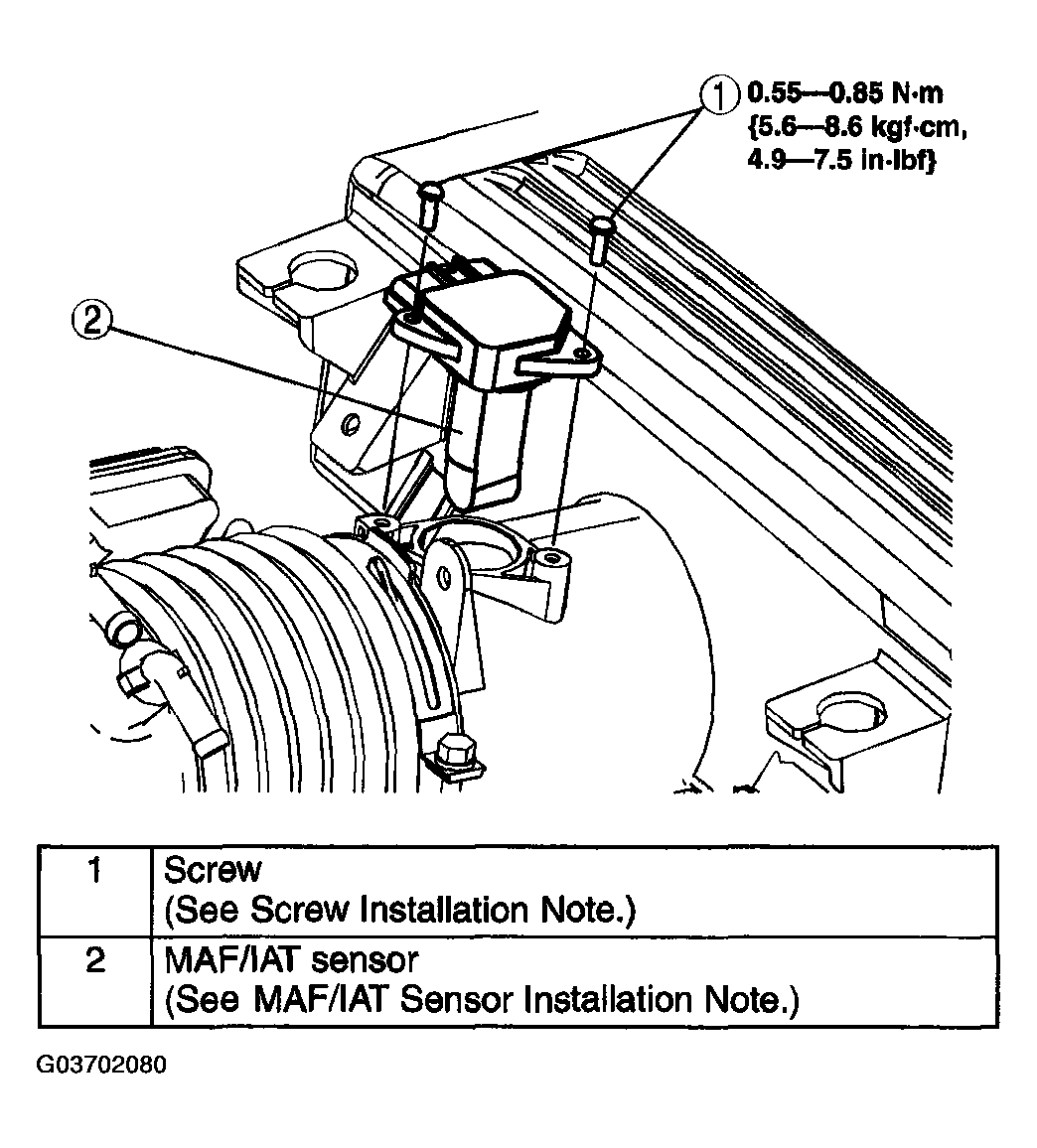

    Fig 1: Mass Air Flow/Intake Air Temperature Sensor With Torque Specification
    G03702080Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
