ECT sensor characteristics graph (reference)

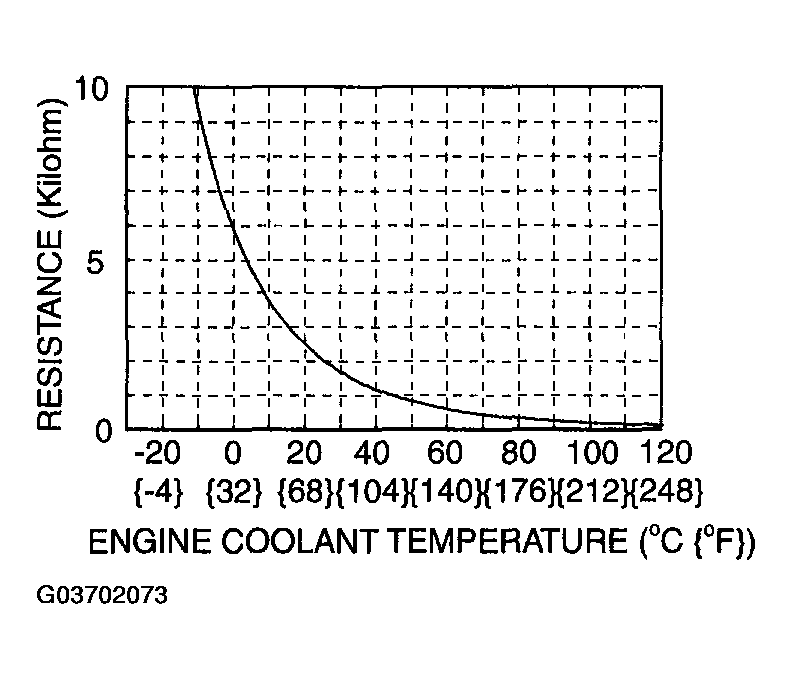

Fig 1: Identifying ECT Sensor Characteristics Graph
G03702073Courtesy of MAZDA MOTORS CORP.
