Intake Manifold Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Apply oil thoroughly to the APVs (13B-MSP (HIGH POWER) as shown in the figure.

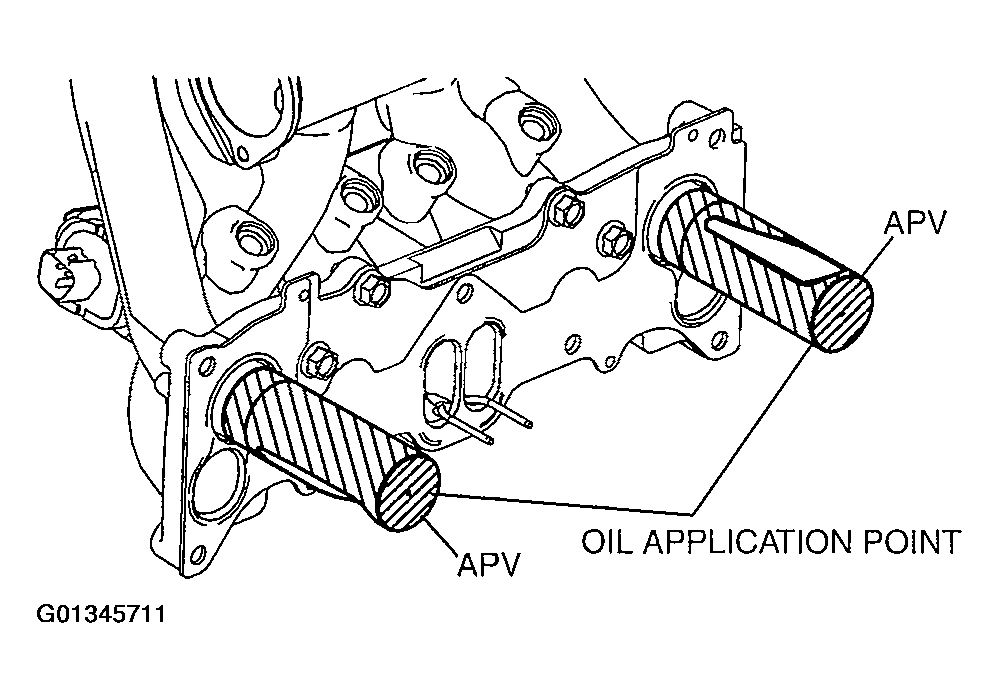

Fig 1: Applying Oil To Oil Applicable Points
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts in the order shown in the figure. See Fig 2 .
Retighten the No. 1 bolt after tighten the all bolts.

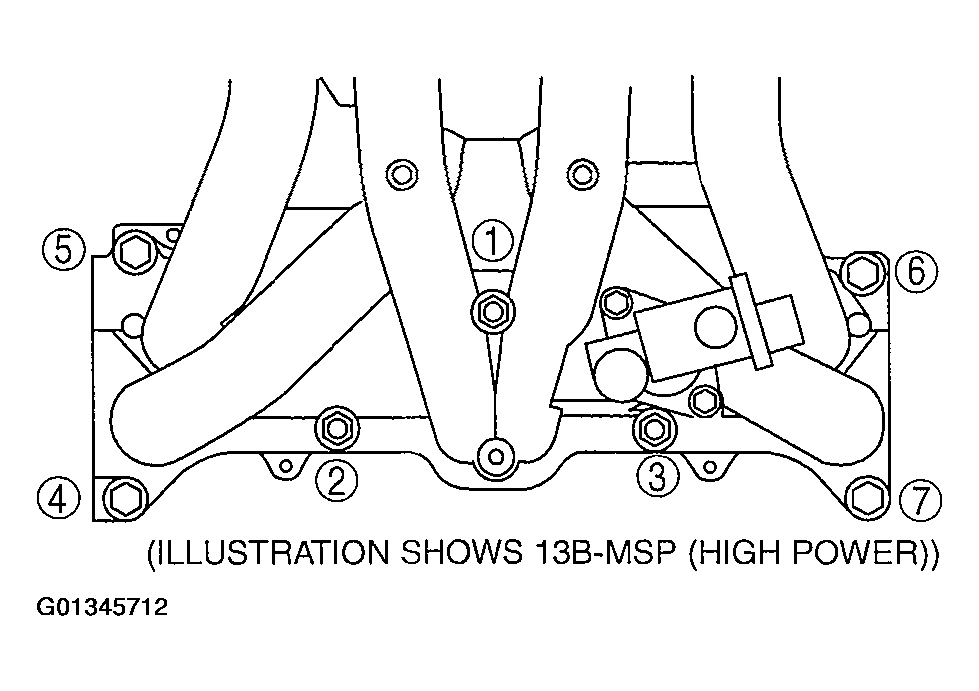

Fig 2: Tightening Order Of Intake Manifold Bolts
Courtesy of MAZDA MOTORS CORP.

Tightening torque

18.6-25.5 N.m {1.8-2.6 kgf.m, 13.7-18.9 ft.lbf}
