Intake Manifold Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated. See Fig 1 .
  2. Install in the reverse order of removal.

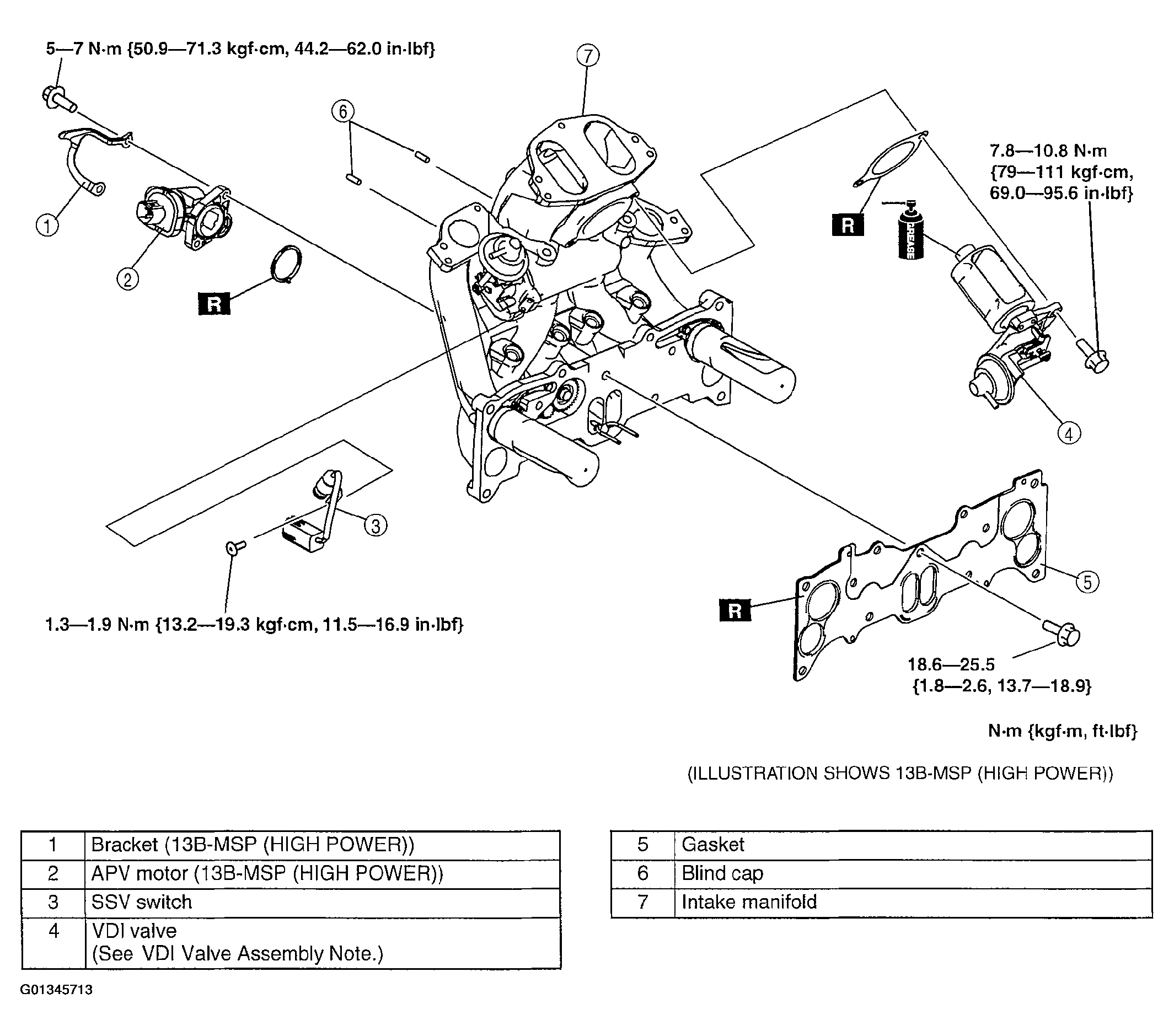

    Fig 1: Disassembling/Assembling Intake Manifold
    G01345713Courtesy of MAZDA MOTORS CORP.
