Diagnostic Procedure

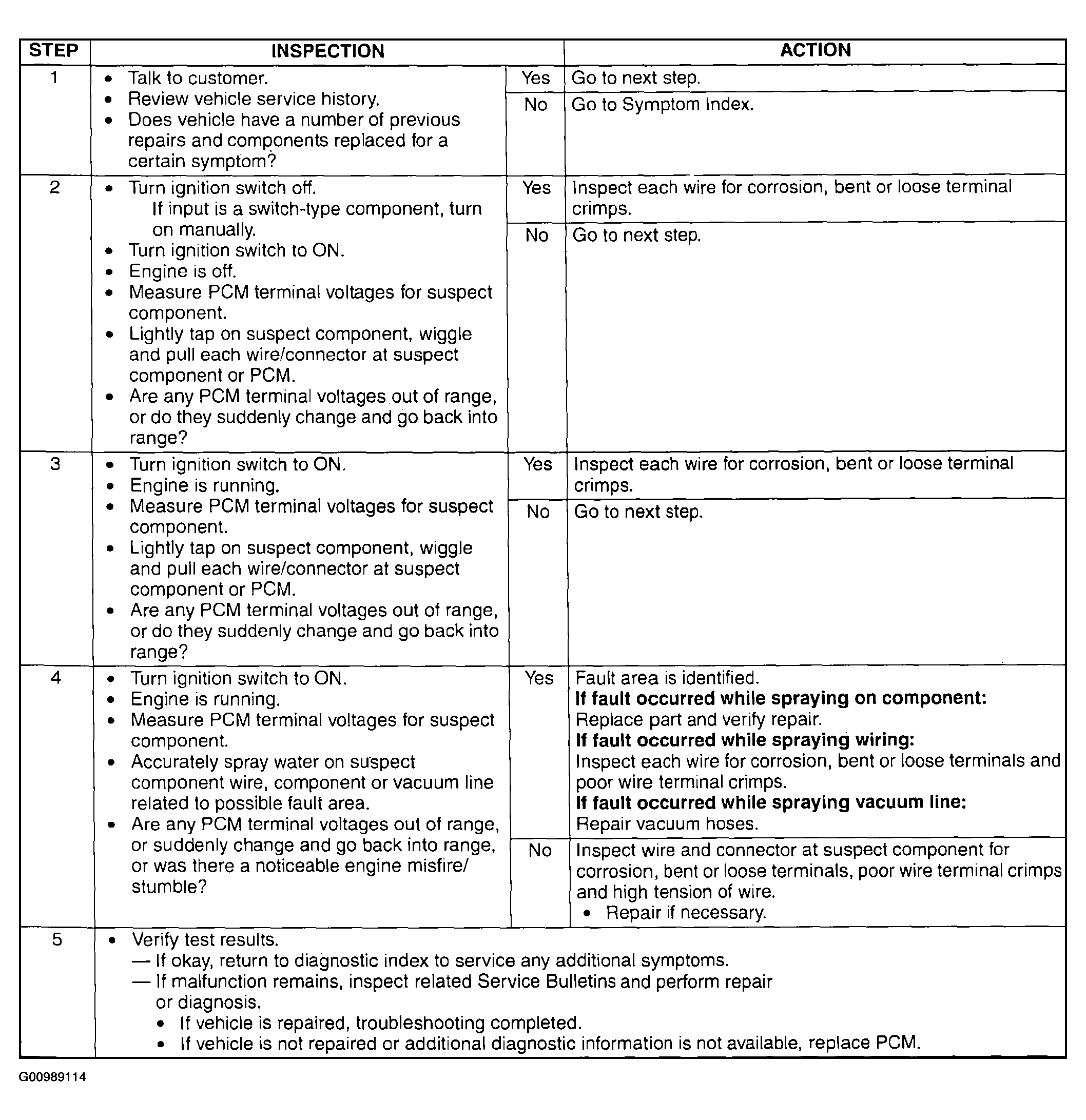

Fig 1: Diagnostic Procedure - No. 27 Intermittent Concerns [BP, BP WITH TC] (Step 1-5)
G00989114Courtesy of MAZDA MOTORS CORP.
