DTC P0340: CMP Sensor Circuit Malfunction
>>
Diagnostic Procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Procedure

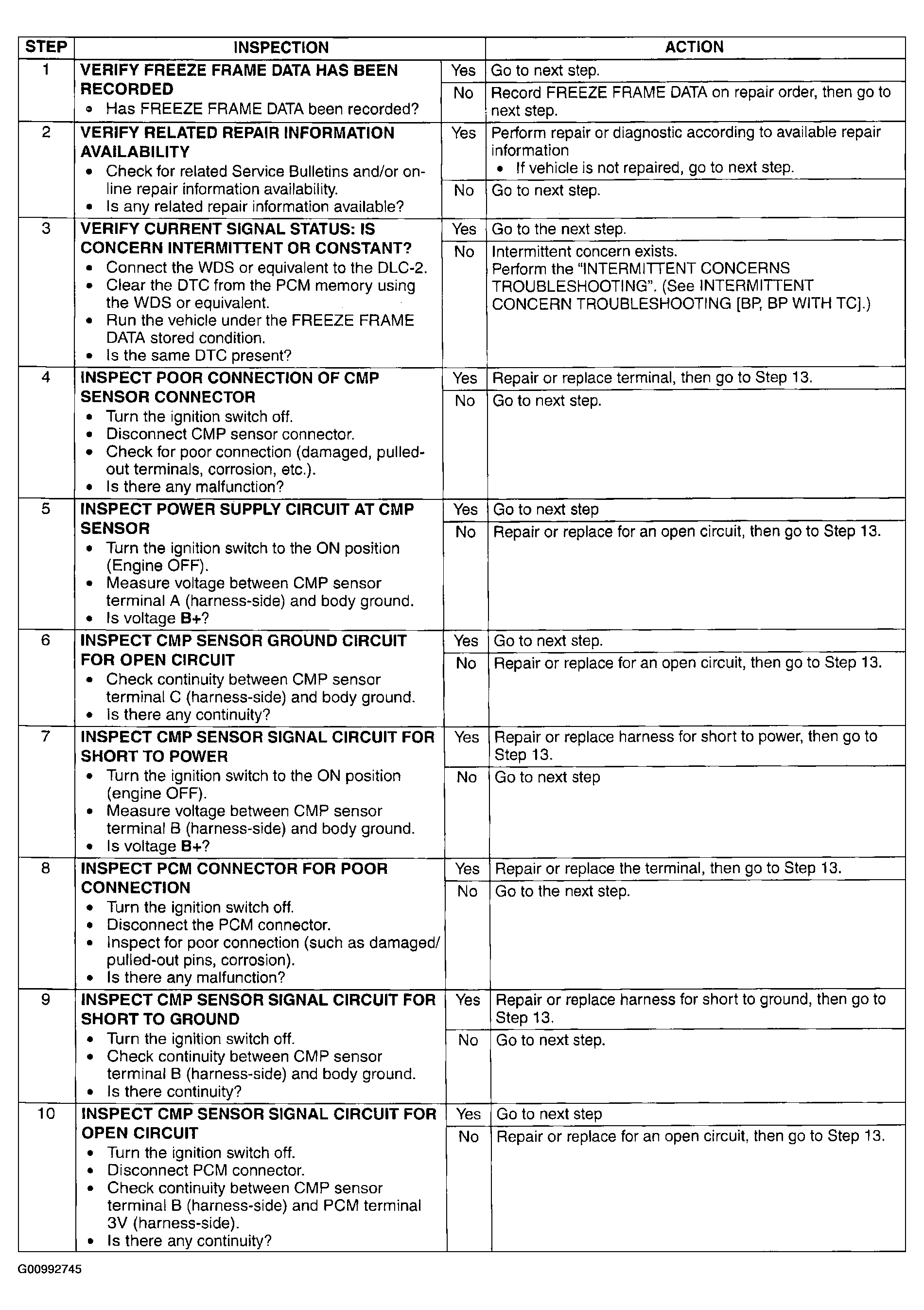

Fig 1: Diagnostic Procedure - DTC P0340 [BP, BP With TC] (Steps 1-10)
Courtesy of MAZDA MOTORS CORP.

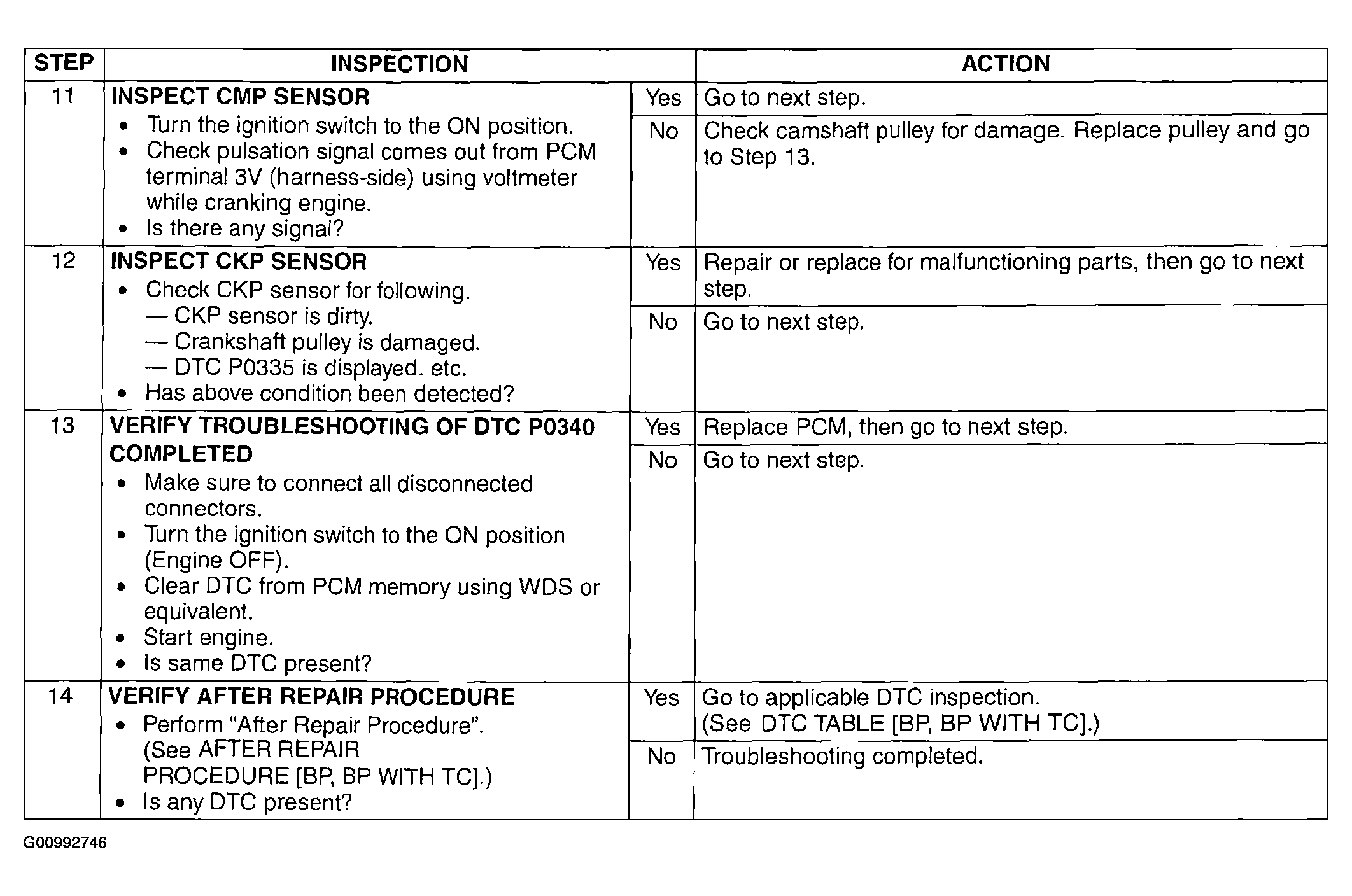

Fig 2: Diagnostic Procedure - DTC P0340 [BP, BP With TC] (Steps 11-14)
Courtesy of MAZDA MOTORS CORP.
