Accelerator Cable Inspection/Adjustment
- Verify that the throttle valve is at the closed throttle position (TP).
- Measure the free play of the accelerator cable.

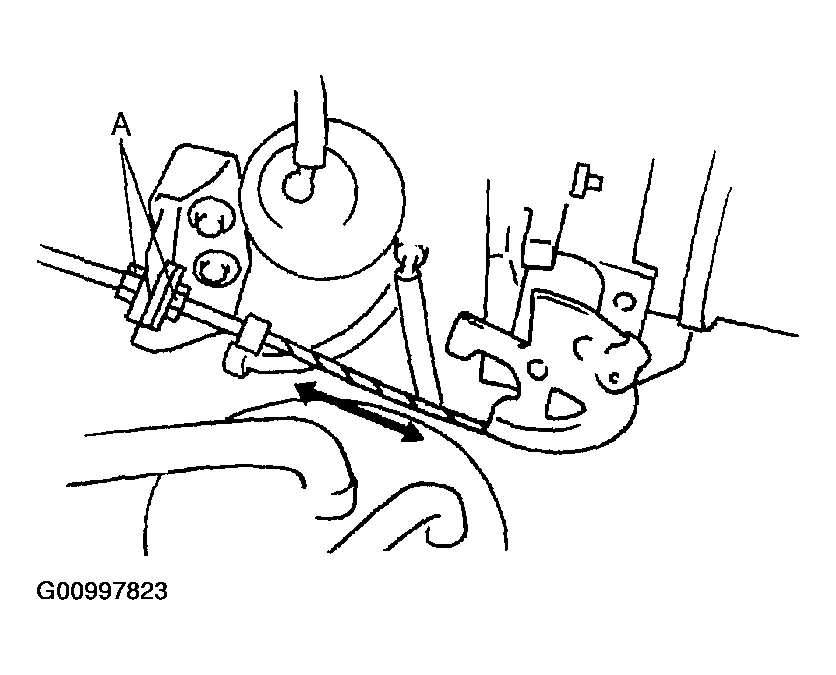

- If not within the specification, adjust by turning locknuts A.
- Free play: 1-3 mm {0.04-0.11 in}
- Tightening torque: 9.9-14.0 N.m {1.0-1.5 kgf.m, 7.3-10.0 ft.lbf}
