Fuel-Filler Lid Opener Removal/Installation

  1. Remove the rear console. (See CONSOLE REMOVAL/INSTALLATION .)
  2. Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear end mat.
  4. Remove the driver's side trunk side trim.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

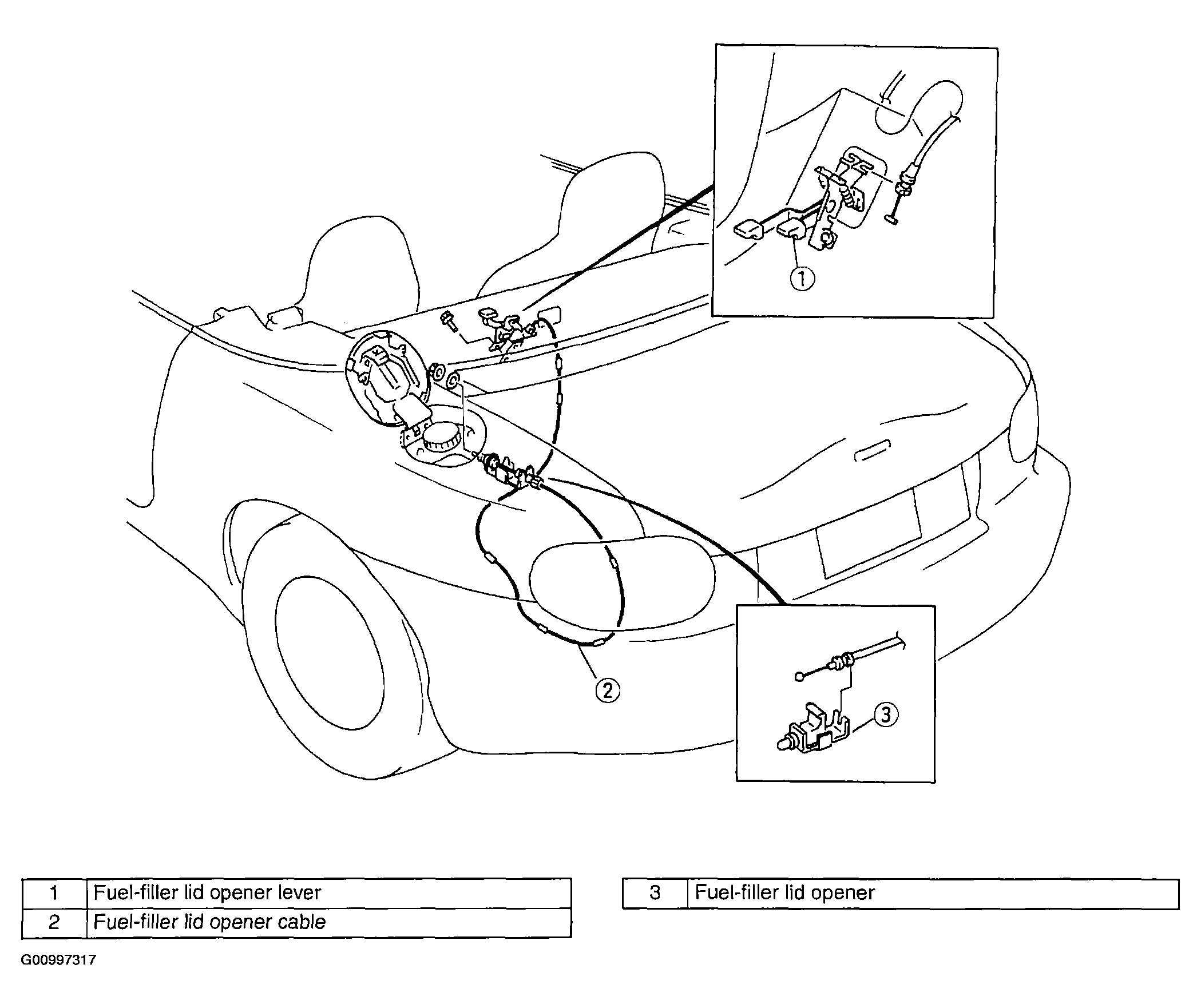

    Fig 1: Removing/Installing Fuel-Filler Lid Opener Table
    G00997317Courtesy of MAZDA MOTORS CORP.
