Symptom Diagnostic Index

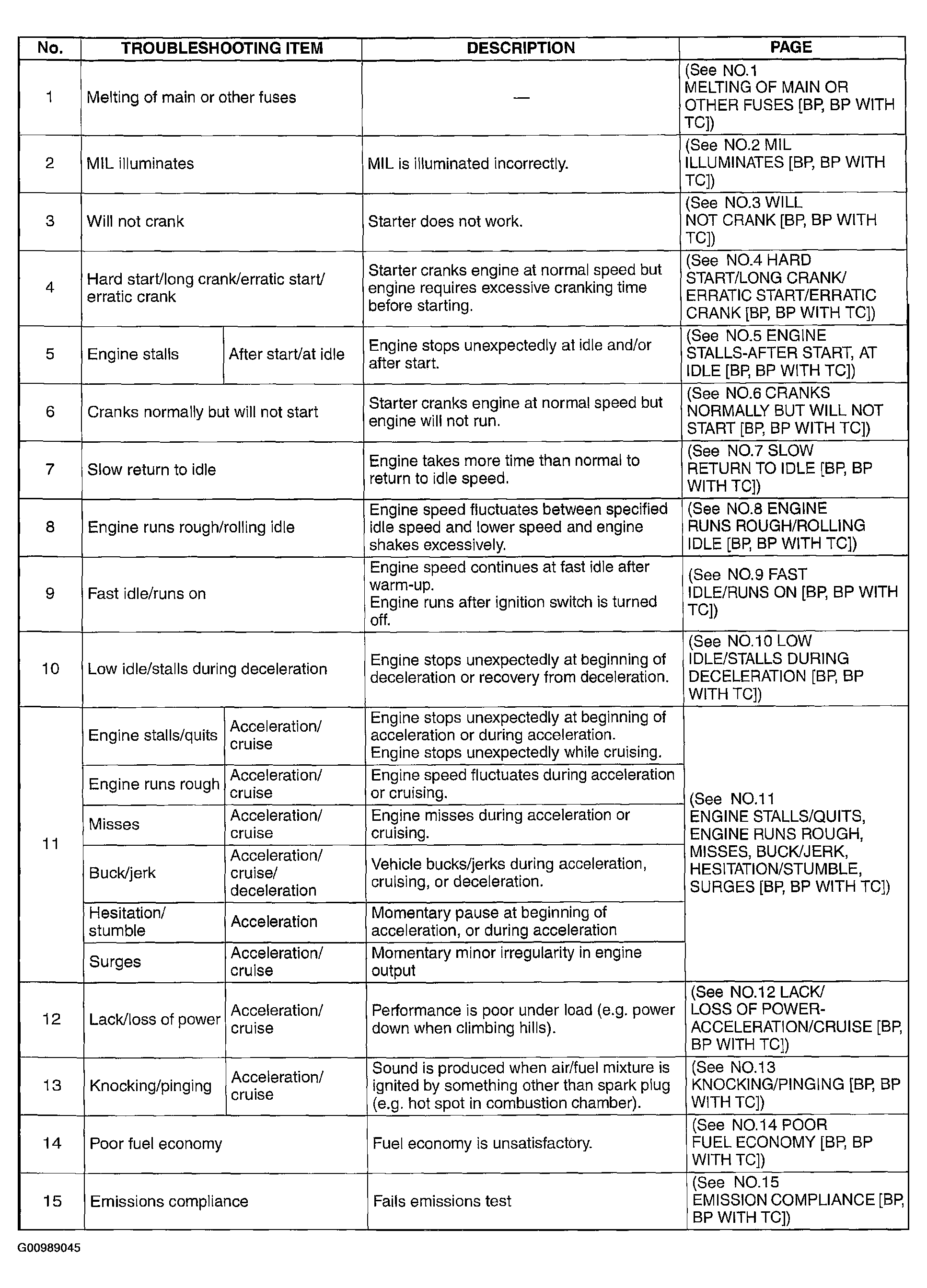

Fig 1: Symptom Diagnostic Index [BP, BP With TC] (1-15)
G00989045Courtesy of MAZDA MOTORS CORP.

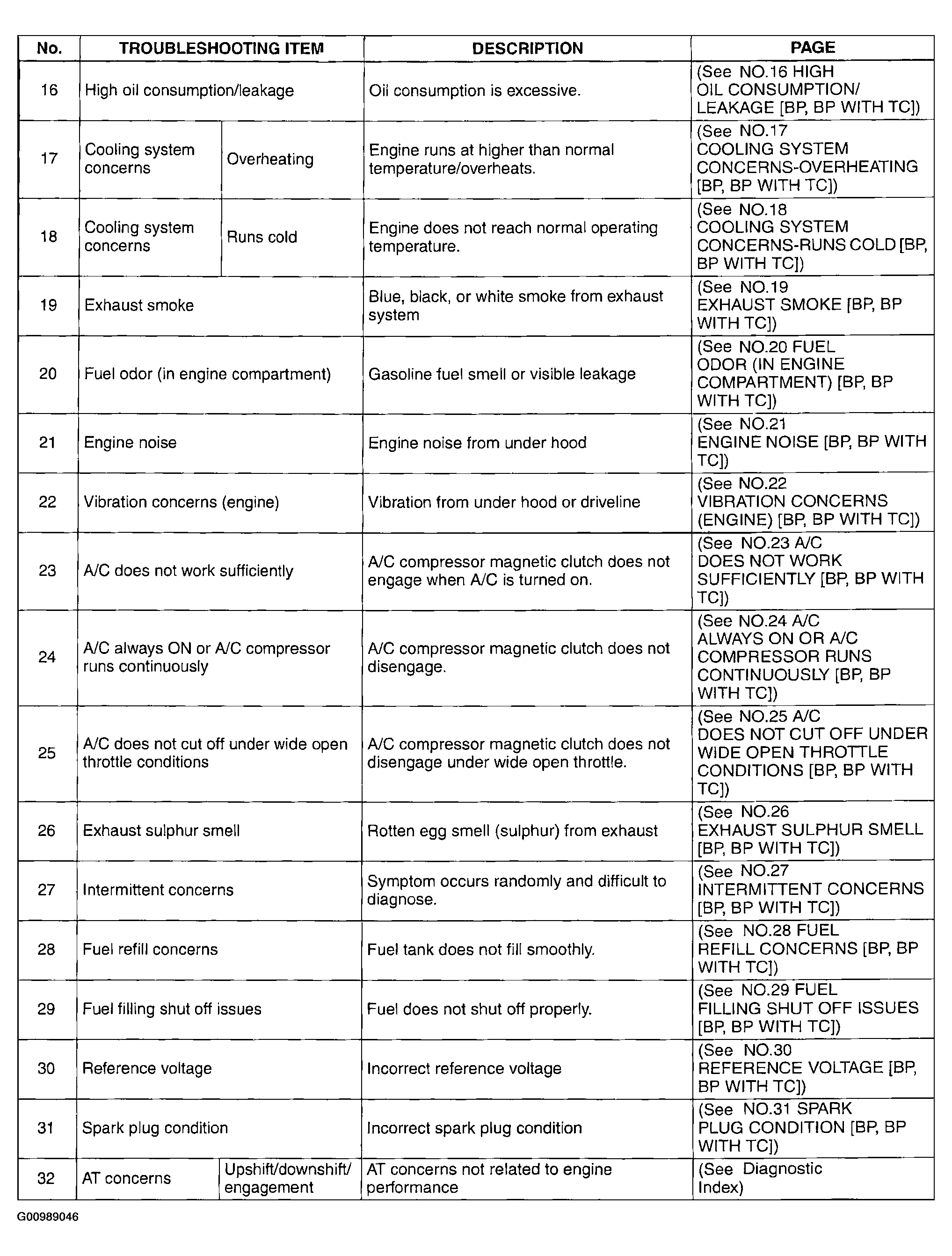

Fig 2: Symptom Diagnostic Index [BP, BP With TC] (16-32)
G00989046Courtesy of MAZDA MOTORS CORP.
