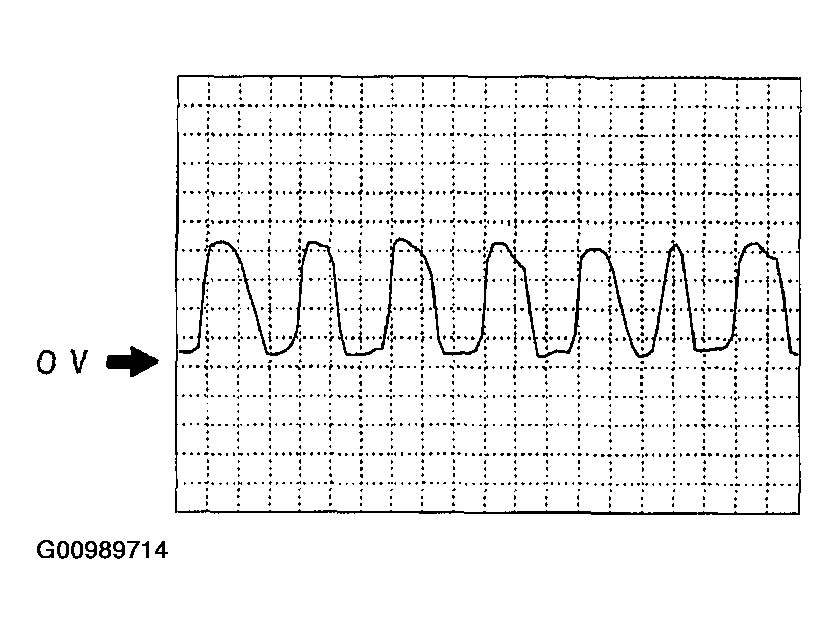

HO2S (Front) Signal
- PCM terminal: 4W(+) <-> 4A(-)
- Oscilloscope setting: 0.2 V/DIV (Y), 2.0 ms/DIV (X), DC range
- Vehicle condition: Idling after warm-up
Courtesy of MAZDA MOTORS CORP.
