Power Window Regulator Removal/Installation
- Remove the front glass guide. (See DOOR GLASS AND GUIDE REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable.
- Remove in the order indicated in the table.

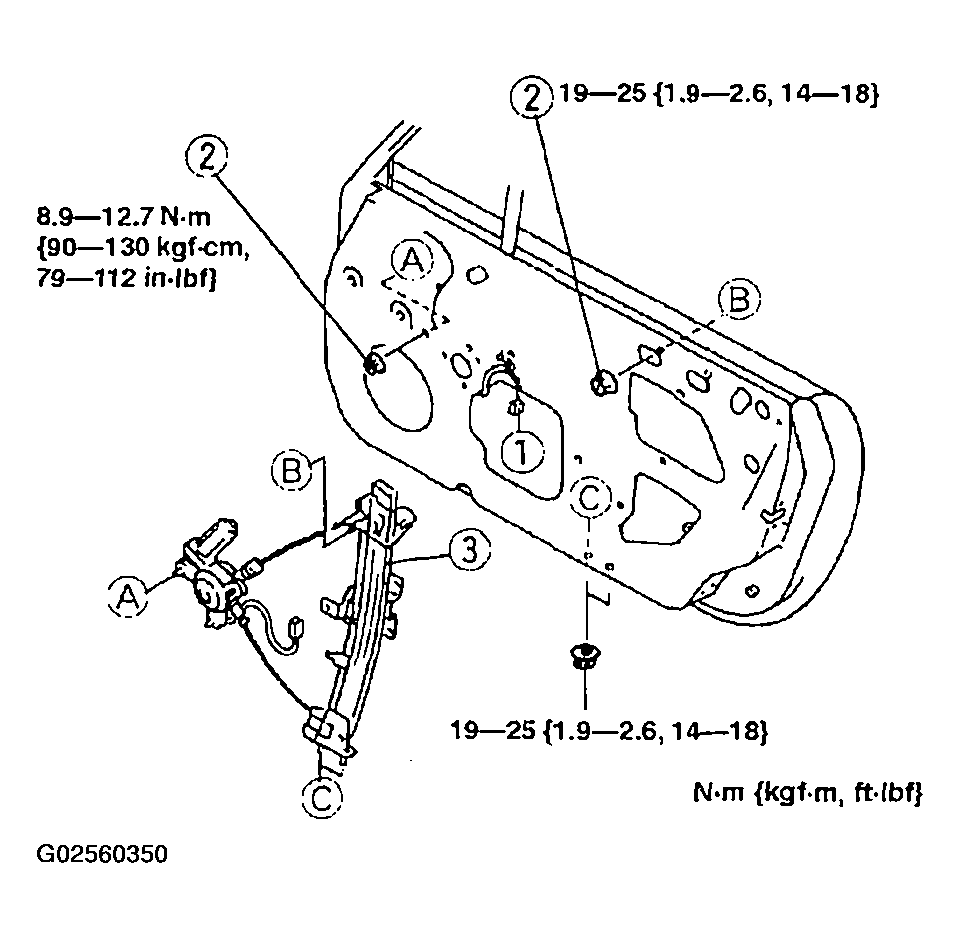

REMOVAL ORDER OF POWER WINDOW REGULATOR
| Removal Order |
Component |
| 1 |
Connector |
| 2 |
Nut |
| 3 |
Power window regulator |
- Install in the reverse order of removal.
- Adjust the door glass. (See DOOR GLASS ADJUSTMENT .)
Courtesy of MAZDA MOTORS CORP.
