Hood Lock And Opener Removal/Installation

  1. Remove in the order indicated in the figures.
    Fig 1: Removal Order Of Hood Lock & Opener
    G00991349Courtesy of MAZDA MOTORS CORP.

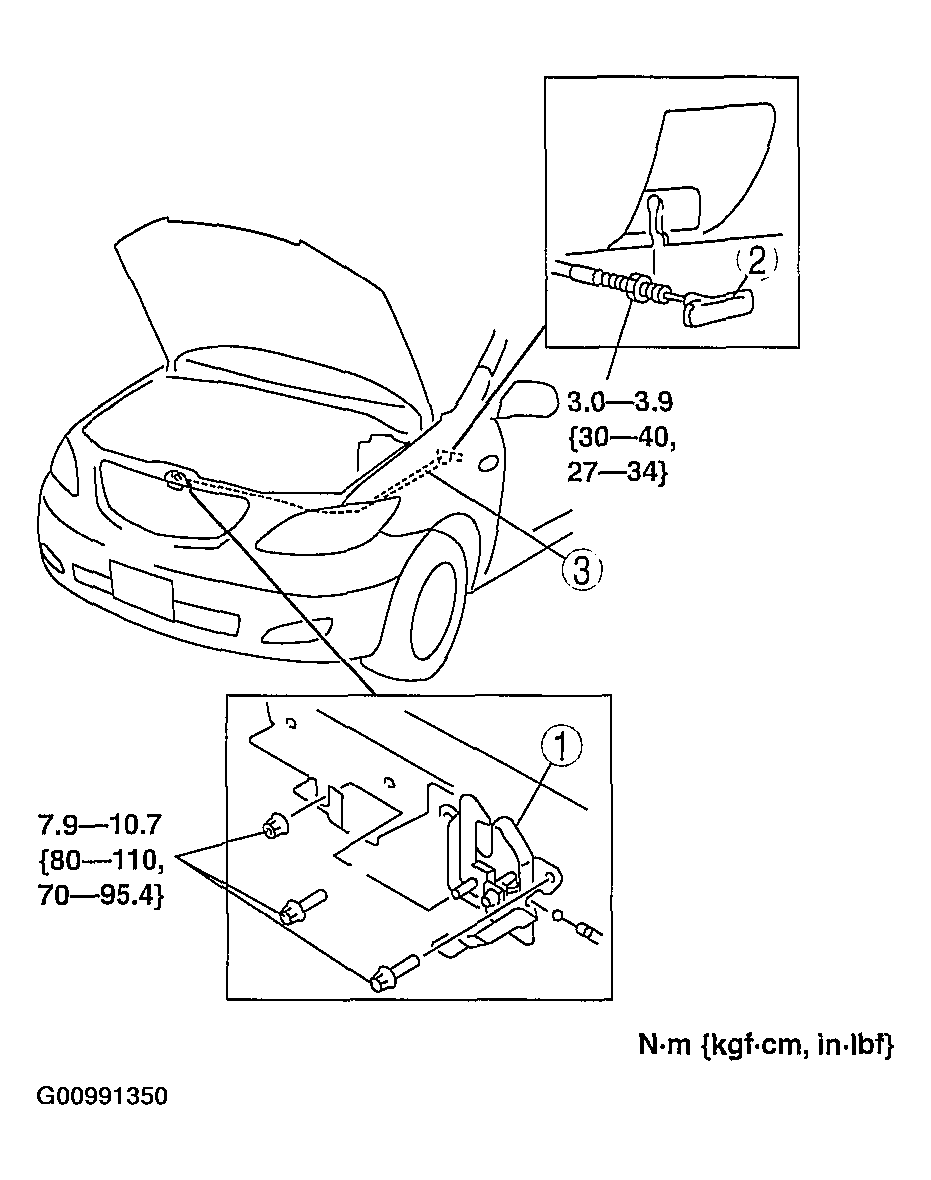

    Fig 2: Removing/Installing Hood Lock & Opener
    G00991350Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
