DTC 11: Cruise Control Switch (Set/Coast Switch)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC 11: Cruise Control Switch (Set/Coast Switch)

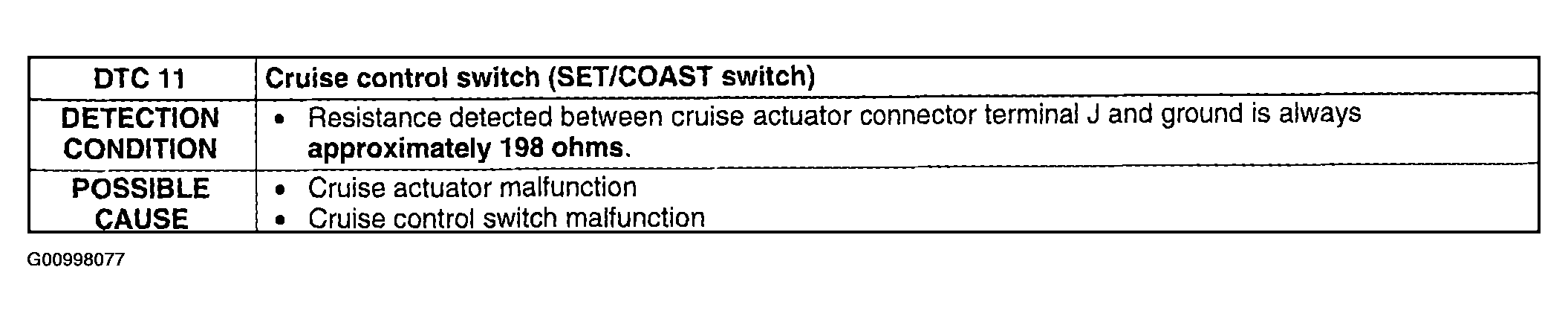

Fig 1: DTC 11 Detection Condition & Possible Cause
Courtesy of MAZDA MOTORS CORP.

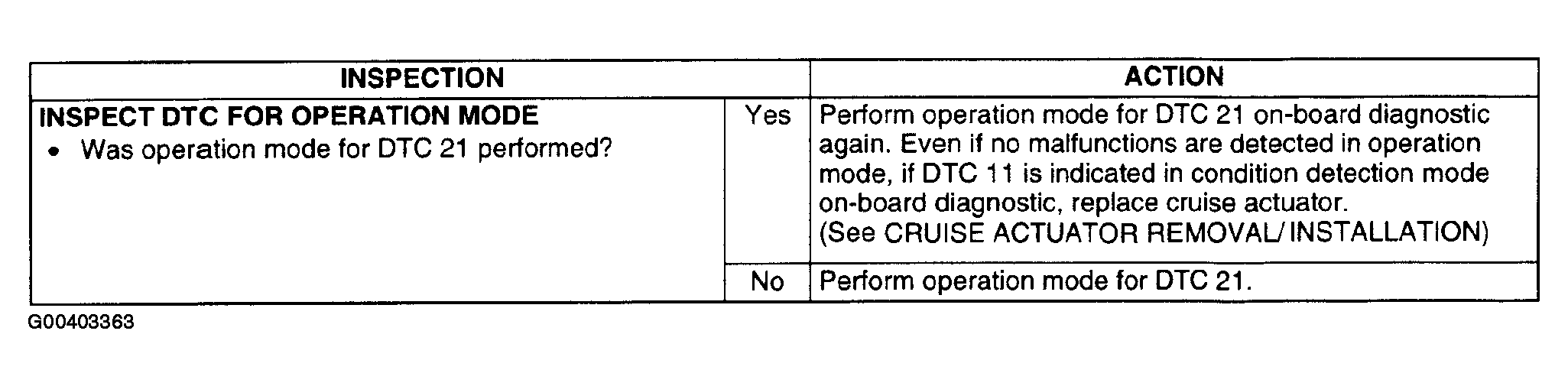

Fig 2: DTC 11 Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
