DTC P0791: Intermediate Sensor Circuit Malfunction (Open Circuit/Short Circuit): Notes

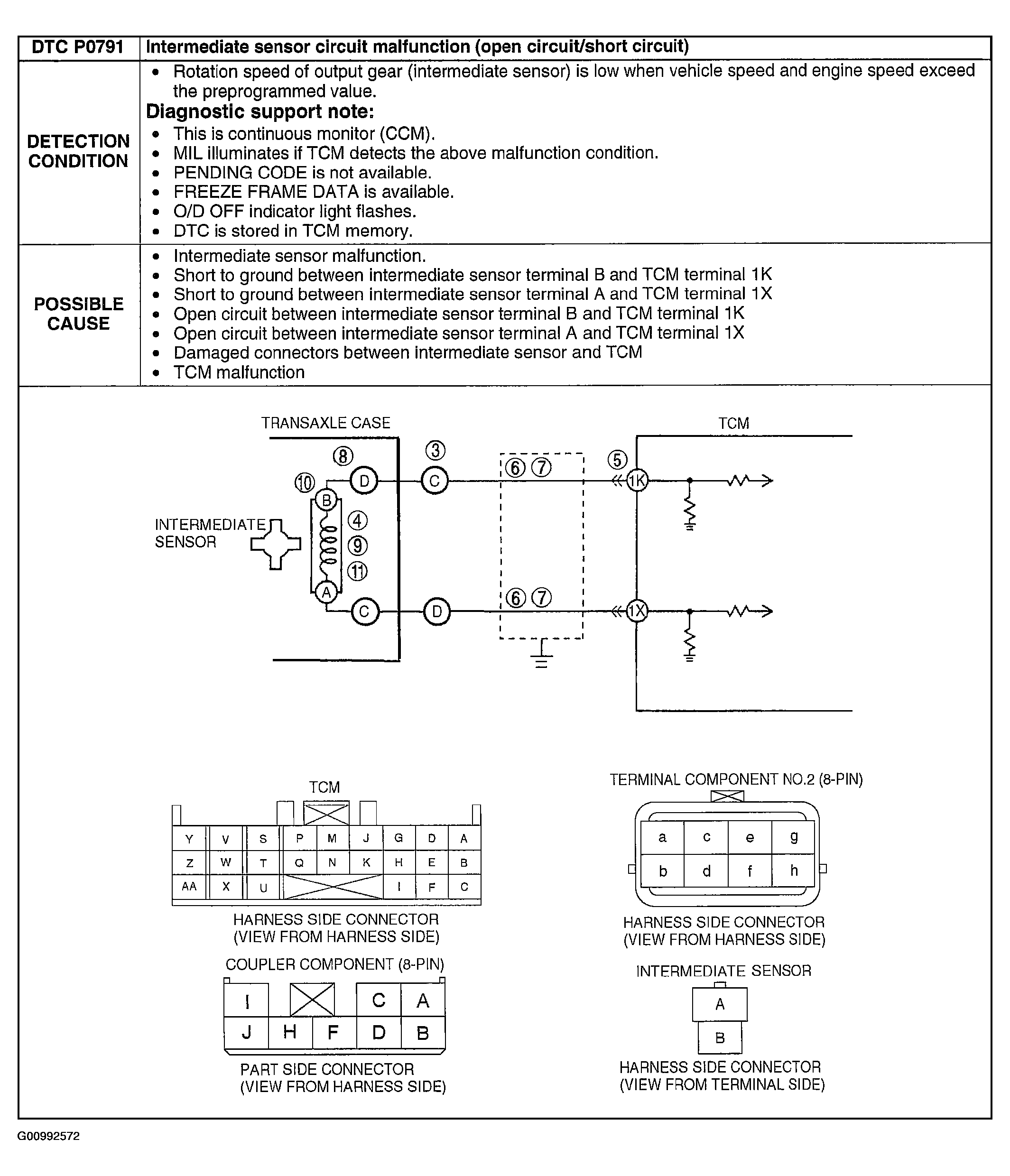

Fig 1: Possible Cause - DTC P0791
G00992572Courtesy of MAZDA MOTORS CORP.
