Instrument Cluster Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • If the instrument cluster is dropped or the print plate is damaged, the system will not work properly and it may be the cause of trouble or malfunctions.
  1. Disassemble in the order indicated in Fig 1 .

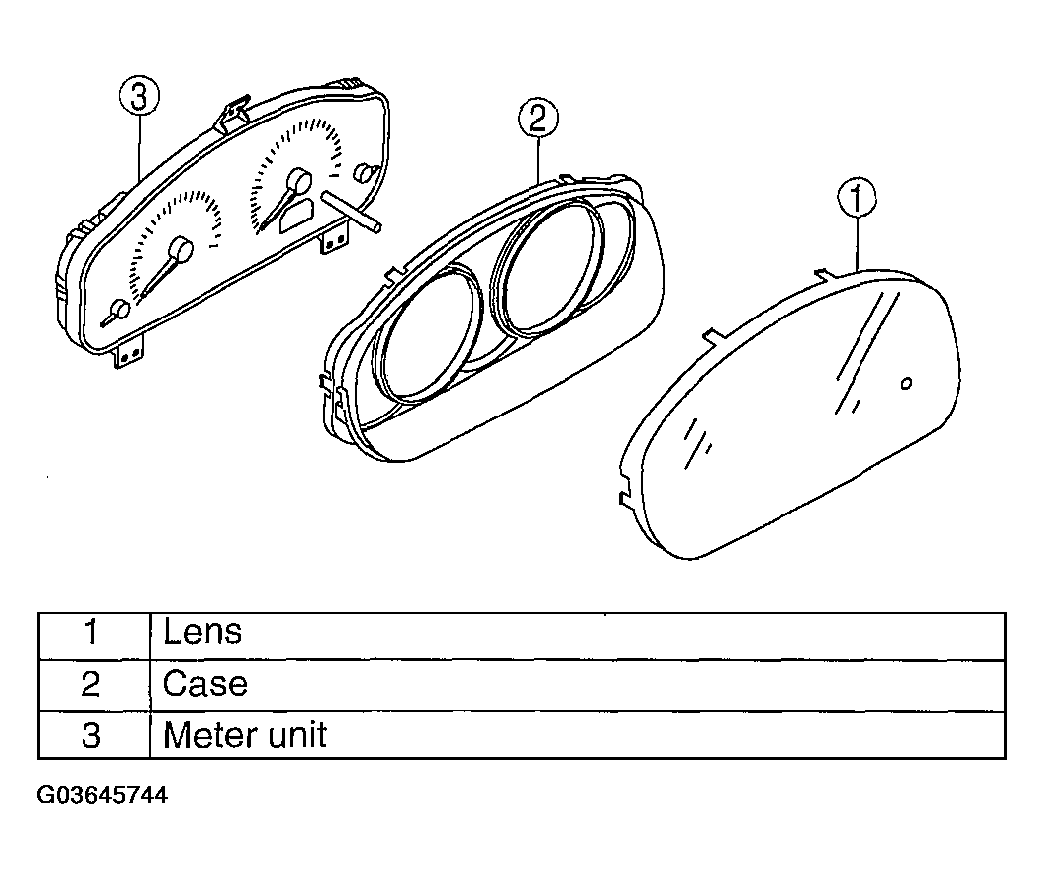

    Fig 1: Instrument Cluster Disassembly Sequence
    G03645744Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
