Section 162 (Washer System & Wiper System)
>>
Wiper And Washer System Location Index
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiper And Washer System Location Index
WARNING:
This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

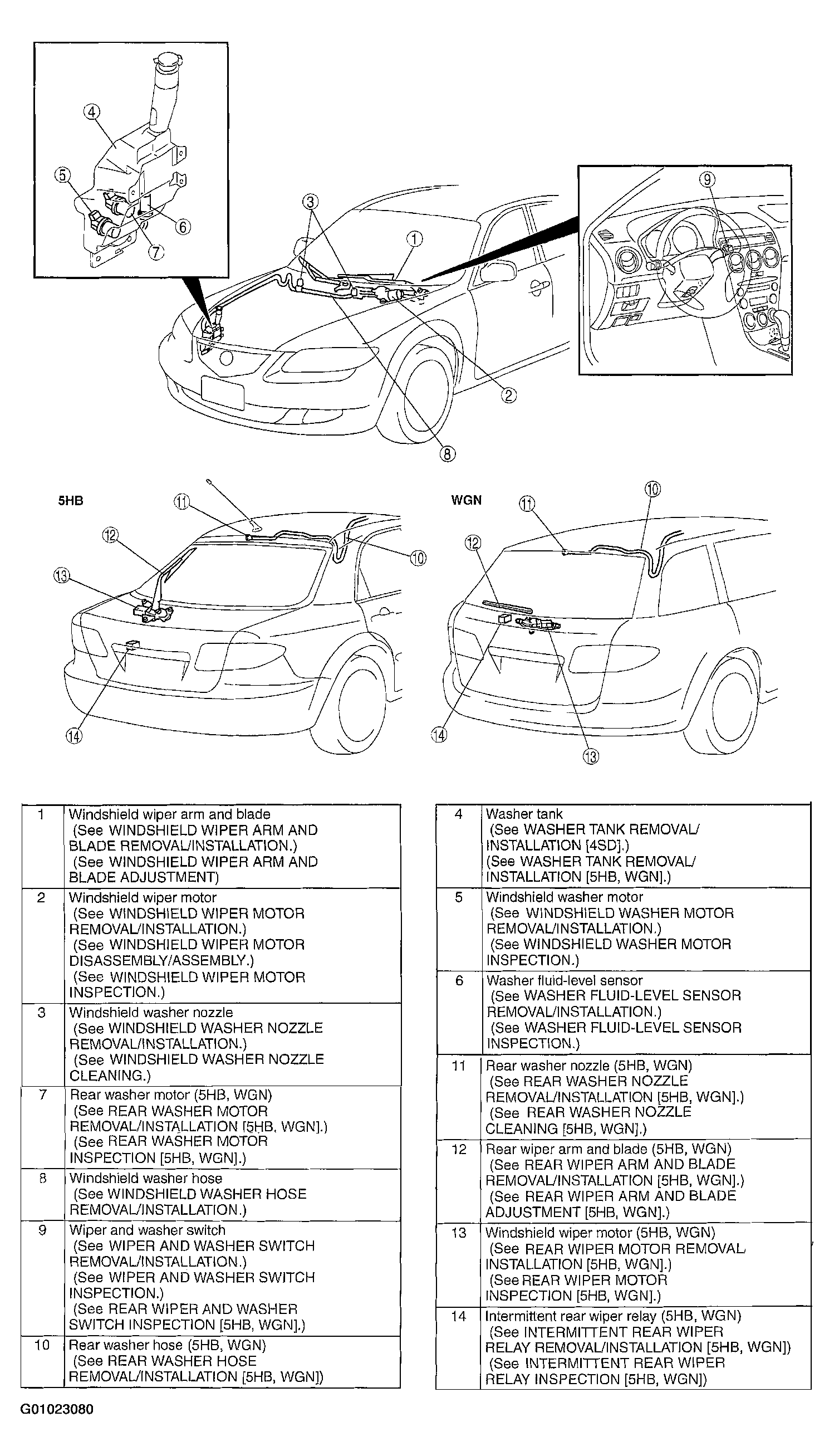

Fig 1: Wiper & Washer System Location Index
Courtesy of MAZDA MOTORS CORP.
