DTC P1631:GRNERATOR Output Signal No Electricity: Notes

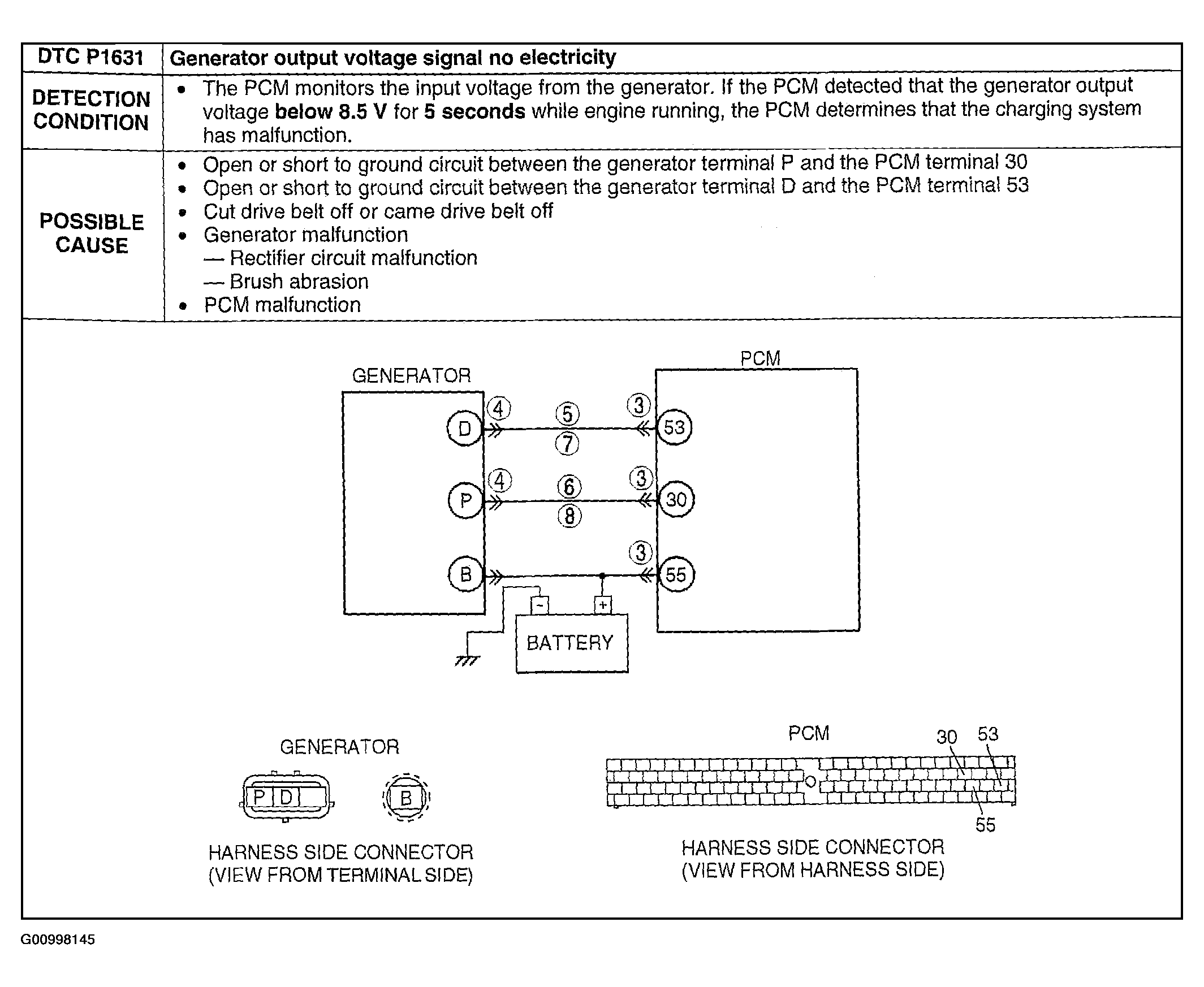

Fig 1: DTC P1631 Detection Condition & Possible Causes Chart
G00998145Courtesy of MAZDA MOTORS CORP.
