Diagnostic procedure

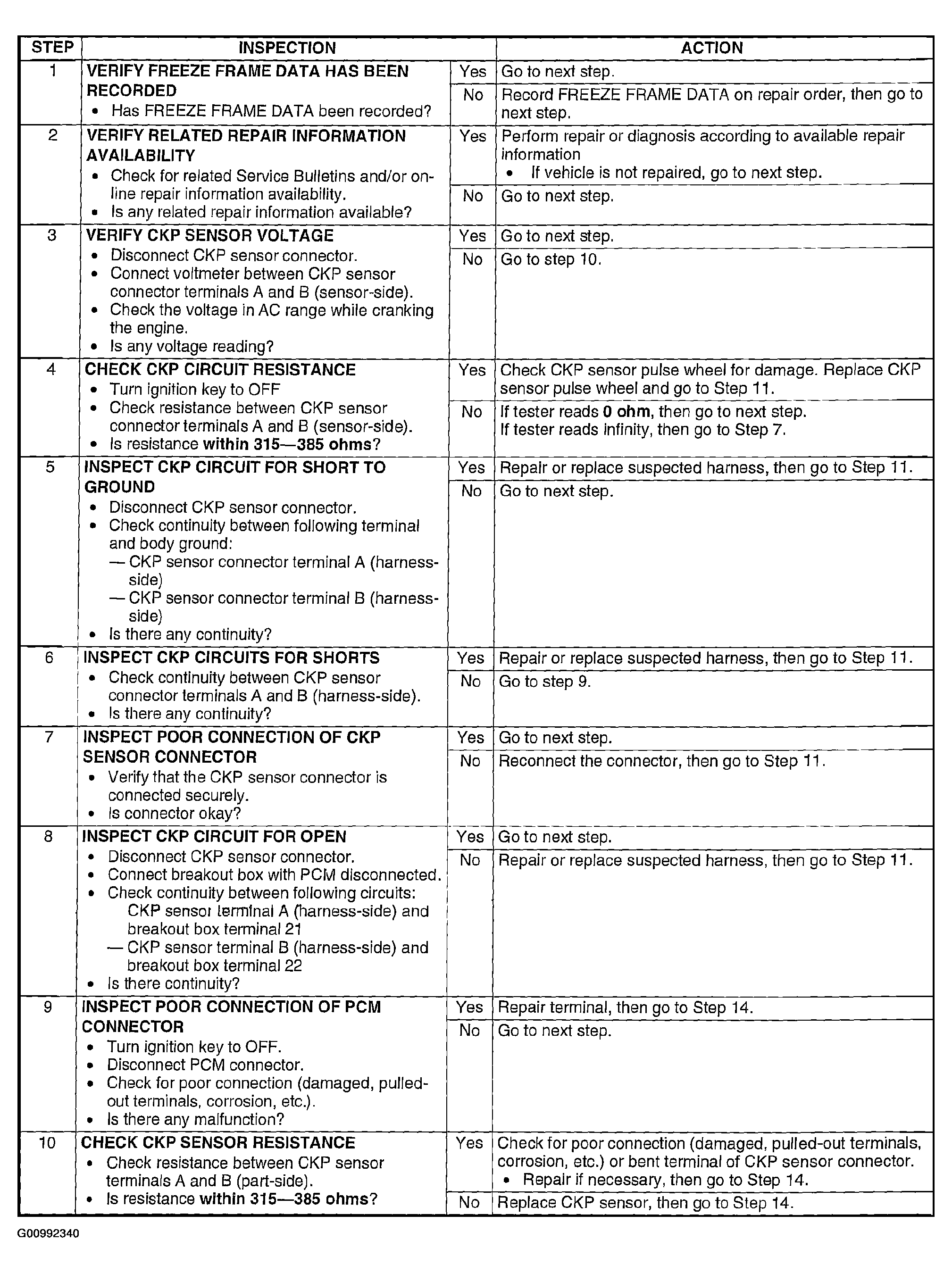

Fig 1: DTC P0335 Diagnostic Procedure Chart (Step 1-10)
G00992340Courtesy of MAZDA MOTORS CORP.

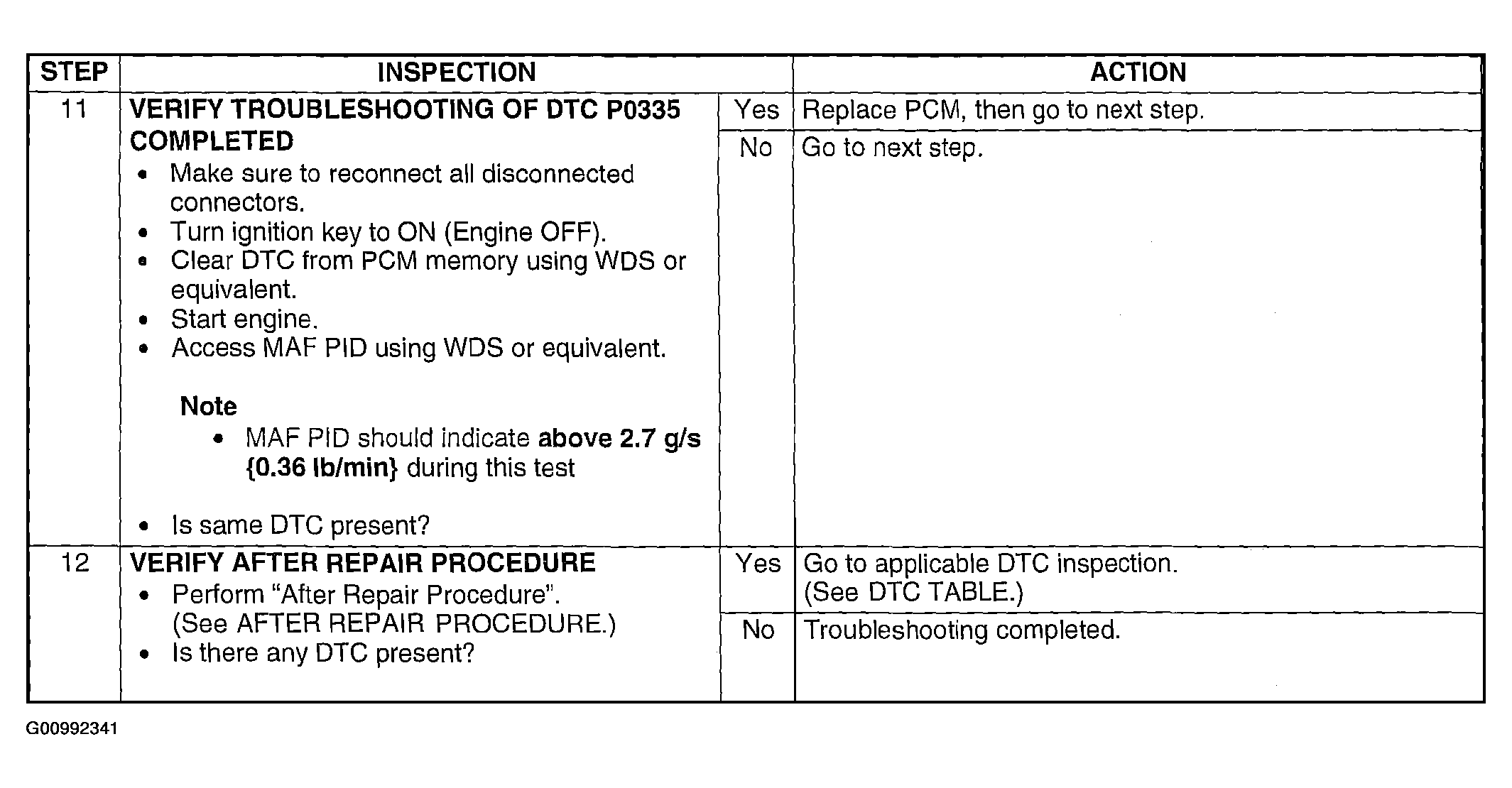

Fig 2: DTC P0335 Diagnostic Procedure Chart (Step 11-12)
G00992341Courtesy of MAZDA MOTORS CORP.
