Downstream HO2S Graph Line Example 3

Equation

RATIO = 26 inversions (upstream HO2S inversions) divide 19 inversions (downstream HO2S inversions) = 1.4 (deteriorated WU-TWC)

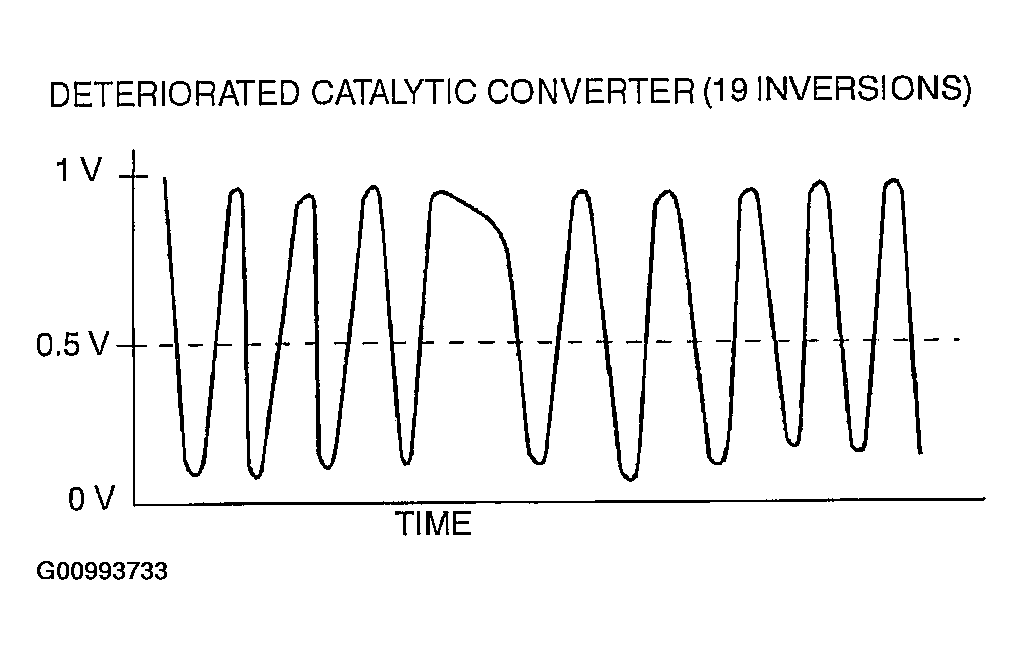

Fig 1: Downstream HO2S Graph Line Example 3
G00993733Courtesy of MAZDA MOTORS CORP.
