EVAP System Leak Detection Pump & Main Relay Connector End View

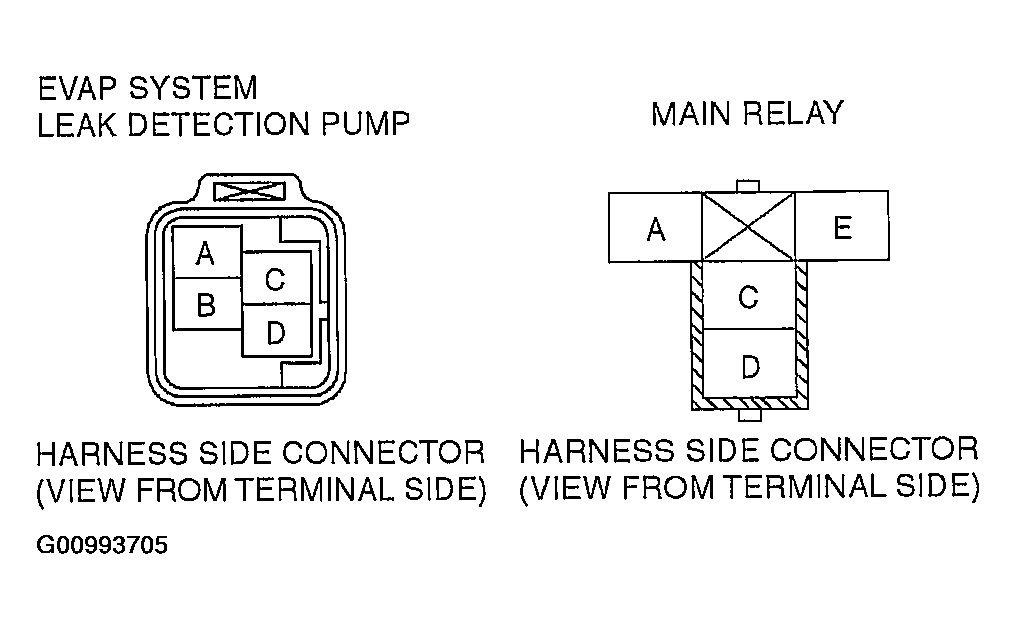

Fig 1: EVAP System Leak Detection Pump & Main Relay Connector End View
Courtesy of MAZDA MOTORS CORP.
