Cruise Control System Pinpoint Test 4: Cruise Control Does Not Disengage When The Clutch Is Applied

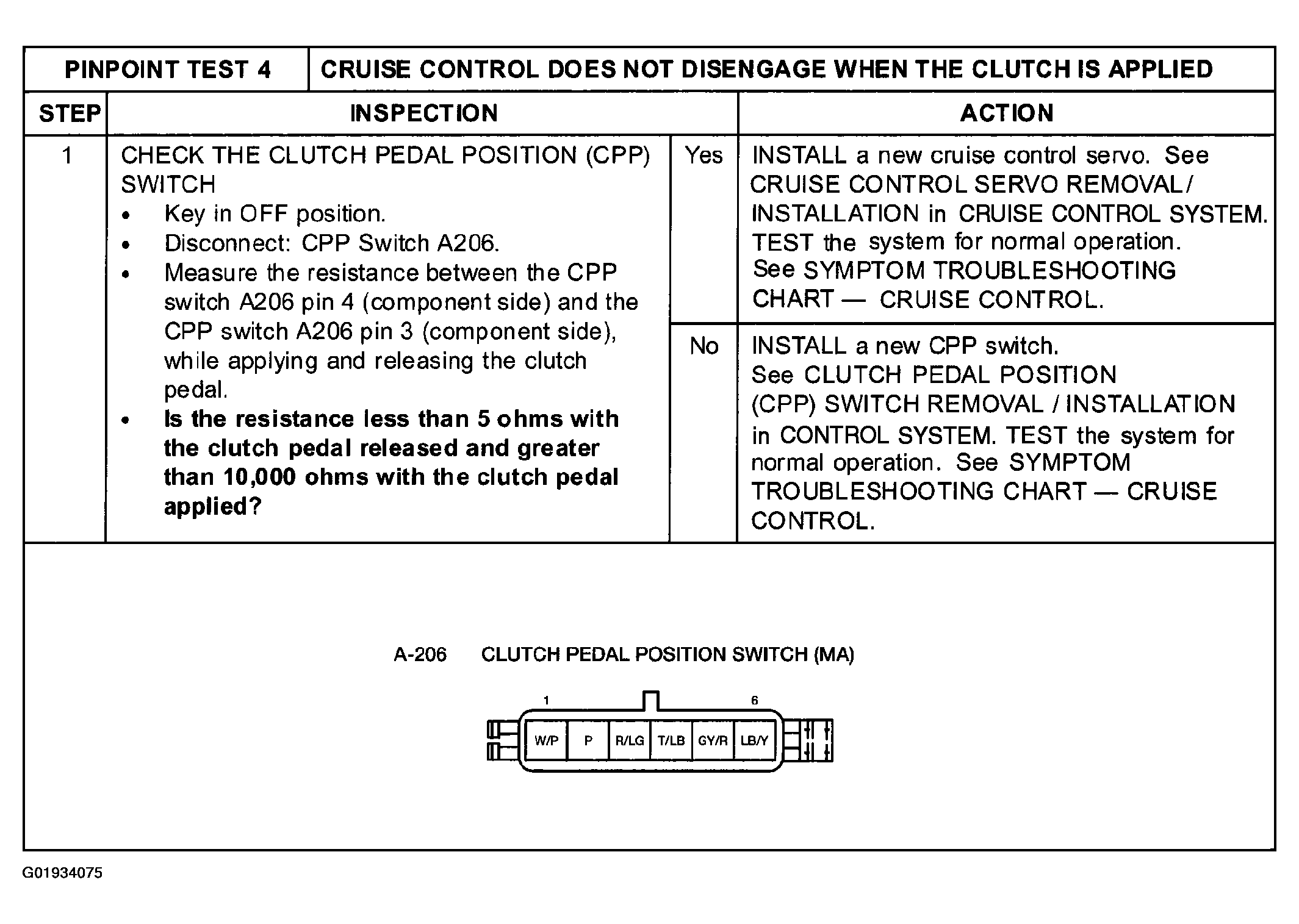

Fig 1: Cruise Control System Pinpoint Test 4: Cruise Control Not Disengage When Clutch Applied
Courtesy of MAZDA MOTORS CORP.
