General Pinpoint Test 3: Malfunction Indicator Lamp (Mil)

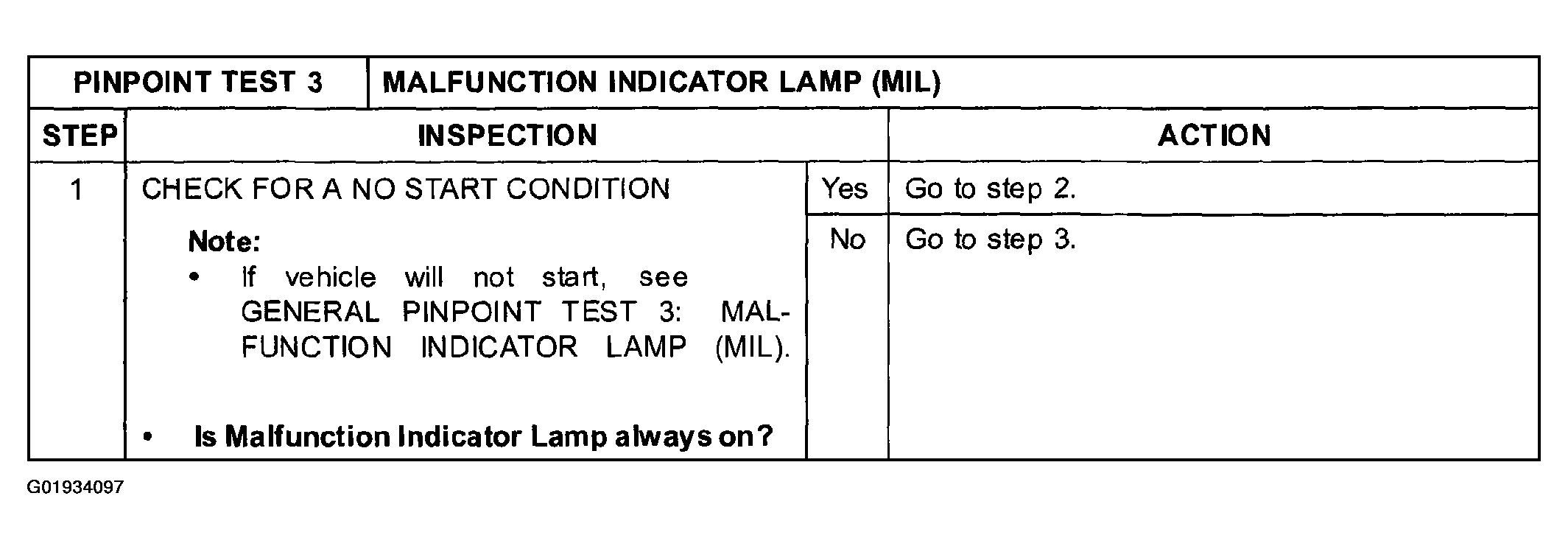

Fig 1: General Pinpoint Test 3: Malfunction Indicator Lamp (Step 1)
Courtesy of MAZDA MOTORS CORP.

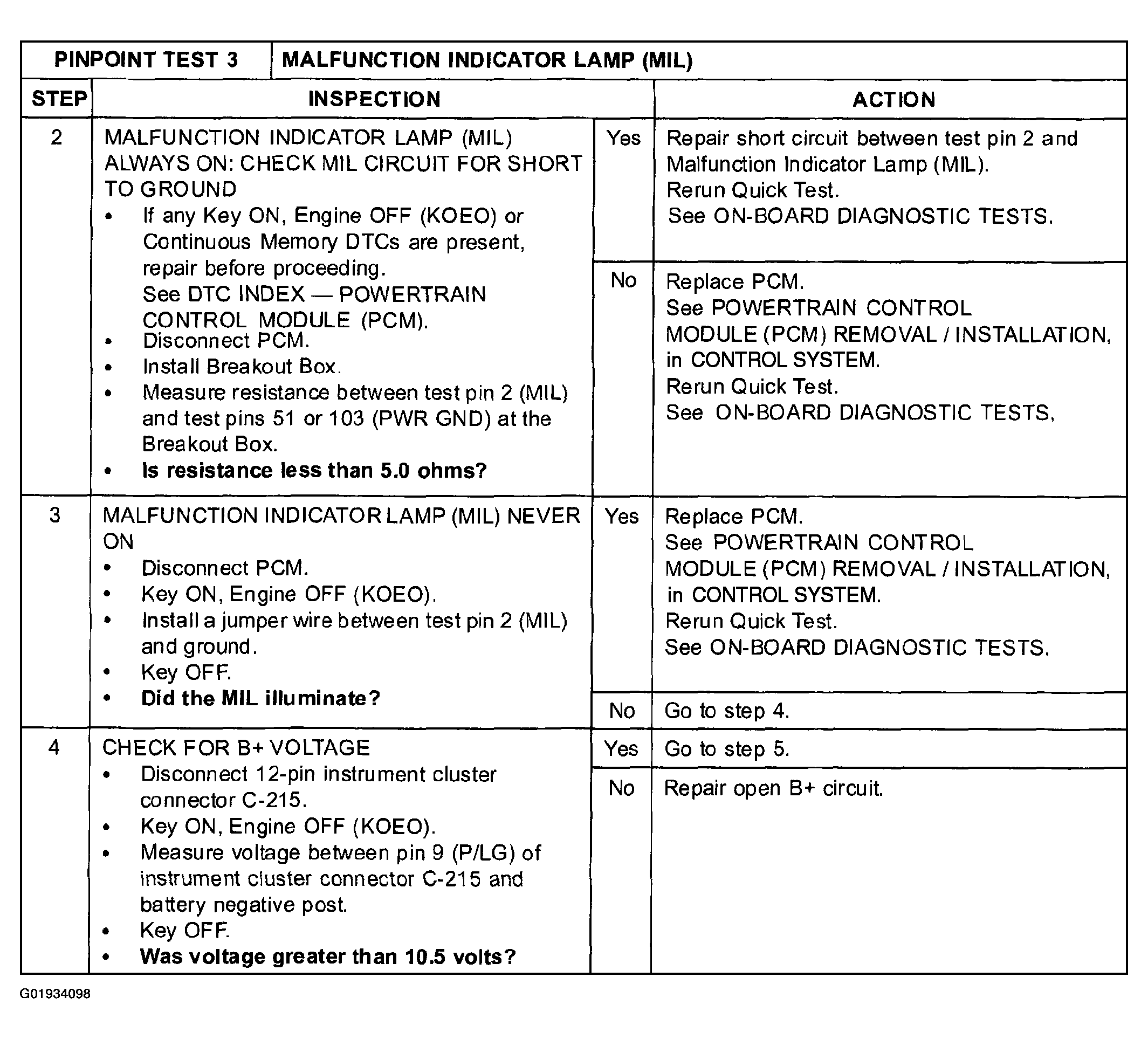

Fig 2: General Pinpoint Test 3: Malfunction Indicator Lamp (Steps 2-4)
Courtesy of MAZDA MOTORS CORP.

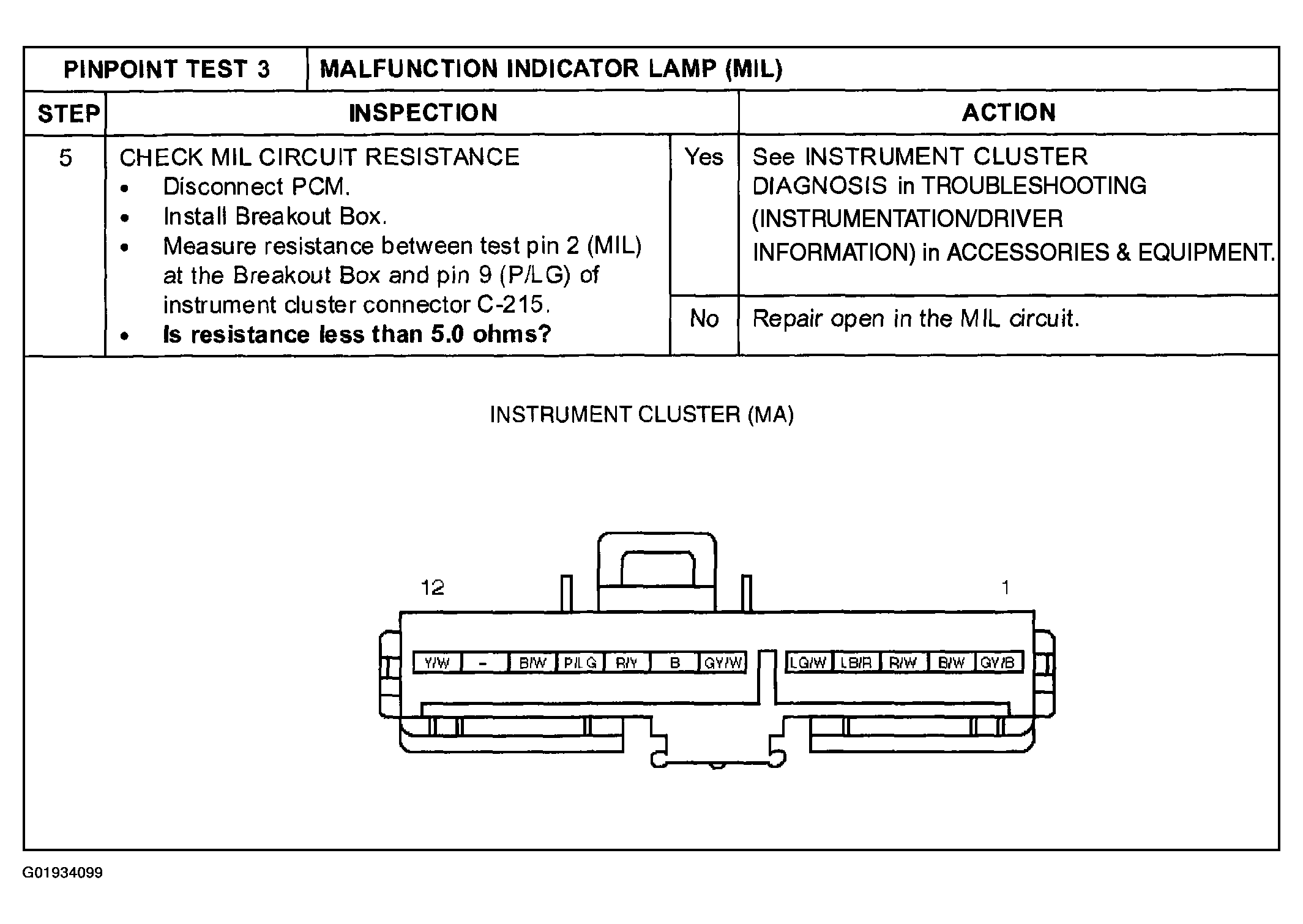

Fig 3: General Pinpoint Test 3: Malfunction Indicator Lamp (Step 5)
Courtesy of MAZDA MOTORS CORP.
