Exhaust System Components -4.0L: Notes

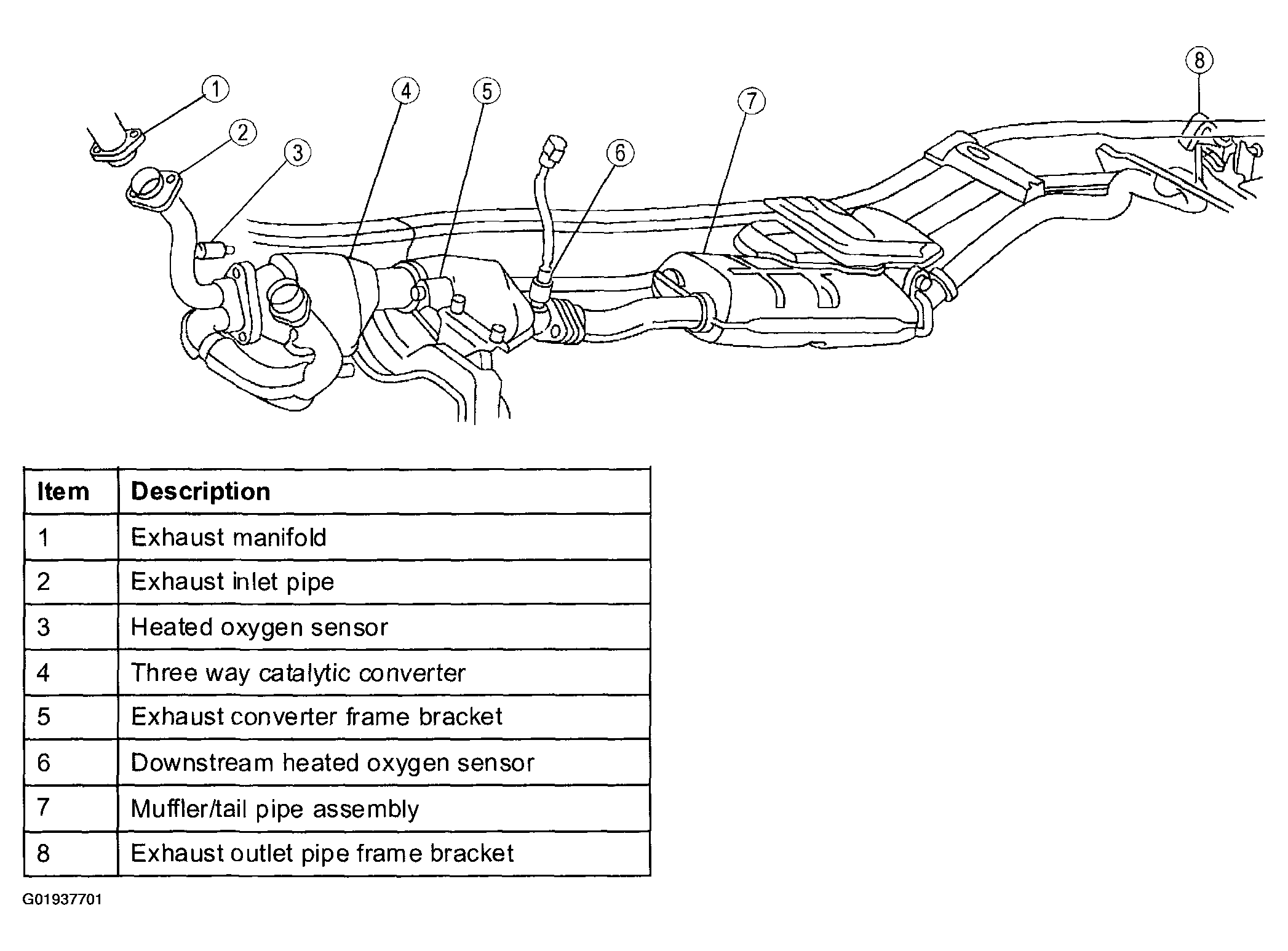

Fig 1: Exhaust System Components -4.0L

G01937701

Courtesy of MAZDA MOTORS CORP.
