Installation Note:

Install the backrest assembly.

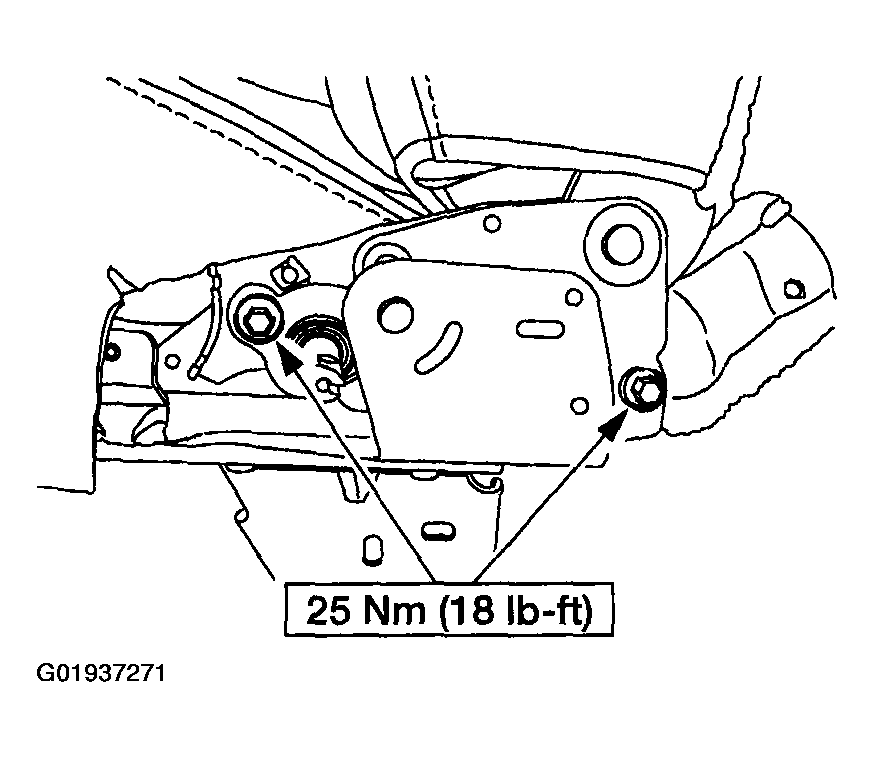

Fig 1: Installing Inboard Rear Backrest Recliner Bolt
Courtesy of MAZDA MOTORS CORP.
Install inboard rear backrest recliner bolt.

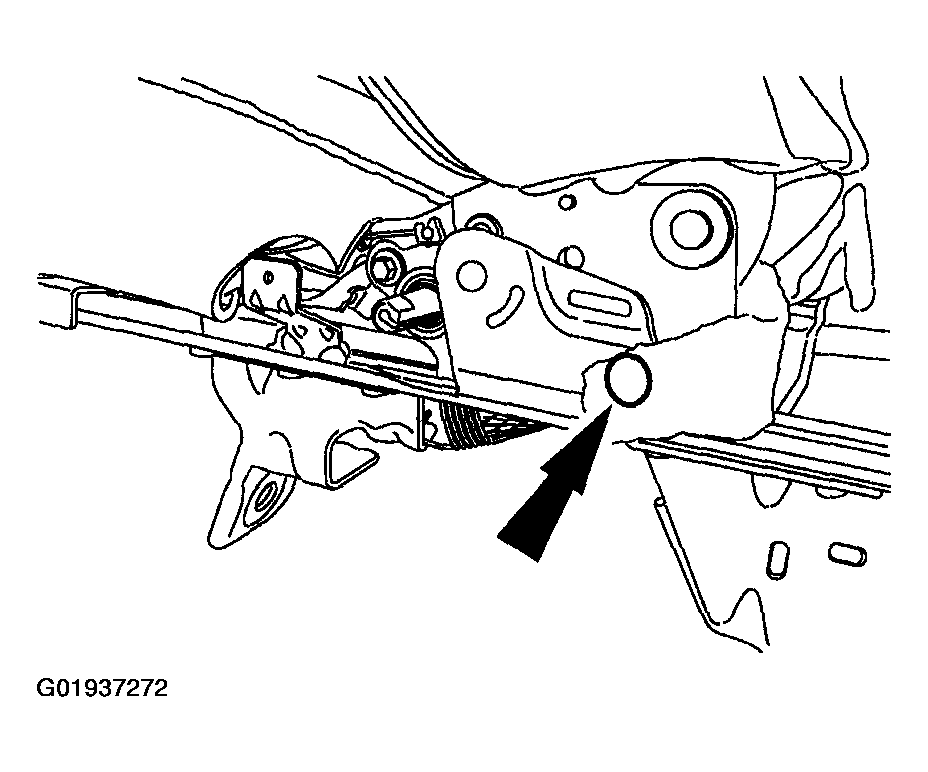

Fig 2: Installing Inboard Rear Bolt Cover
Courtesy of MAZDA MOTORS CORP.
Install the inboard rear bolt cover.

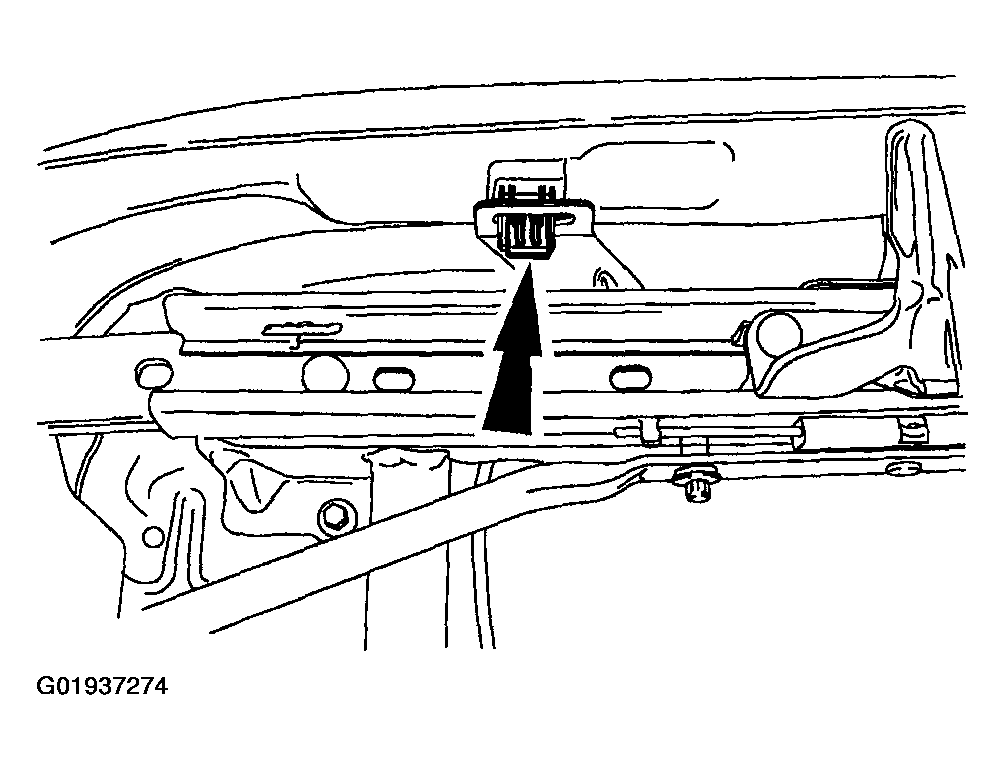

Fig 3: Installing Inboard Front Backrest Recliner Bolt
Courtesy of MAZDA MOTORS CORP.
Install the inboard front backrest recliner bolt.

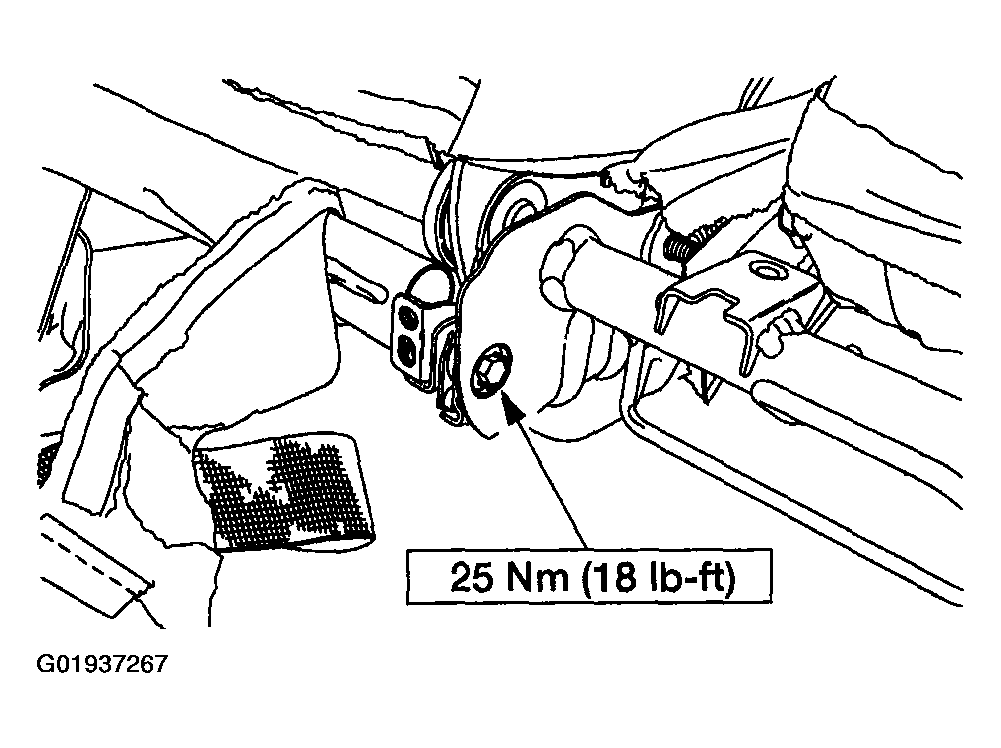

Fig 4: Installing Recliner Cable Anchor
Courtesy of MAZDA MOTORS CORP.
Install the inboard recliner cable end and swivel and install the recliner cable anchor.

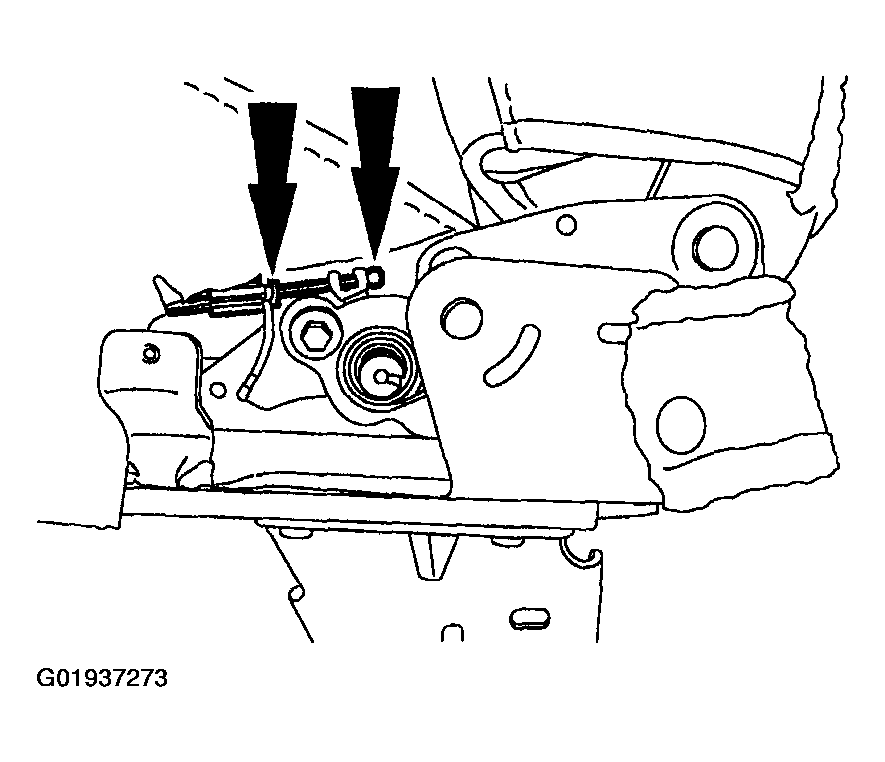

Fig 5: Installing Two Outboard Backrest Recliner Bolts
Courtesy of MAZDA MOTORS CORP.
Install the two outboard backrest recliner bolts.

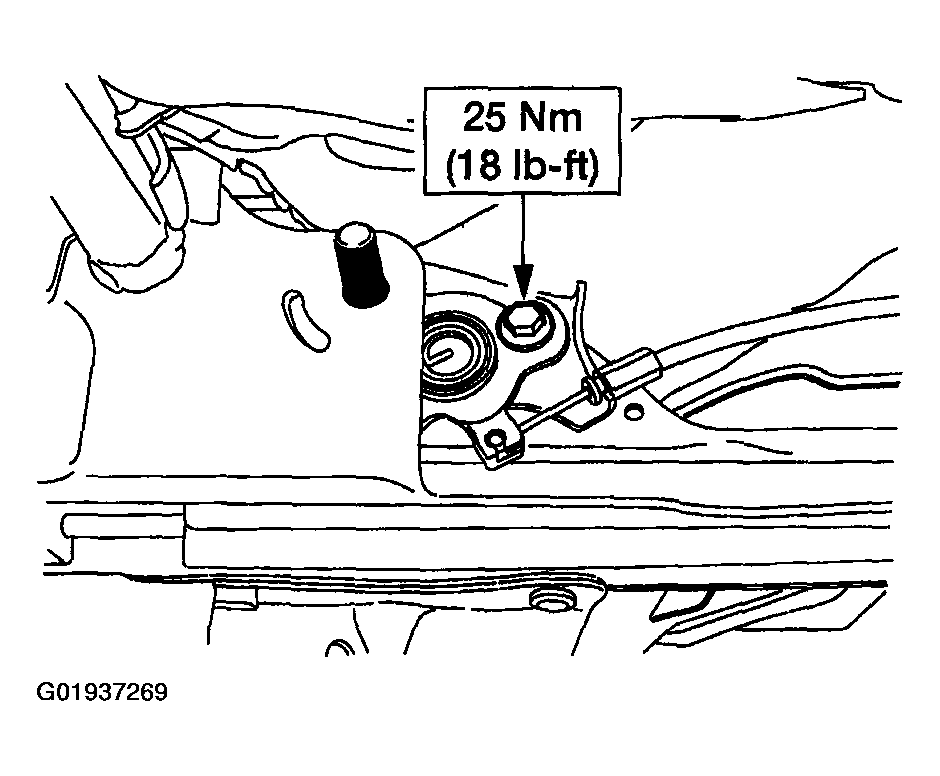

Fig 6: Installing Outboard Pin-Type Retainer
Courtesy of MAZDA MOTORS CORP.
Position material and install the outboard pin-type retainer.

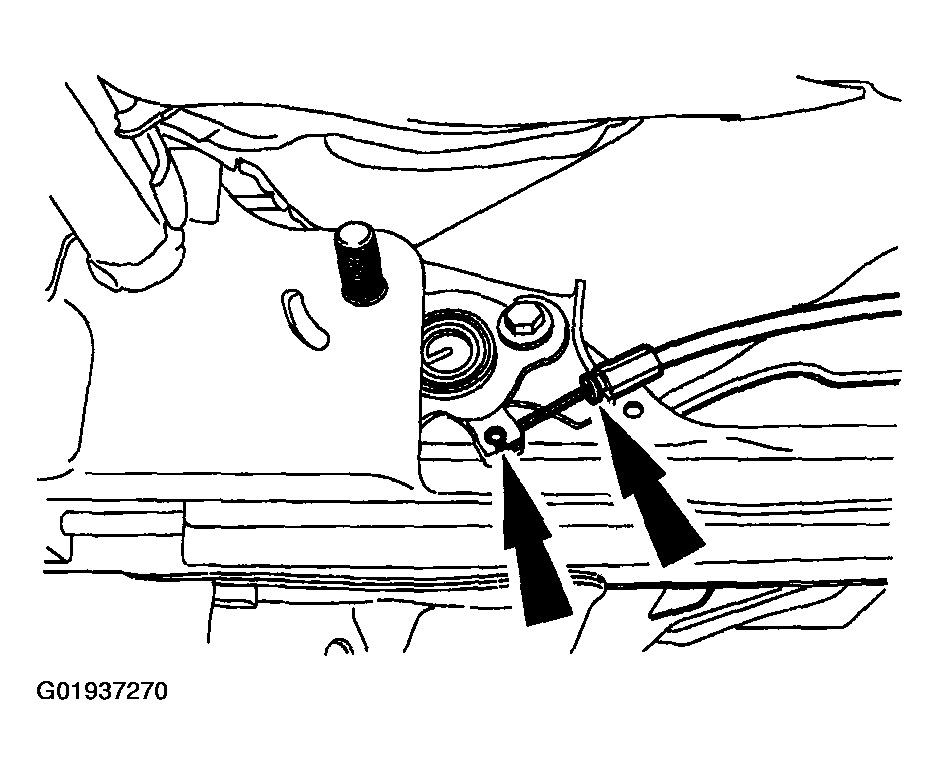

Fig 7: Installing Outboard Recliner Cable End And Swivel
Courtesy of MAZDA MOTORS CORP.
Install the outboard recliner cable end and swivel and install the recliner cable anchor.

Fig 8: Positioning Side Shield And Installing Clips
Courtesy of MAZDA MOTORS CORP.
Position the side shield and install the two clips (one shown).

Fig 9: Installing Front Side Shield Screw
Courtesy of MAZDA MOTORS CORP.
Install the front side shield screw.

Fig 10: Installing Screw On Side Shield
Courtesy of MAZDA MOTORS CORP.
Install the screw on the side shield.

Fig 11: Installing Recliner Handle
Courtesy of MAZDA MOTORS CORP.
Install the recliner handle and install the screw.
Install the 60 percent bench armrest. See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION .
Install the 60 percent bench seat. See SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION .
Repower the SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
