Passive Anti-Theft Transceiver Connector End View (C2097)

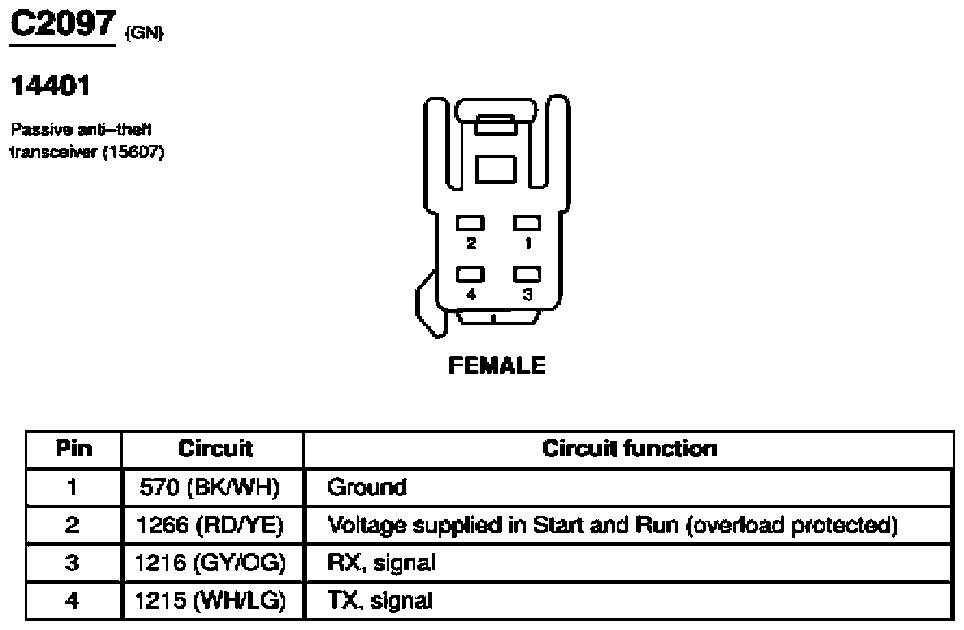

Fig 1: Passive Anti-Theft Transceiver Connector End View (C2097)
G07839453Courtesy of FORD MOTOR CO.
