Charging System Pinpoint Test 6: The Charging System Warning Indicator Flickers Or Is Intermittent

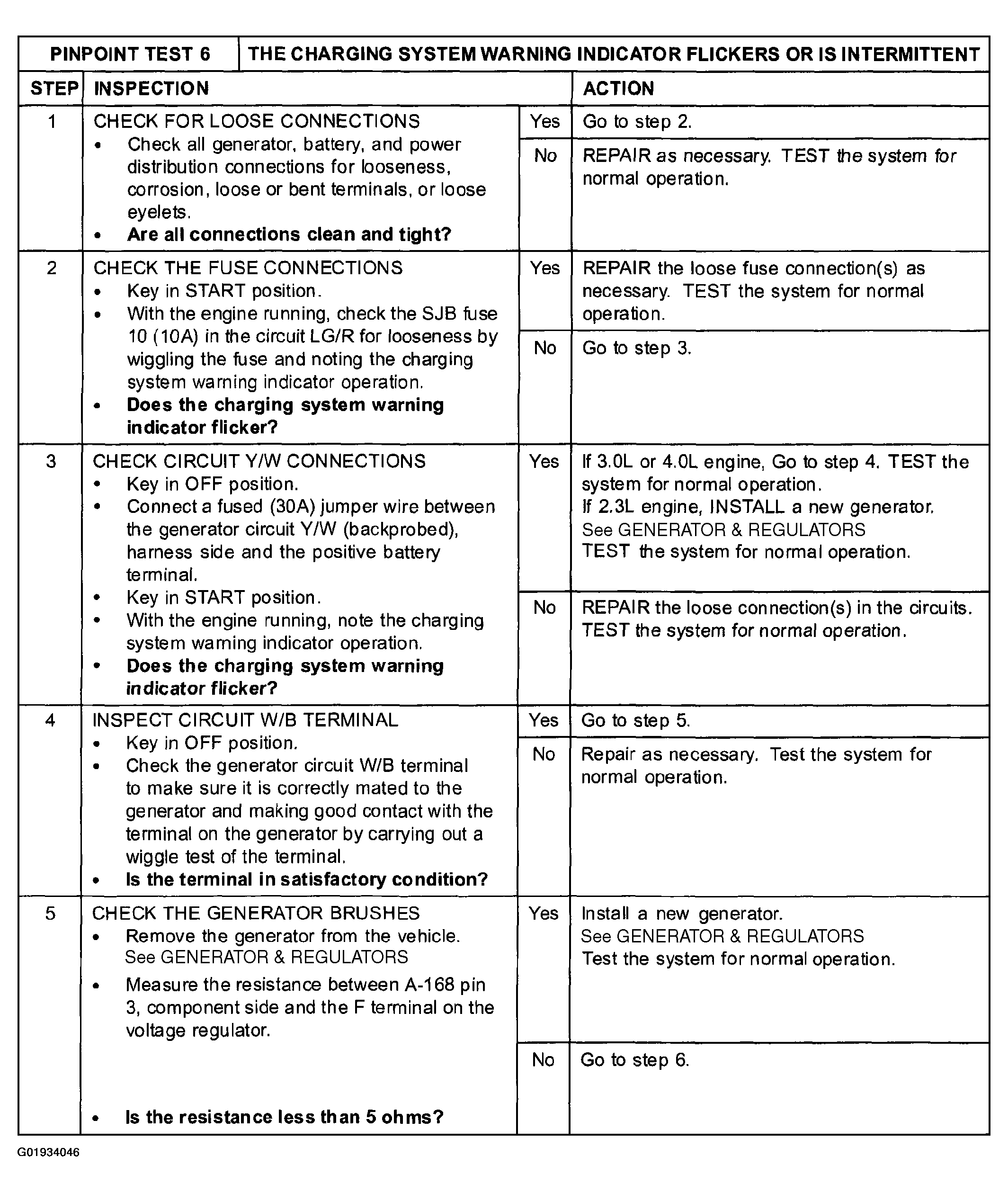

Fig 1: Charging System Pinpoint Test 6: Charging System Warning Indicator Flickers (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

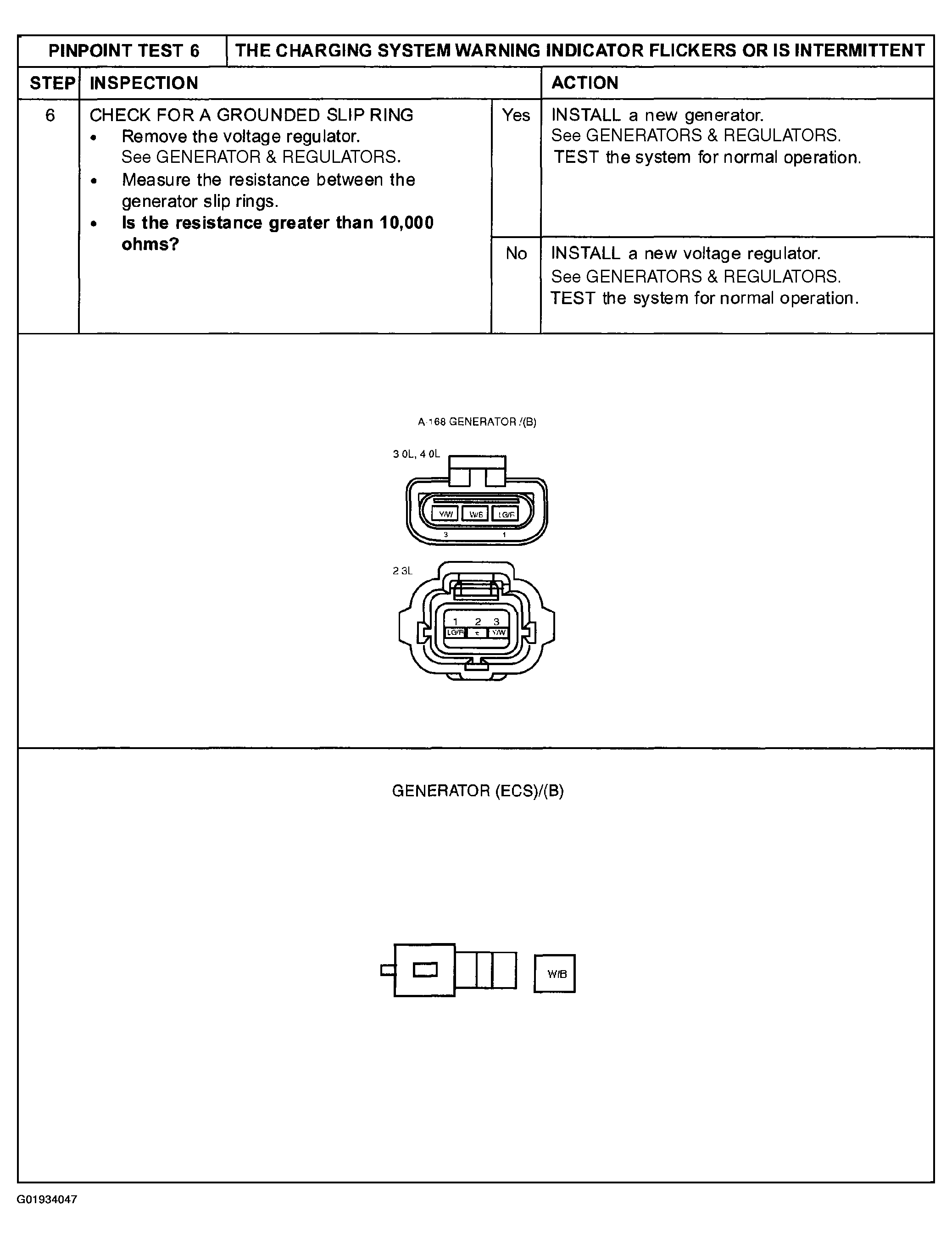

Fig 2: Charging System Pinpoint Test 6: Charging System Warning Indicator Flickers (Step 6)
Courtesy of MAZDA MOTORS CORP.
