Seat Buckle Rear Removal/Installation - Cab Plus

  1. Remove the center facing rear seat. See SEAT REAR - CENTER FACING REMOVAL/INSTALLATION .
  2. Unhook the trim cover retainer and reposition seat back trim cover.
  3. Remove the seat back trim cover and the seat belt buckle.
  4. Drill out the rivets (1).
  5. Remove the seat back trim cover (2) and the seat belt buckle.

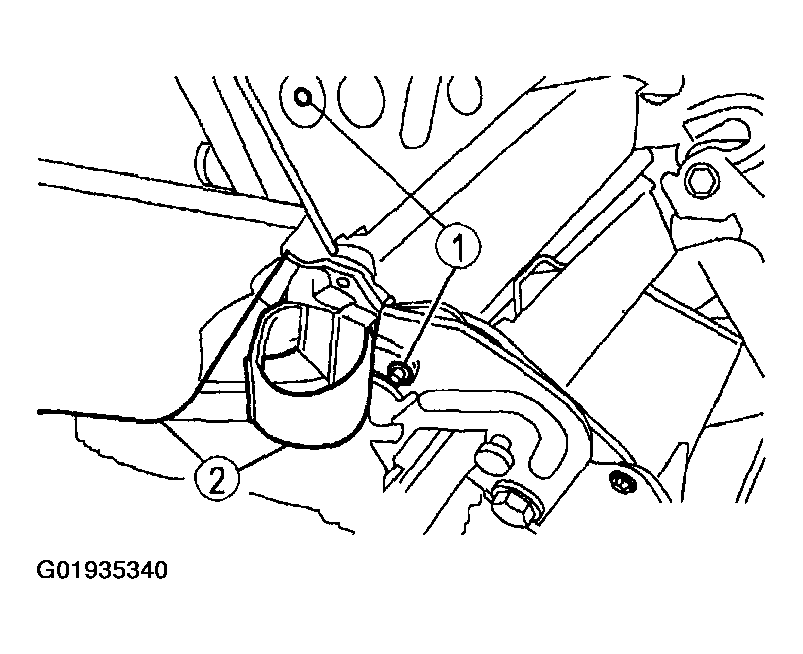

    Fig 1: Removing & Installing Rear Seat Buckle - Cab Plus
    G01935340Courtesy of MAZDA MOTORS CORP.
  6. Install in reverse order of removal.
