Symptom Troubleshooting [Transmission]
>>
Symptom Troubleshooting Chart - Automatic Transmission External Controls
>>
Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release/Lock Properly
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release/Lock Properly

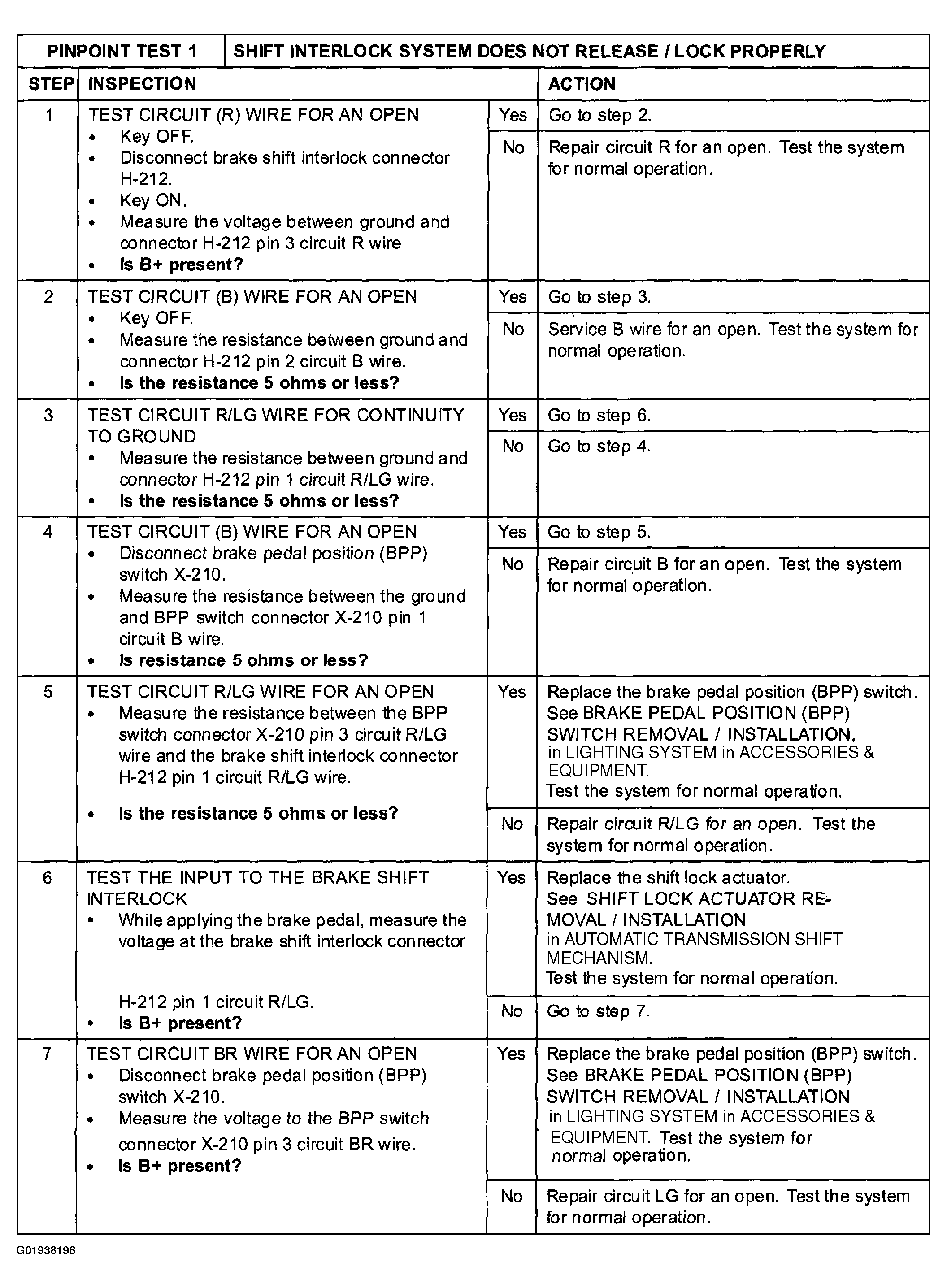

Fig 1: Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release/Lock Properly
Courtesy of MAZDA MOTORS CORP.
