DTC P2101: Throttle Actuator Circuit Range/Performance: Notes

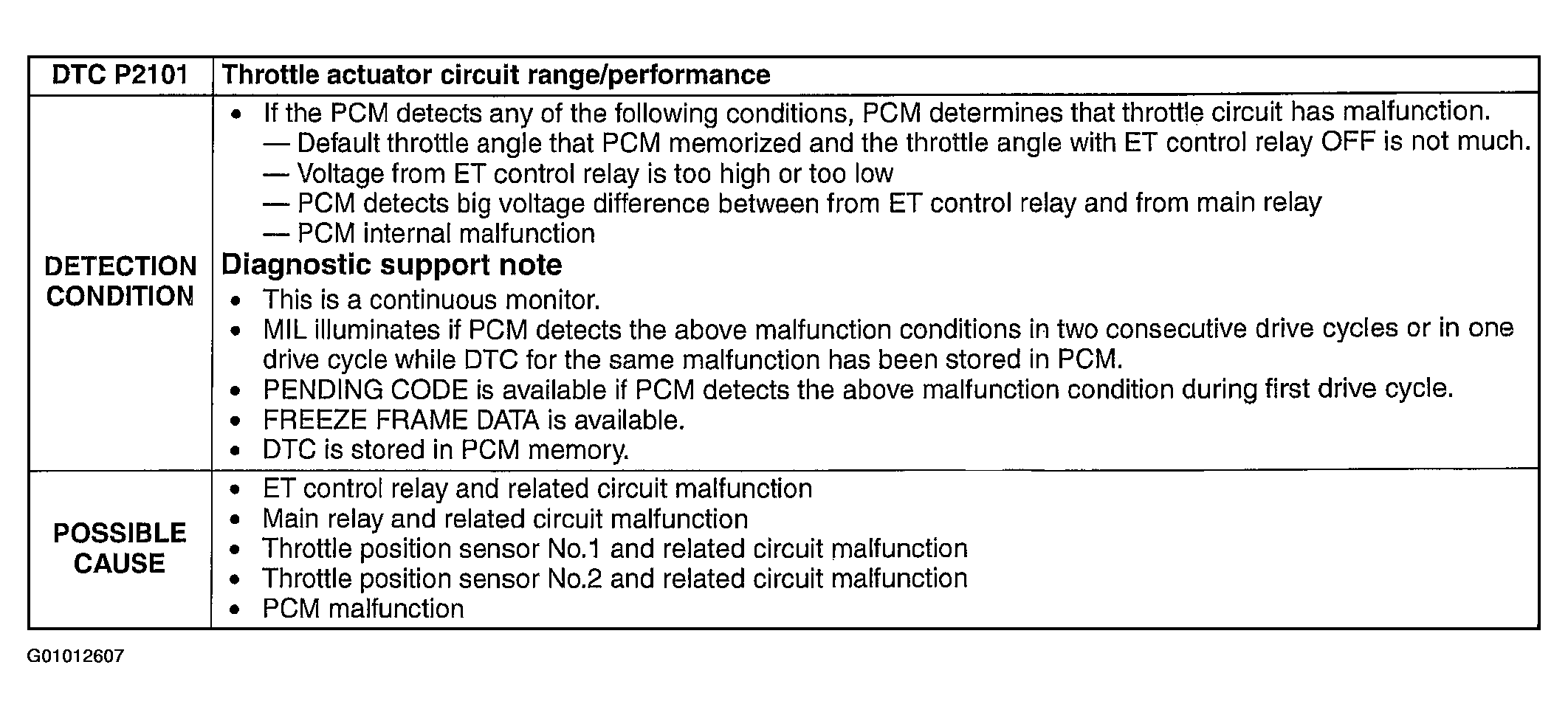

Fig 1: DTC P2101 - Detection Conditions & Possible Causes
G01012607Courtesy of MAZDA MOTORS CORP.
