DTC P0850: Neutral Switch Circuit Malfunction (Mt)
>>
Notes
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
DTC P0850: Neutral Switch Circuit Malfunction (Mt): Notes

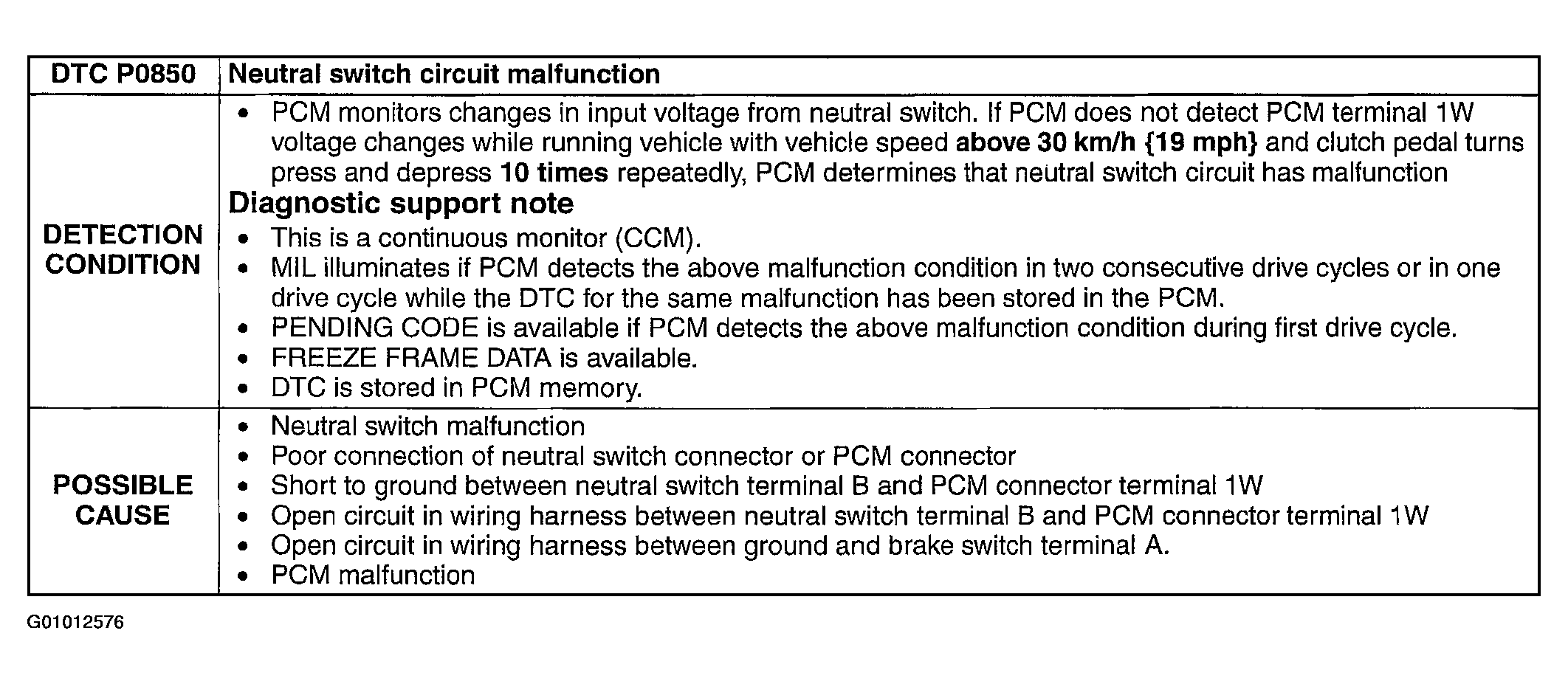

Fig 1: DTC P0850 - Detection Conditions & Possible Causes
Courtesy of MAZDA MOTORS CORP.

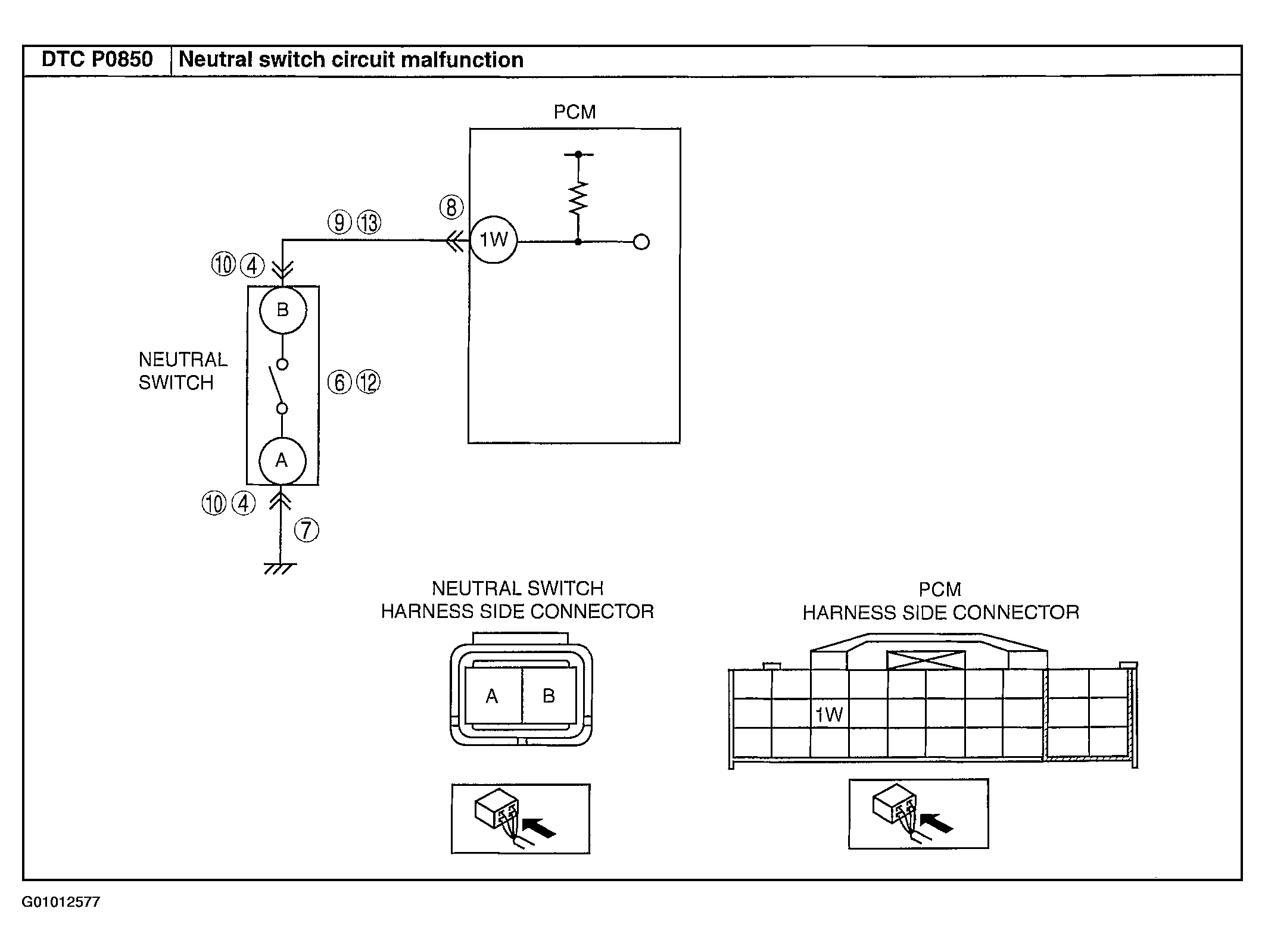

Fig 2: DTC P0850 - Circuit Identification & Connector Views
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
