DTC P0482: Fan Relay No. 4 Control Circuit Malfunction
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC P0482: Fan Relay No. 4 Control Circuit Malfunction: Notes

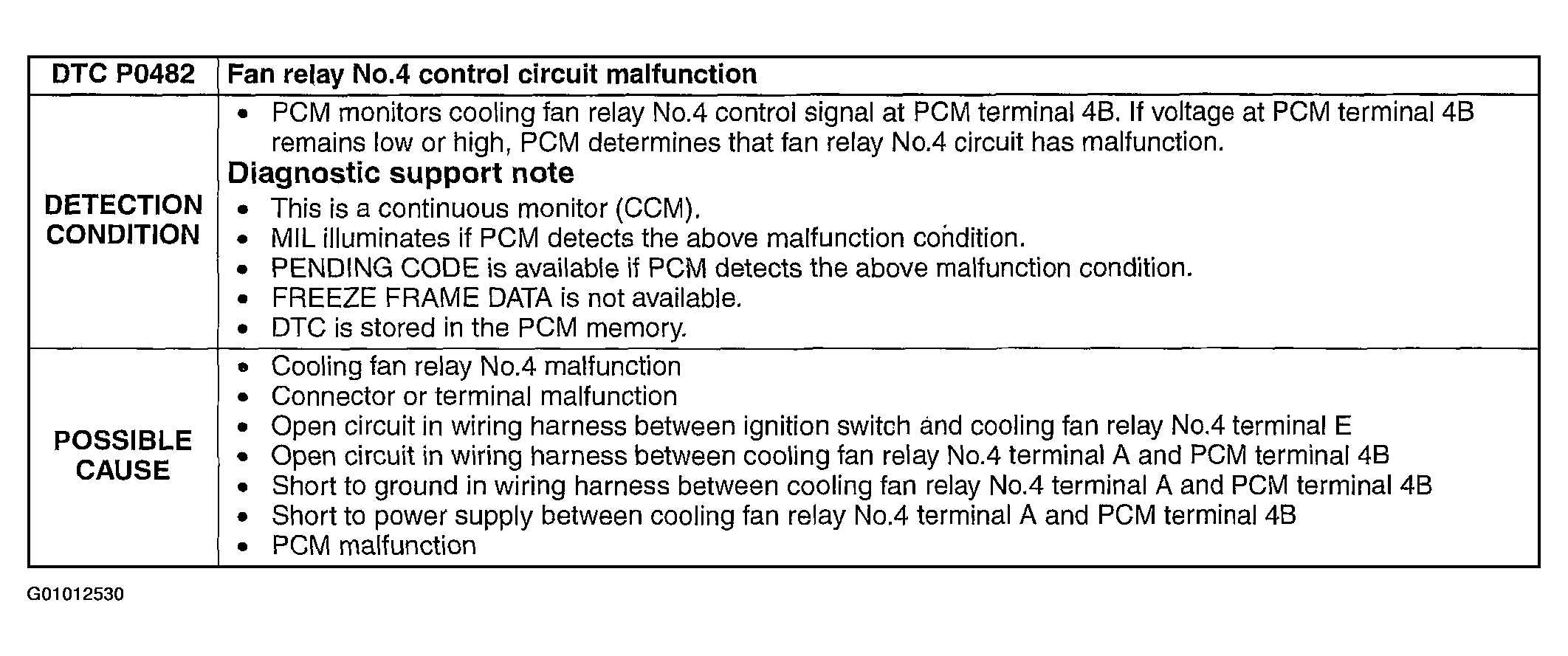

Fig 1: DTC P0482 - Detection Conditions & Possible Causes
Courtesy of MAZDA MOTORS CORP.

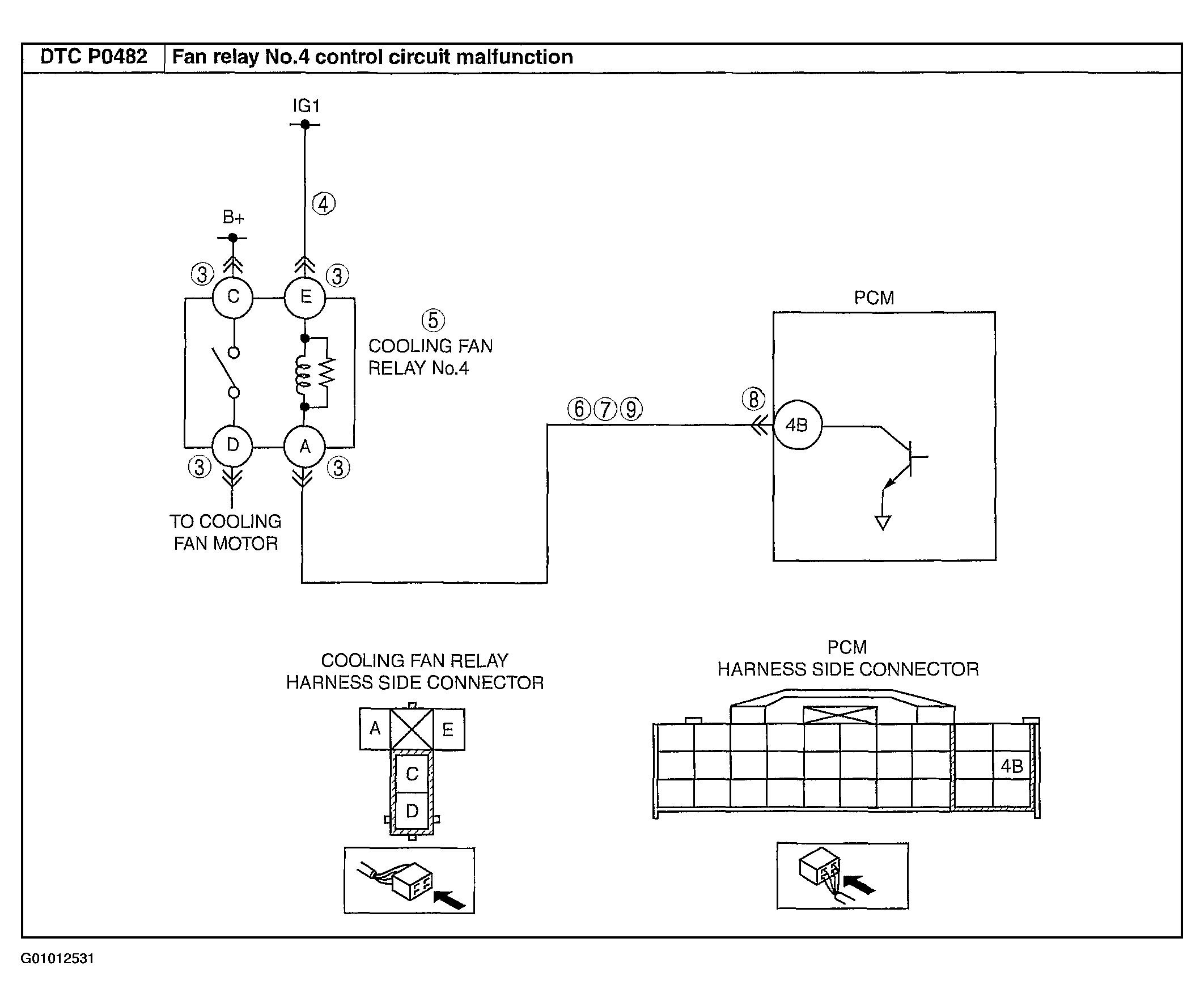

Fig 2: DTC P0482 - Circuit Identification & Connector Views
Courtesy of MAZDA MOTORS CORP.
