Diagnostic procedure

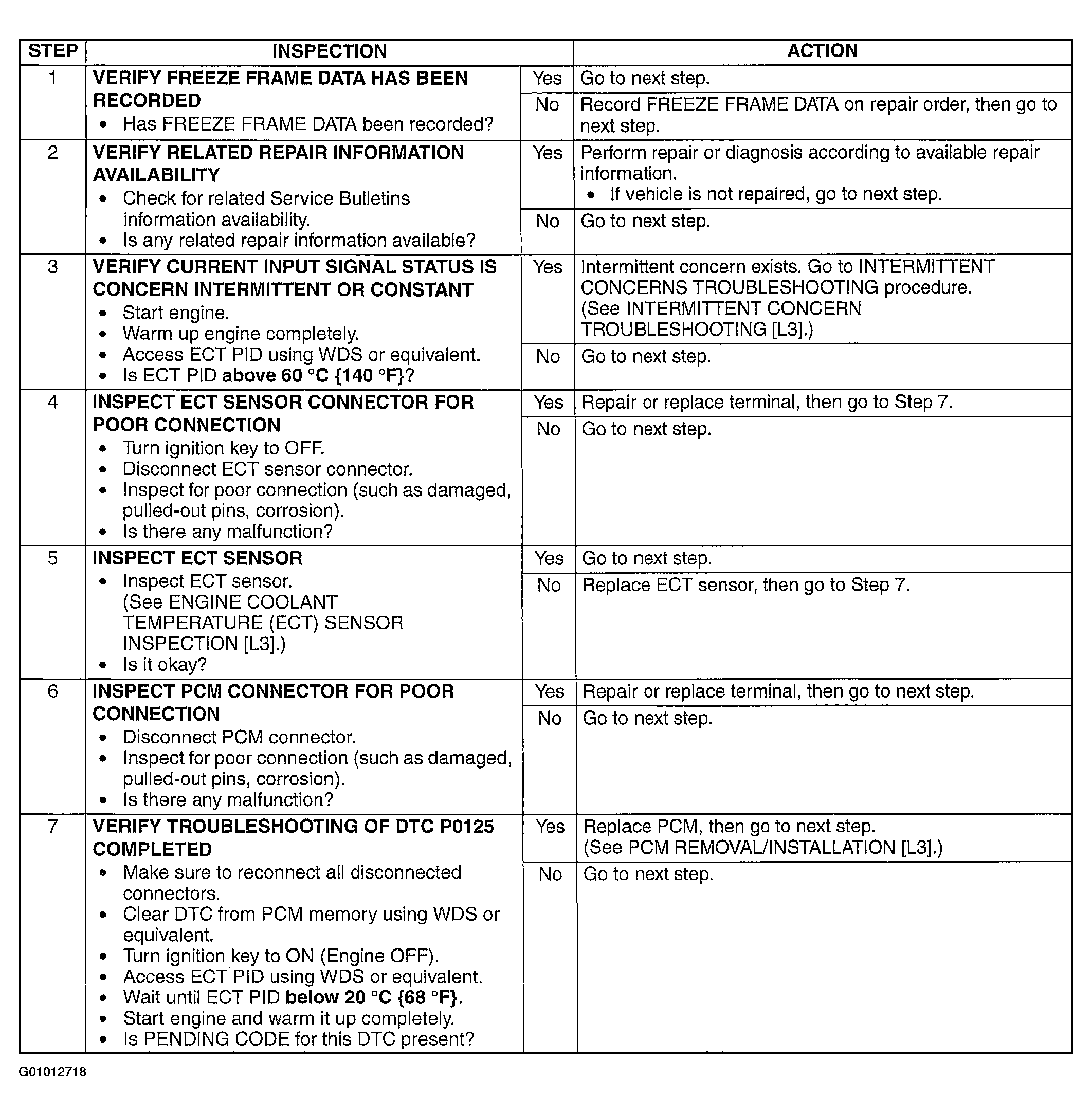

Fig 1: DTC P0125 - Diagnostic Procedure (Steps 1-7)
G01012718Courtesy of MAZDA MOTORS CORP.

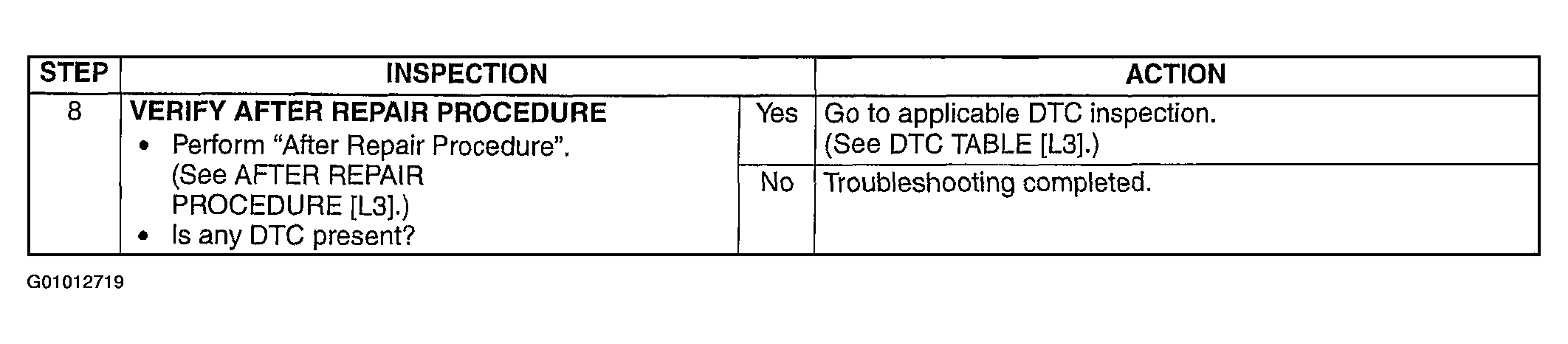

Fig 2: DTC P0125 - Diagnostic Procedure (Step 8)
G01012719Courtesy of MAZDA MOTORS CORP.
