On-Board Diagnostic [Engine Control System L3)
>>
DTC P0222: TP Sensor No. 2 Circuit Low Input
>>
Diagnostic procedure
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic procedure

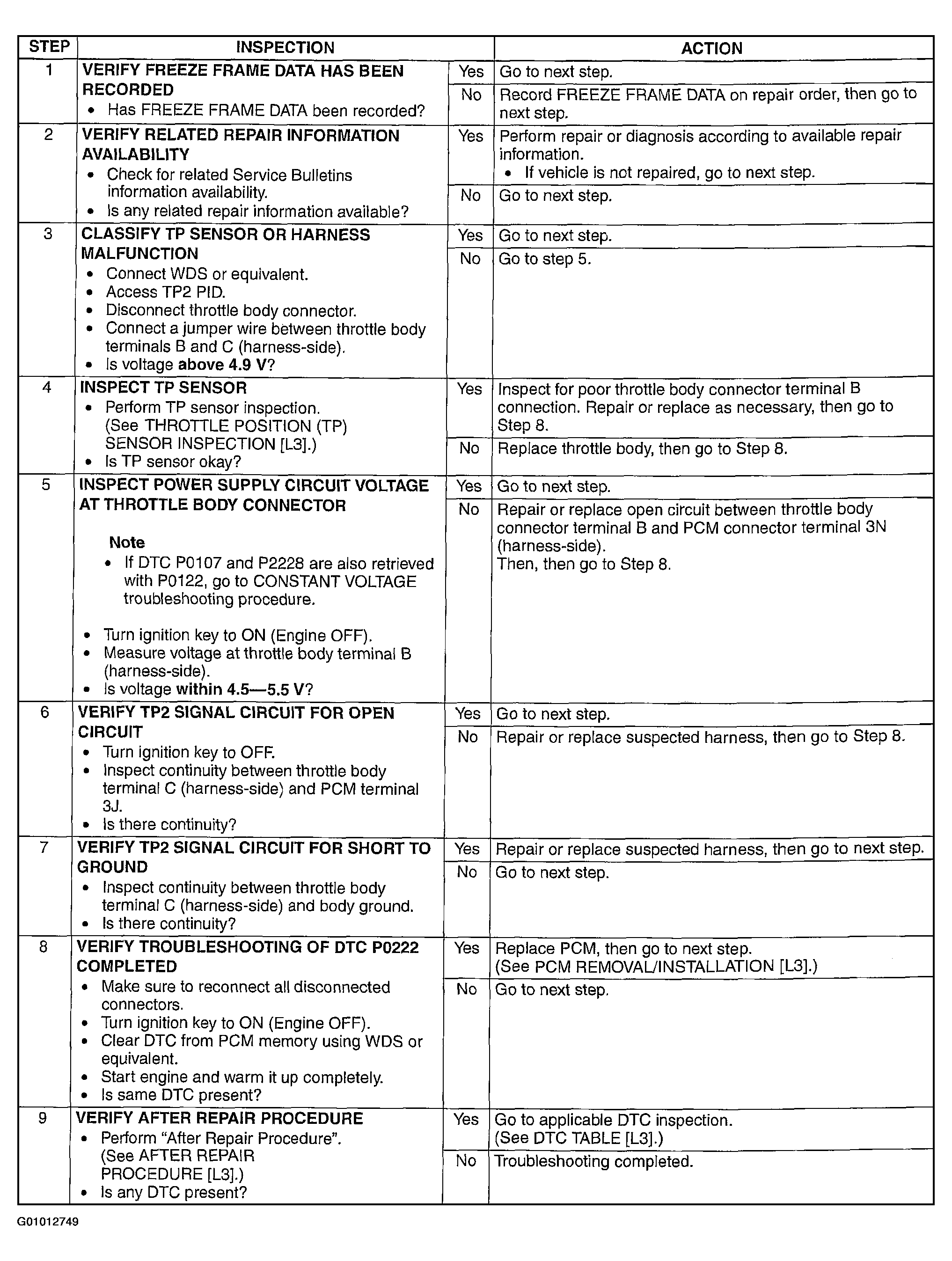

Fig 1: DTC P0222 - Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
