Pcm Removal/Installation

NOTE:
  • For PCM replacement, setup the WDS and perform the PCM configuration. (See PCM REPLACEMENT .)
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated.
  3. Install in the reverse order of removal.

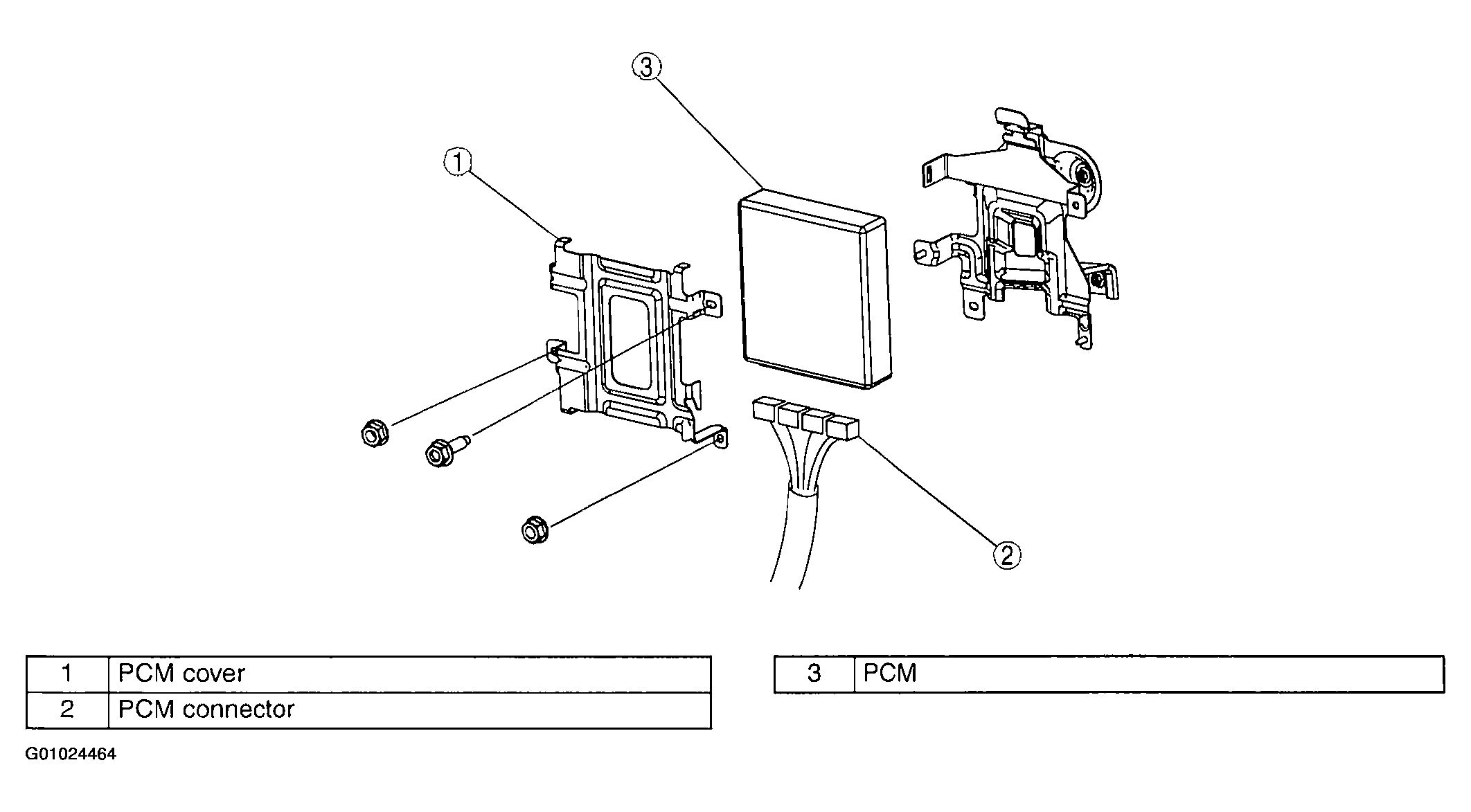

Fig 1: Locating & Removing PCM
G01024464Courtesy of MAZDA MOTORS CORP.
