PID/DATA Monitor Table (Reference)

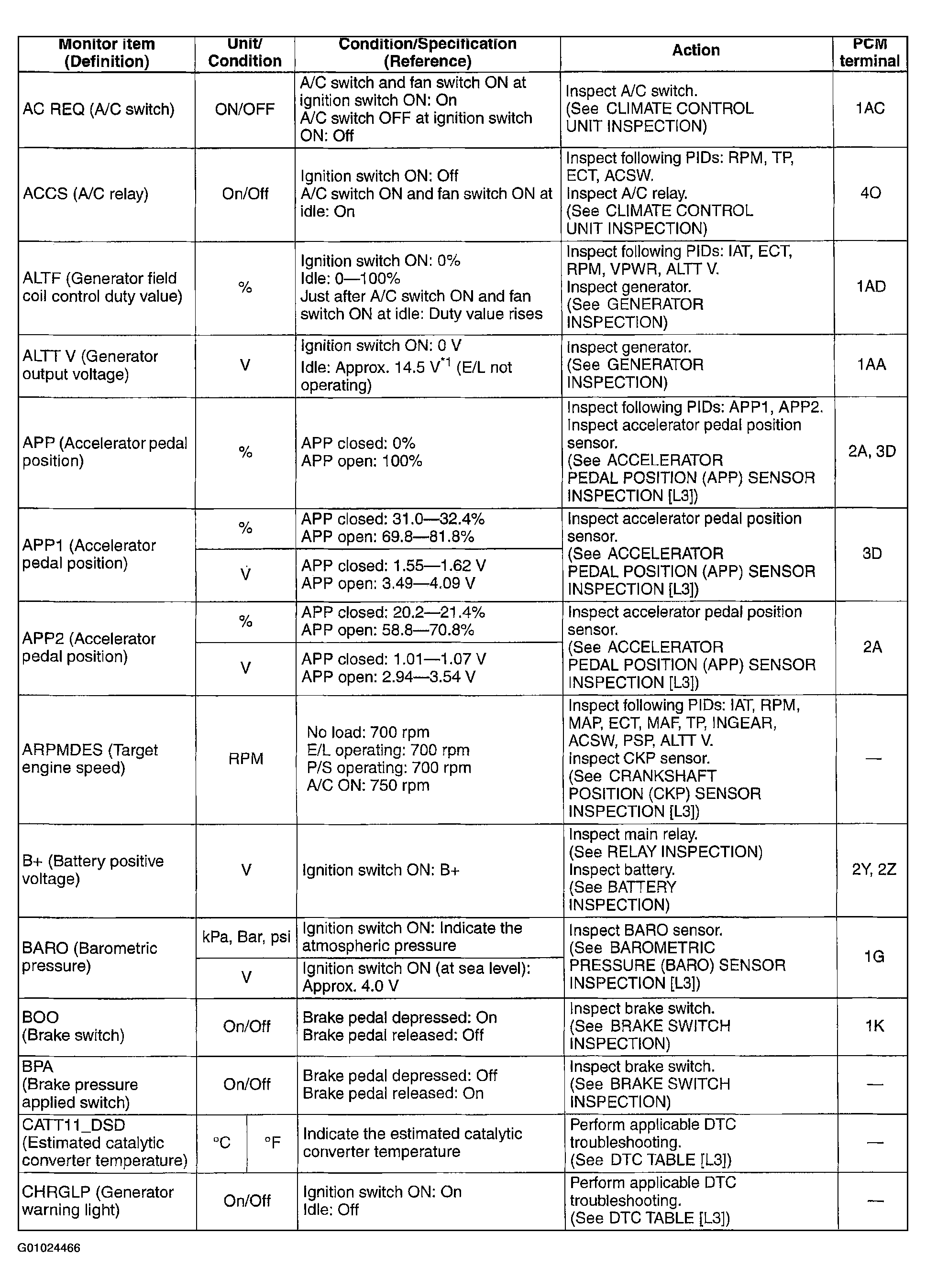

Fig 1: PID/DATA Monitor Reference Table (1 Of 6)

G01024466

Courtesy of MAZDA MOTORS CORP.

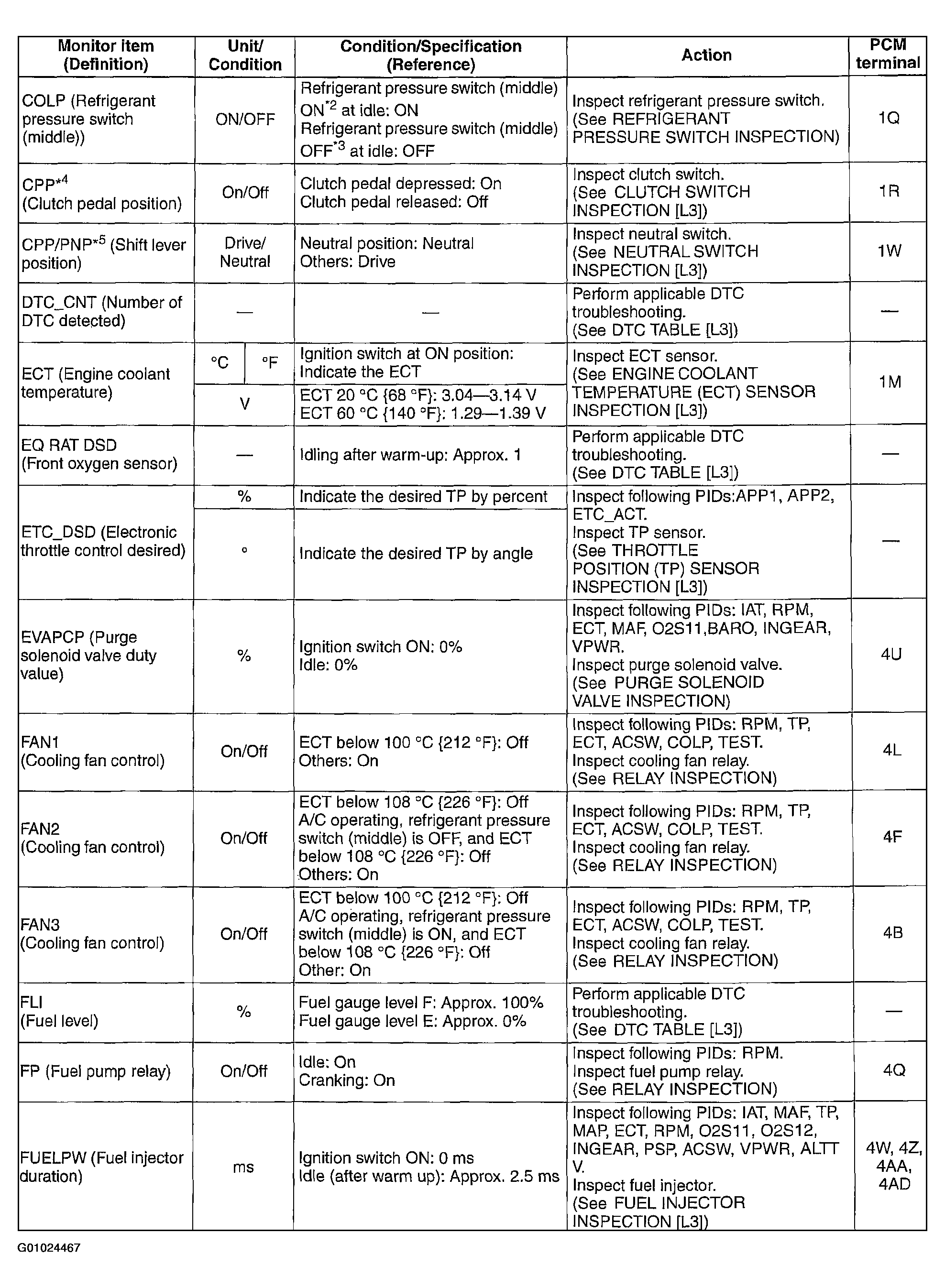

Fig 2: PID/DATA Monitor Reference Table (2 Of 6)

G01024467

Courtesy of MAZDA MOTORS CORP.

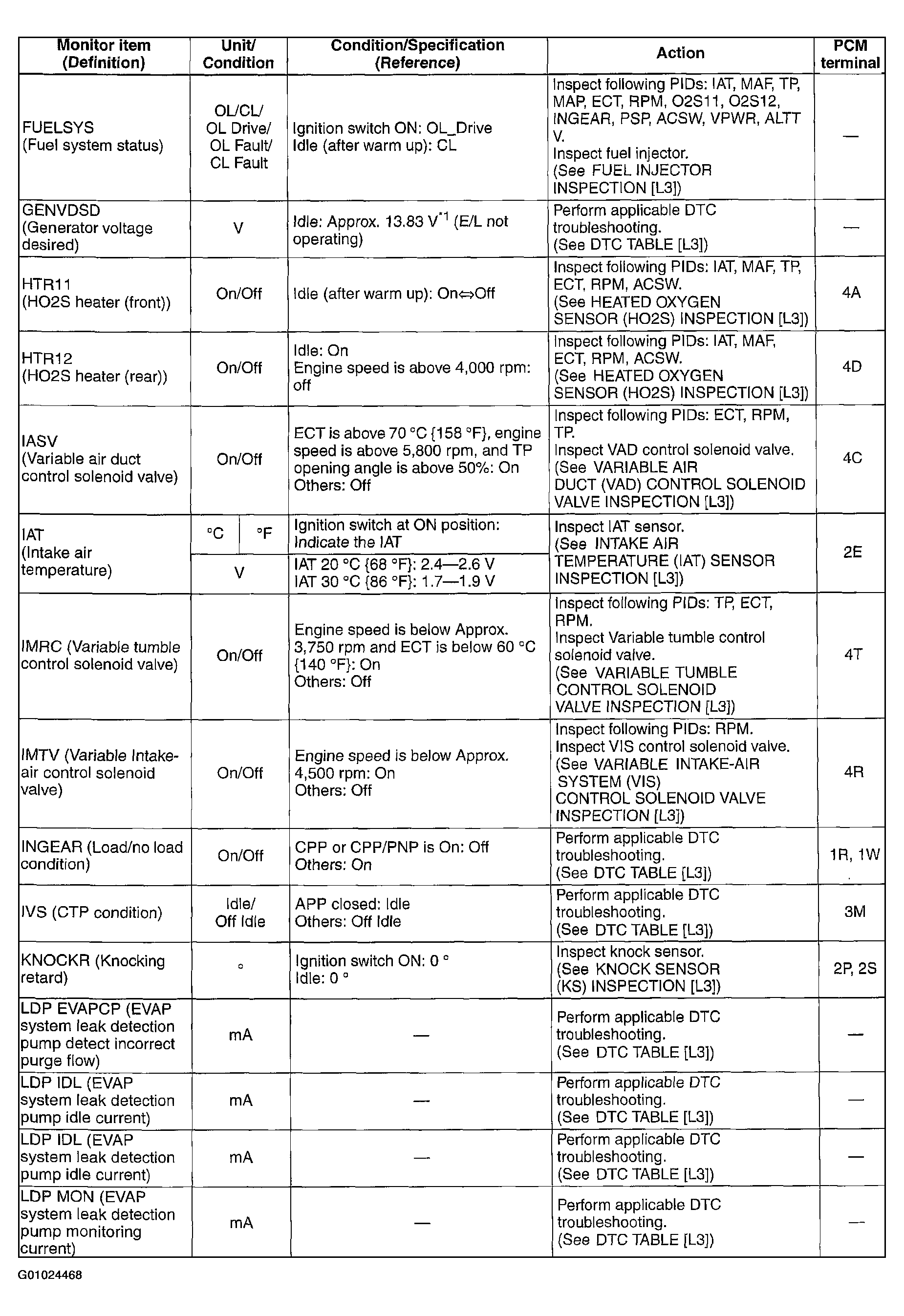

Fig 3: PID/DATA Monitor Reference Table (3 Of 6)

G01024468

Courtesy of MAZDA MOTORS CORP.

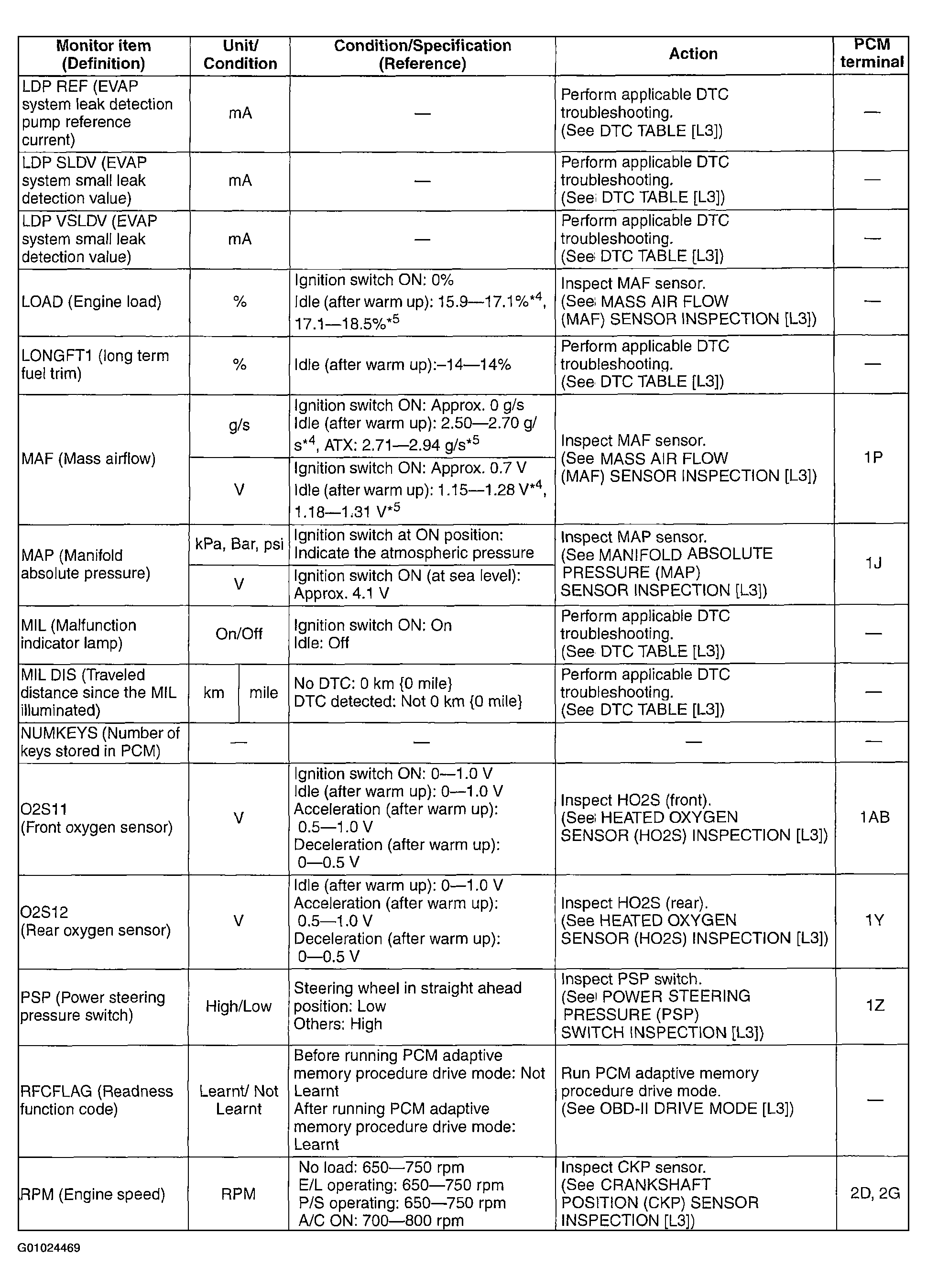

Fig 4: PID/DATA Monitor Reference Table (4 Of 6)

G01024469

Courtesy of MAZDA MOTORS CORP.

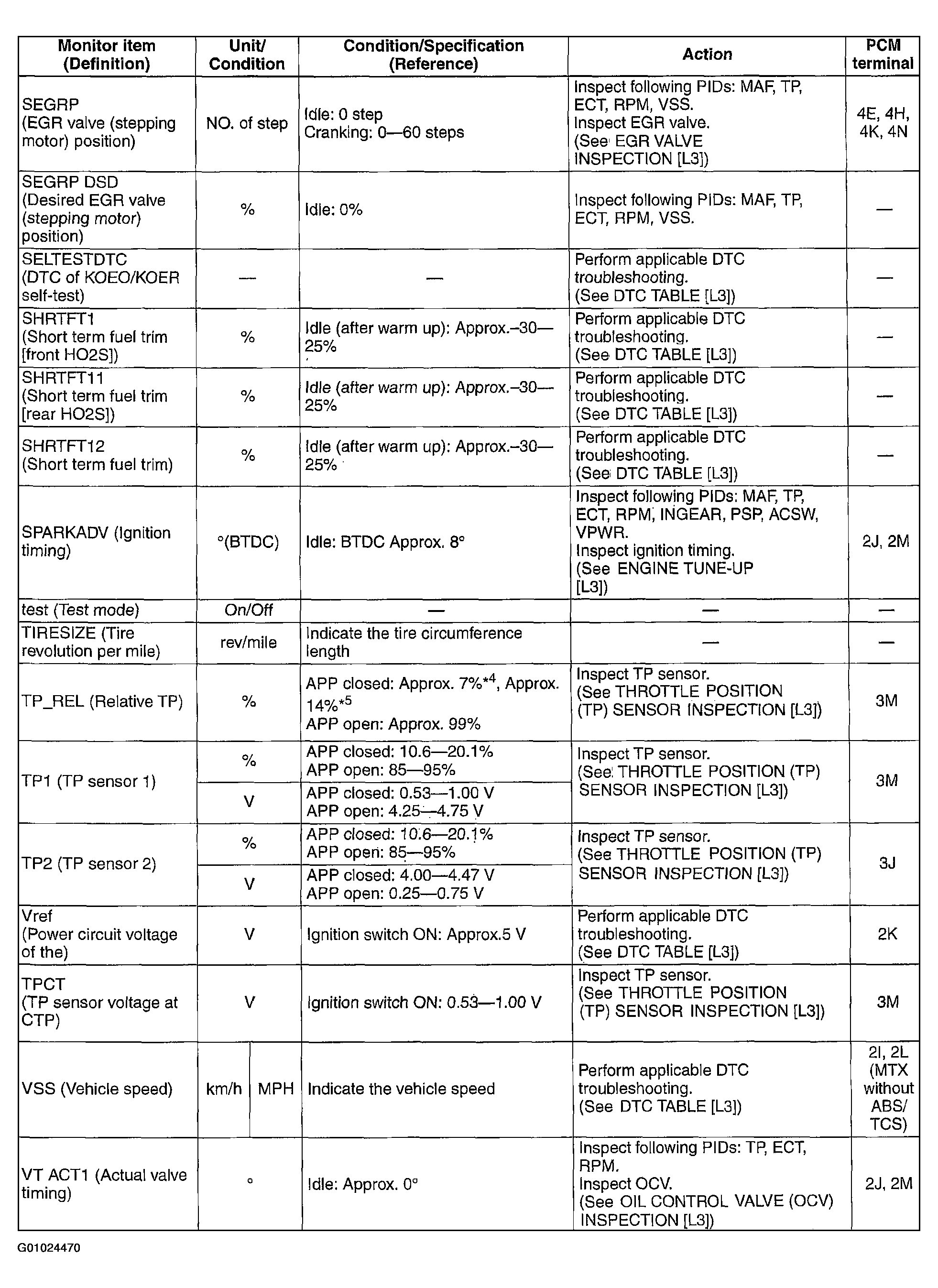

Fig 5: PID/DATA Monitor Reference Table (5 Of 6)

G01024470

Courtesy of MAZDA MOTORS CORP.

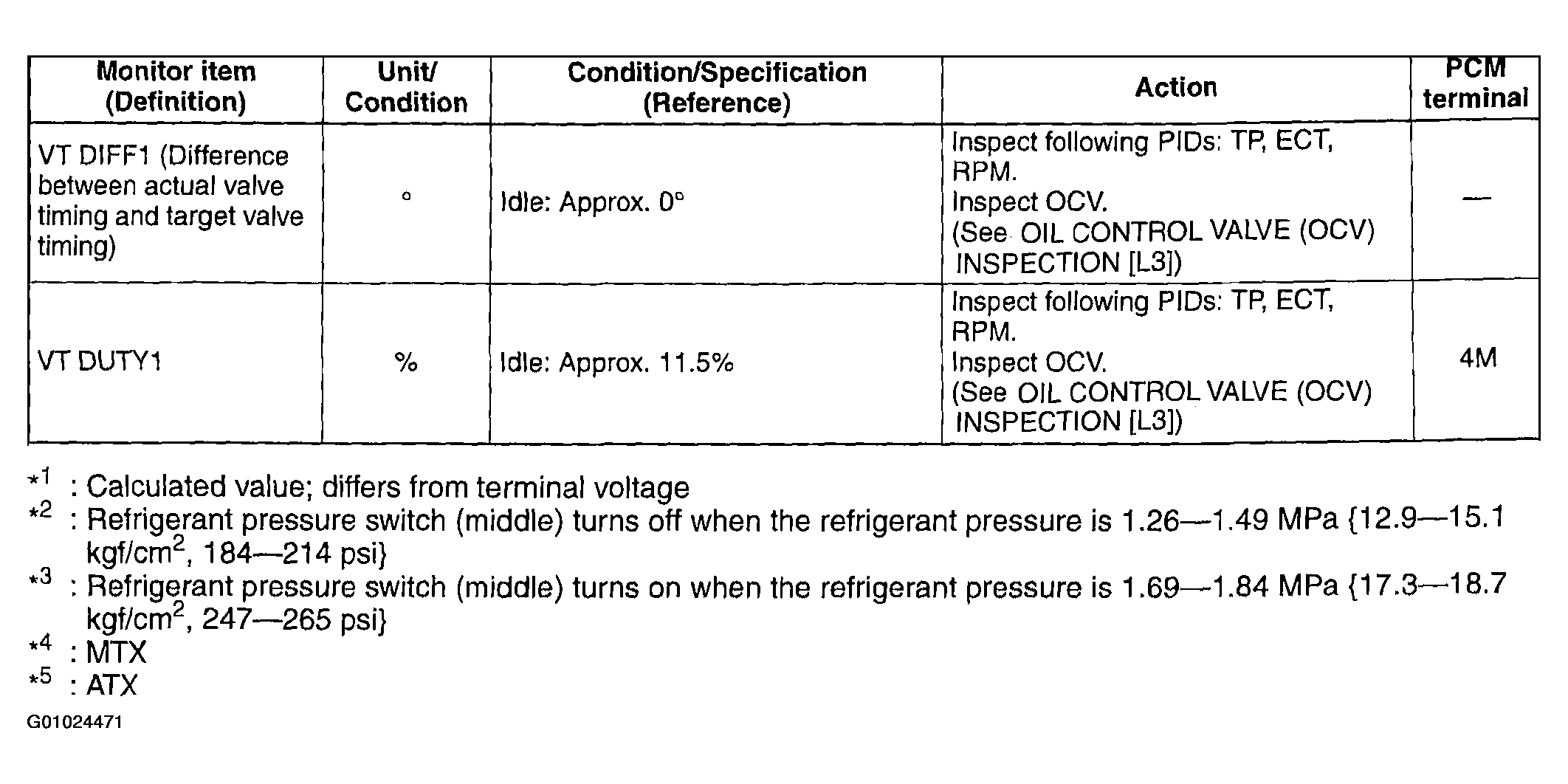

Fig 6: PID/DATA Monitor Reference Table (6 Of 6)

G01024471

Courtesy of MAZDA MOTORS CORP.
