DTC P0610: Pcm Vehicle Options Error
>>
Diagnostic procedure
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic procedure

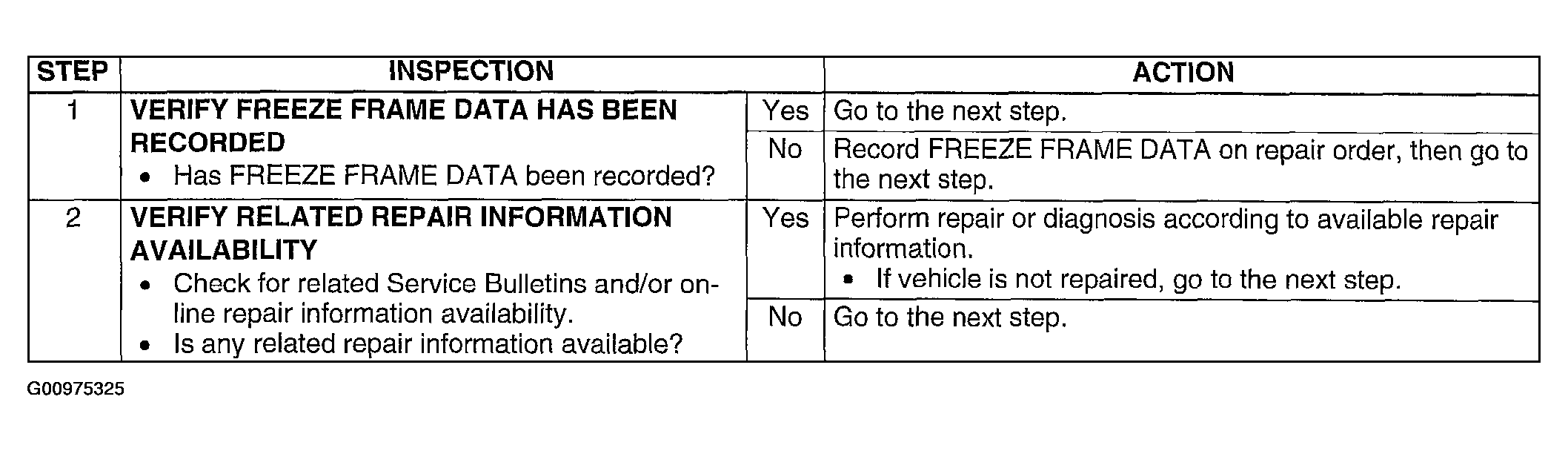

Fig 1: DTC P0610: Diagnostic Procedure Chart (Steps 1 & 2)
Courtesy of MAZDA MOTORS CORP.

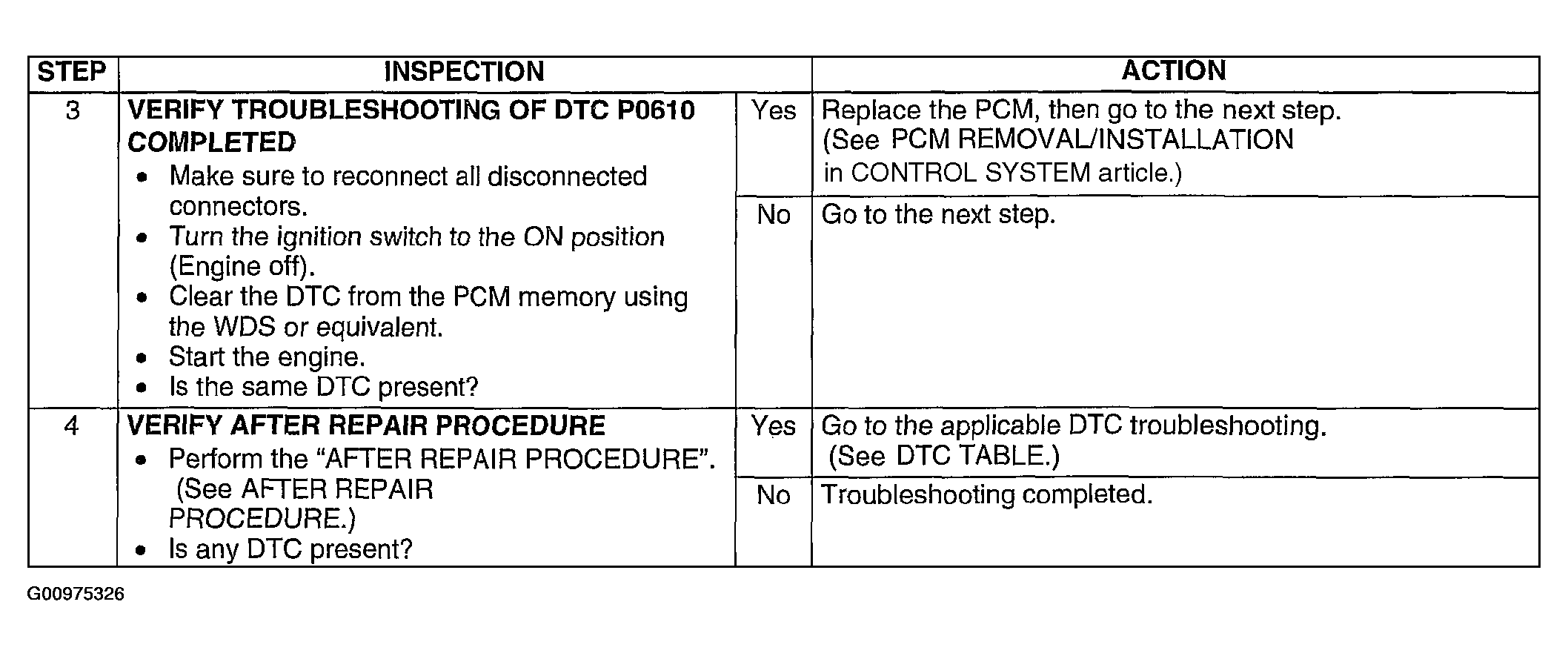

Fig 2: DTC P0610: Diagnostic Procedure Chart (Steps 3 & 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
