Sae Standards

In accordance with new regulations, SAE (Society of Automotive Engineers) standard names and abbreviations are now used in this manual. The table below lists the names and abbreviations that have been used in Mazda manuals up to now and their SAE equivalents.

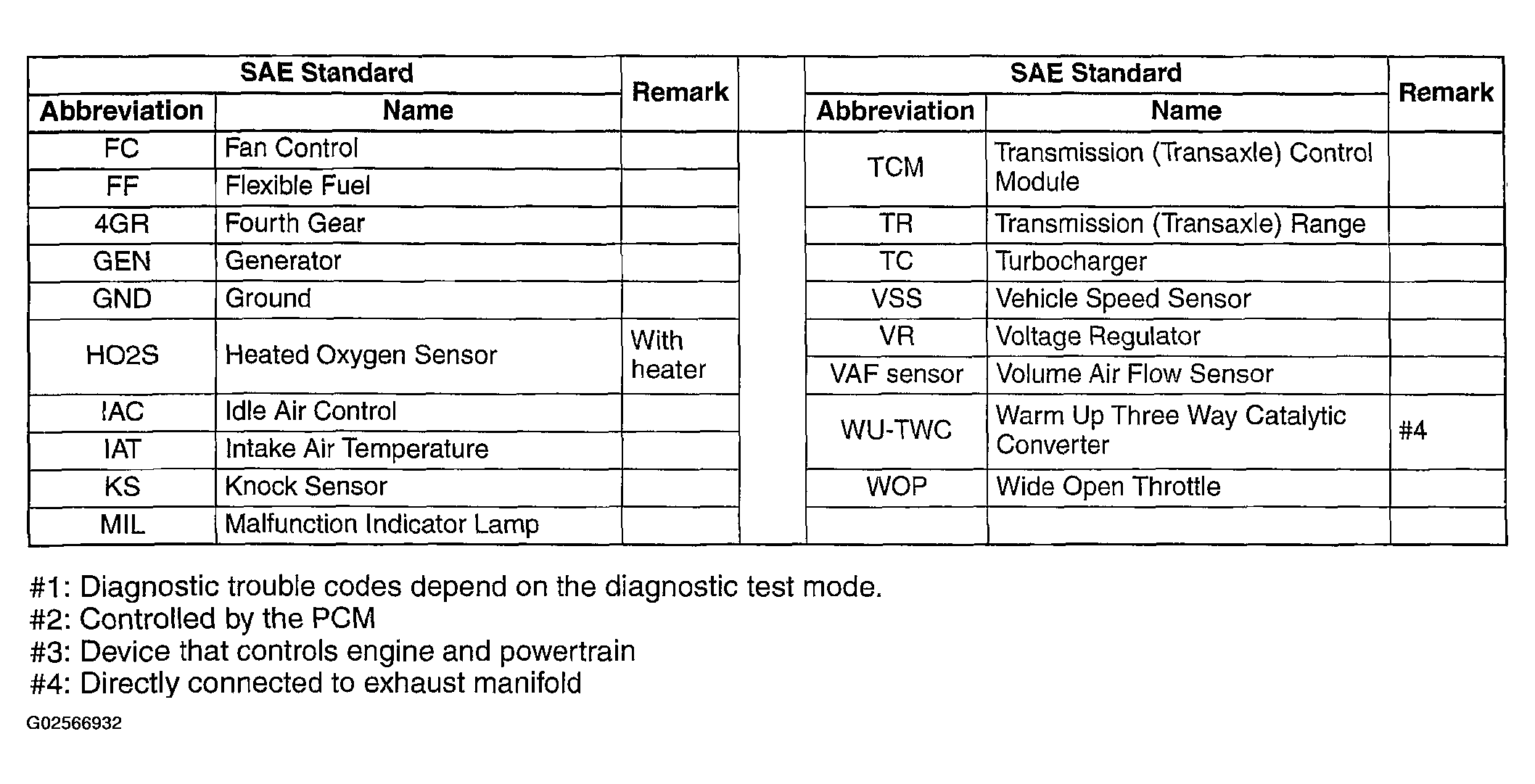

Fig 1: Identifying SAE Standards (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

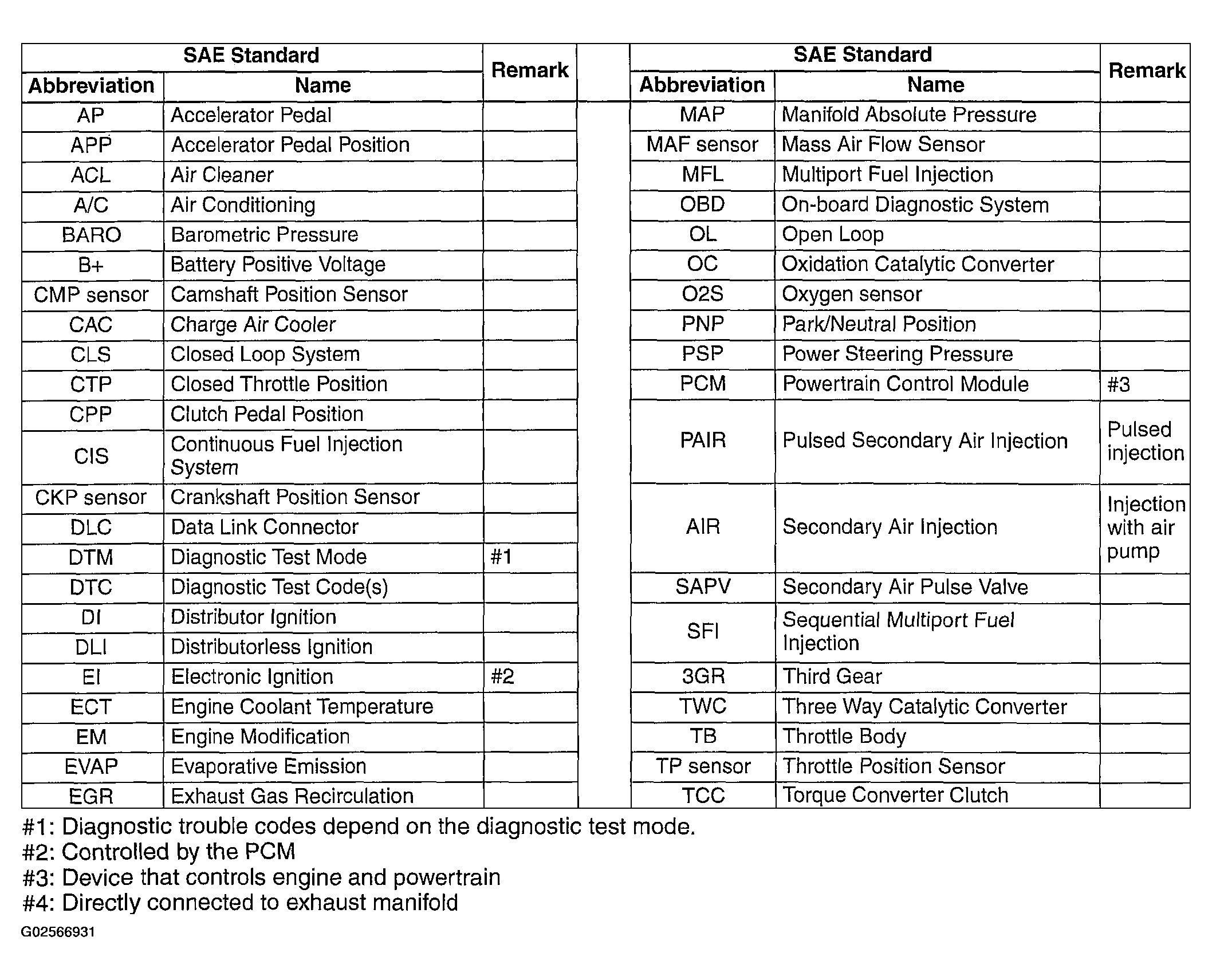

Fig 2: Identifying SAE Standards (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
