DTC P0171: Fuel Trim System Too Lean
>>
Diagnostic procedure
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic procedure

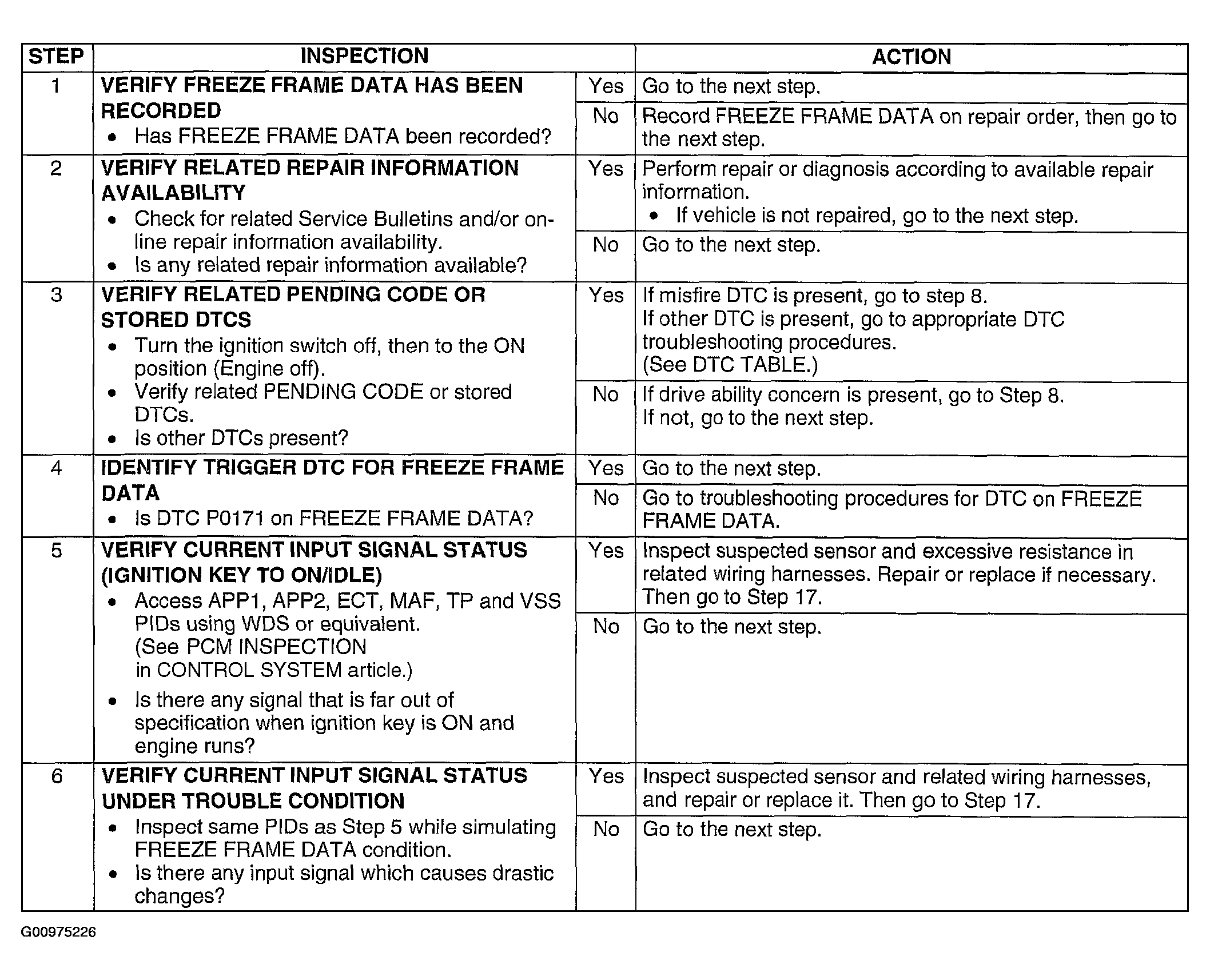

Fig 1: DTC P0171: Diagnostic Procedure Chart (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

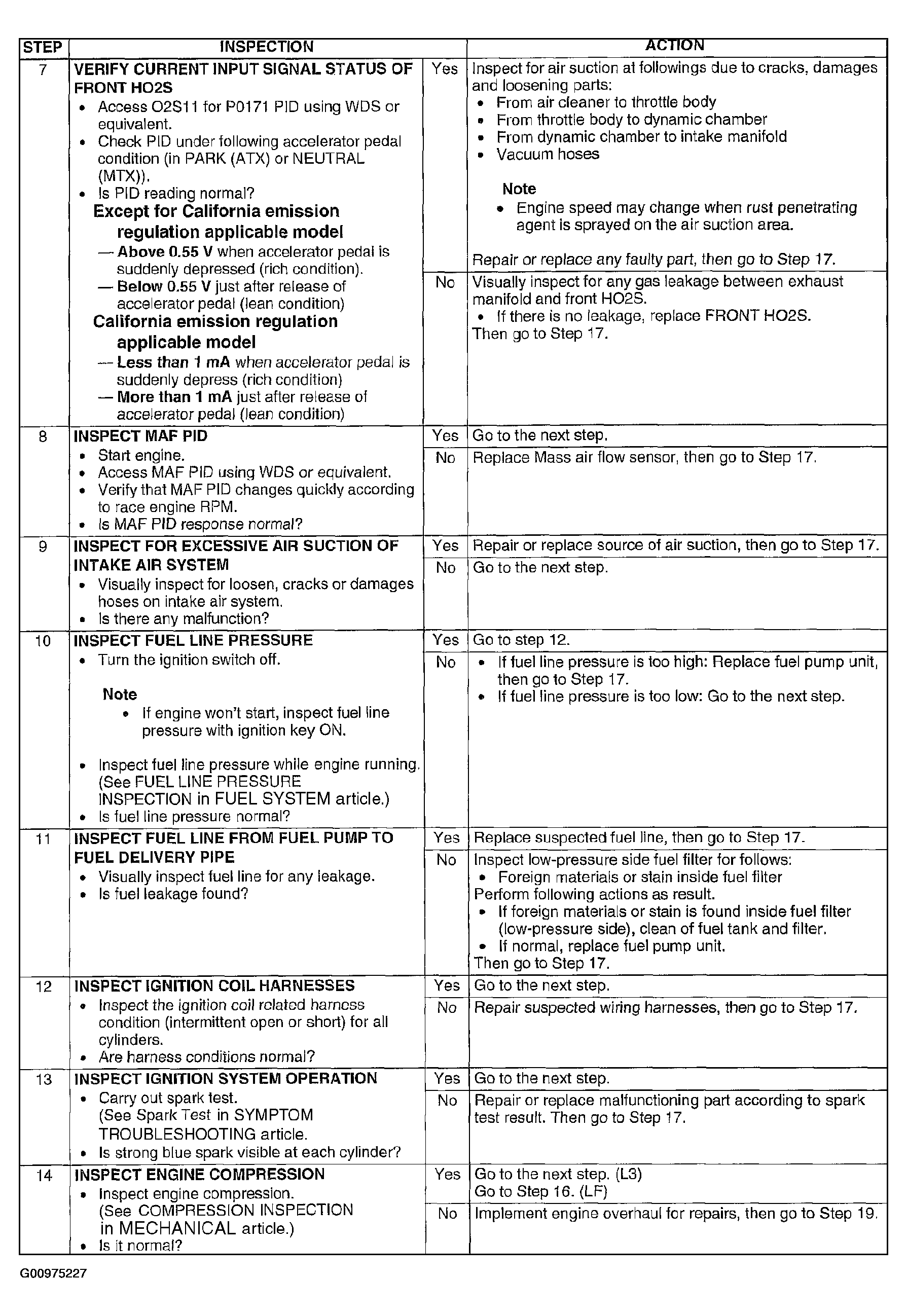

Fig 2: DTC P0171: Diagnostic Procedure Chart (Steps 7-14)
Courtesy of MAZDA MOTORS CORP.

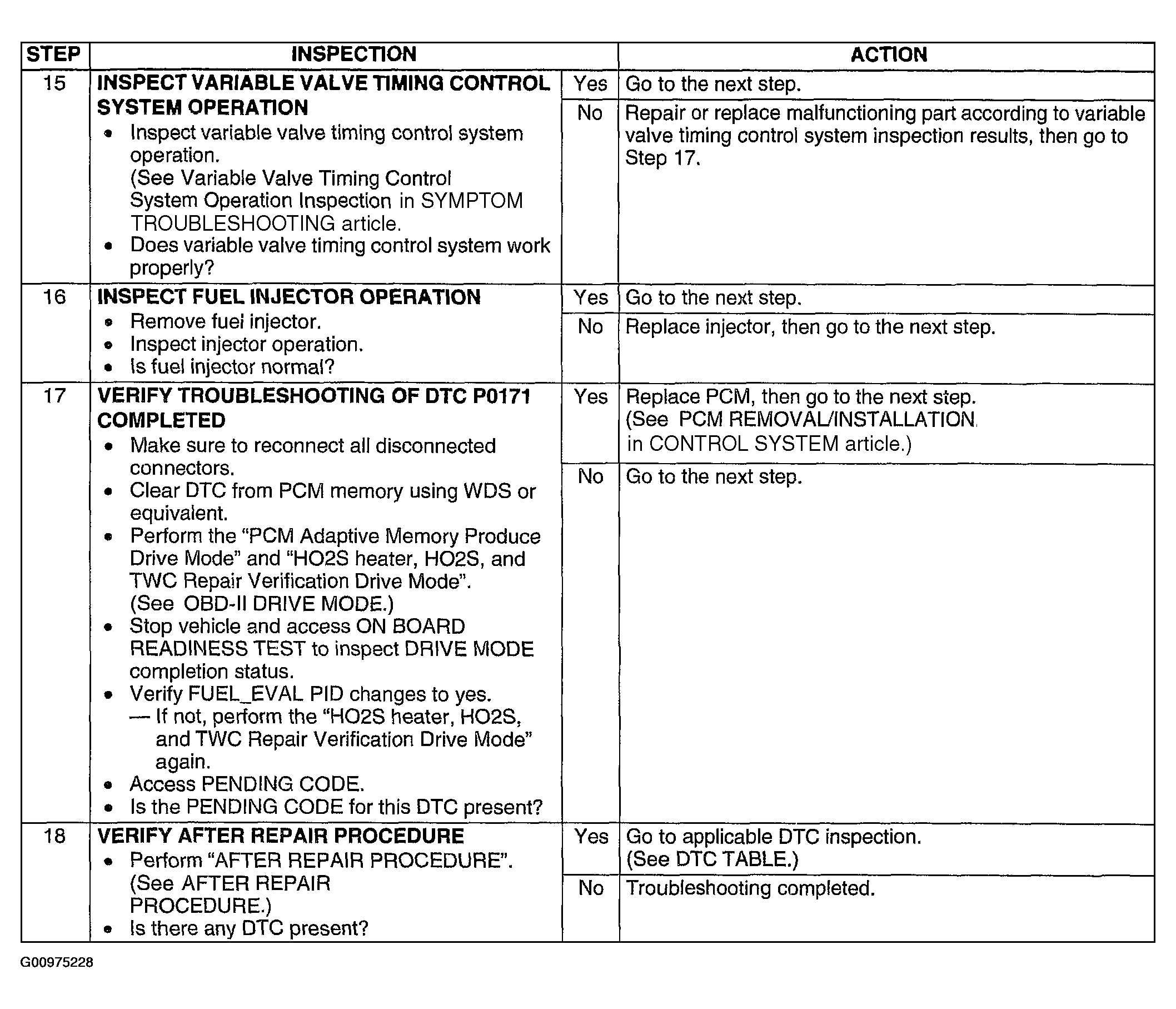

Fig 3: DTC P0171: Diagnostic Procedure Chart (Steps 15-18)
Courtesy of MAZDA MOTORS CORP.
